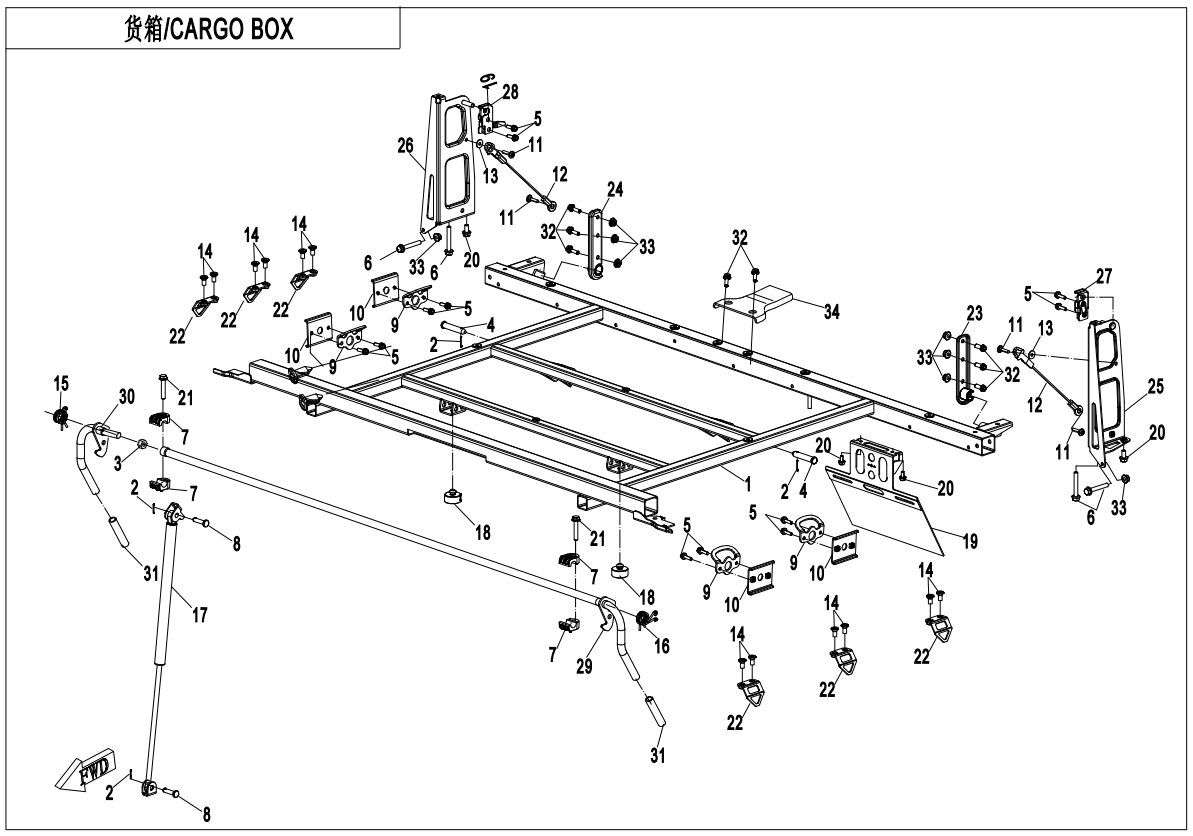

CARGO BOX - F22-2-V2

CARGO BOX - F22-2-V2

No.

01
P/N (SKU): 5HY0-221000-10000
Part Name: BASE FRAME ASSY
Effective: 2021-04-01
Alternative parts: 5HY#-221000-1000
Price: 140,00 € : 140,00 €
01
P/N (SKU): 5HY#-221000-1000
Part Name: BASE FRAME ASSY
Effective: 2021-04-01
Alternative parts: 5HY#-221000-1001
Price: 146,00 € : 146,00 €
02
P/N (SKU): 5HY0-220008
Part Name: R TYPE PIN SHAFT
Effective: 2021-04-01
Alternative parts: 5HY#-220008-1000
Price: 2,50 € : 2,50 €
02
P/N (SKU): 5HY#-220008-1000
Part Name: PIN SHAFT
Effective: 2021-04-01
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 30211-123810
Part Name: NUT M12x1.5
Effective: 2021-04-01
Alternative parts:
Specification: M12x1.5
Price: 3,00 € : 3,00 €
-+
04
P/N (SKU): 9030-220011-00001
Part Name: PIN SHAFT
Effective: 2021-04-01
Alternative parts:
Specification: COLOR ZINC TRIVALENT CHROMIUM
Price: 2,50 € : 2,50 €
-+
05
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2021-04-01
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
06
P/N (SKU): 30006-080055810
Part Name: BOLT
Effective: 2021-04-01
Alternative parts:
Specification: M8×55
Price: 2,00 € : 2,00 €
-+
07
P/N (SKU): 7030-221123
Part Name: COLLAR, ROTATE SHAFT
Effective: 2021-04-01
Alternative parts:
Price: 2,00 € : 2,00 €
-+
08
P/N (SKU): 7030-222251
Part Name: GAS SPRING PIN SHAFT
Effective: 2021-04-01
Alternative parts:
Price: 2,50 € : 2,50 €
-+
09
P/N (SKU): 9030-220004
Part Name: BAND HOOK
Effective: 2021-04-01
Alternative parts:
Price: 2,50 € : 2,50 €
-+
10
P/N (SKU): 7030-221140
Part Name: HOOK MOUNTING BRACKET
Effective: 2021-04-01
Alternative parts:
Price: 5,00 € : 5,00 €
-+
11
P/N (SKU): 7030-010508
Part Name: TAIL BOX CABLE BOLT
Effective: 2021-04-01
Alternative parts:
Price: 4,00 € : 4,00 €
-+
12
P/N (SKU): 7030-010500-10000
Part Name: TAIL BOX FIXING CABLE
Effective: 2021-04-01
Alternative parts:
Price: 14,00 € : 14,00 €
-+
13
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2021-04-01
Alternative parts:
Specification: φ6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 7030-220113
Part Name: BOLT M8x20
Effective: 2021-04-01
Alternative parts:
Specification: M8x20
Price: 2,00 € : 2,00 €
-+
15
P/N (SKU): 5HY0-220007
Part Name: RH TORSIONAL SPRING
Effective: 2021-04-01
Alternative parts: 5HYV-220007-1P00
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 5HY0-220006
Part Name: TORSIONAL SPRING, LH
Effective: 2021-04-01
Alternative parts: 5HYV-220006-1P00
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 5HY0-222080-30000
Part Name: LONG AIR SPRING
Effective: 2021-04-01
Alternative parts:
Price: 22,00 € : 22,00 €
-+
17
P/N (SKU): 5HY0-222080-20000
Part Name: AIR SPRING
Effective: 2021-04-01
Alternative parts:
Price: 21,00 € : 21,00 €
-+
18
P/N (SKU): 5HY0-220004
Part Name: RUBBER MAT
Effective: 2021-04-01
Alternative parts:
Price: 3,00 € : 3,00 €
-+
19
P/N (SKU): 5HY0-220001
Part Name: BRACKET, REAR LICENCE
Effective: 2021-04-01
Alternative parts: 5HY0-220001-10000
Price: 30,00 € : 30,00 €
19
P/N (SKU): 5HY0-220001-10000
Part Name: BRACKET, REAR LICENCE
Effective: 2021-04-01
Alternative parts: 5HY0-220001-20000
Price: 29,00 € : 29,00 €
20
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-04-01
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 30006-080045810
Part Name: BOLT
Effective: 2021-04-01
Alternative parts:
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
22
P/N (SKU): 5HY0-222010
Part Name: CARGO BOX HOOK ASSY
Effective: 2021-04-01
Alternative parts:
Price: 13,00 € : 13,00 €
-+
23
P/N (SKU): 5HY0-222020
Part Name: CARGO BOX DOOR LH BRACKET ASSY
Effective: 2021-04-01
Alternative parts:
Price: 27,00 € : 27,00 €
-+
24
P/N (SKU): 5HY0-222030-10000
Part Name: RH BRACKET, CARGO BOX DOOR
Effective: 2021-04-01
Alternative parts:
Price: 8,00 € : 8,00 €
-+
25
P/N (SKU): 5HY0-222040
Part Name: LEFT PROTECTION PLATE
Effective: 2021-04-01
Alternative parts:
Price: 41,00 € : 41,00 €
-+
26
P/N (SKU): 5HY0-222050
Part Name: RIGHT PROTECTION PLATE
Effective: 2021-04-01
Alternative parts:
Price: 41,00 € : 41,00 €
-+
27
P/N (SKU): 5HY0-222060
Part Name: LOCK, LH REAR DOOR
Effective: 2021-04-01
Alternative parts:
Price: 15,00 € : 15,00 €
-+
28
P/N (SKU): 5HY0-222070
Part Name: REAR RH DOOR LOCK
Effective: 2021-04-01
Alternative parts:
Price: 15,00 € : 15,00 €
-+
29
P/N (SKU): 5HY0-222110
Part Name: LH ROTATION SHAFT ASSY
Effective: 2021-04-01
Alternative parts:
Price: 38,00 € : 38,00 €
-+
29
P/N (SKU): 5HY0-222110-10000
Part Name: LH ROTATION SHAFT ASSY
Effective: 2021-04-01
Alternative parts:
Price: 20,00 € : 20,00 €
-+
30
P/N (SKU): 5HY0-222120
Part Name: RH ROTATION SHAFT ASSY
Effective: 2021-04-01
Alternative parts:
Price: 30,00 € : 30,00 €
-+
30
P/N (SKU): 5HY0-222120-10000
Part Name: RH ROTATION SHAFT ASSY
Effective: 2021-04-01
Alternative parts:
Price: 8,50 € : 8,50 €
-+
31
P/N (SKU): 7030-220104
Part Name: ROTATE SLEEVE
Effective: 2021-04-01
Alternative parts:
Price: 2,00 € : 2,00 €
-+
32
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-04-01
Alternative parts: 30006-080016810
Specification: M8×20
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-04-01
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 5HY0-220009
Part Name: CARGO BOX DOOR LIMIT PLATE
Effective: 2021-04-01
Alternative parts:
Price: 3,50 € : 3,50 €
-+
