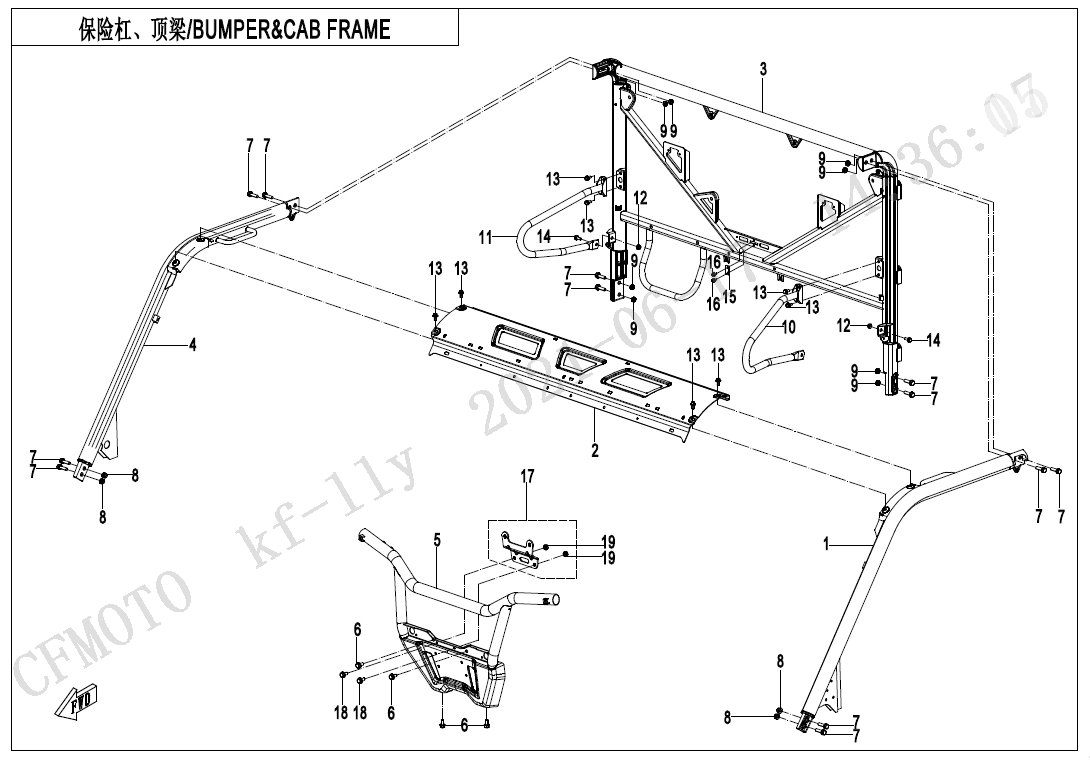

BUMPER @^ CAB FRAME - F23 | 2021, UTV, CF1000UTR-3 | CFMOTO

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 5HY0-230100-5B200

Part Name: LH FRAME, FRONT CAB

Effective: 2021-06-21

Alternative parts:

Price: 159,60 € : 159,60 €

02

P/N (SKU): 5HY0-230107-4B200

Part Name: MOUNTING PLATE, TOP ROOF

Effective: 2021-06-21

Alternative parts:

Price: 176,90 € : 176,90 €

03

P/N (SKU): 5HY0-230200-5B200

Part Name: REAR CAB ASSY

Effective: 2021-06-21

Alternative parts:

Price: 637,80 € : 637,80 €

04

P/N (SKU): 5HY0-230400-5B200

Part Name: RH FRAME, FRONT CAB

Effective: 2021-06-21

Alternative parts:

Price: 159,90 € : 159,90 €

05

P/N (SKU): 5HY0-231100-1B200

Part Name: BUMPER ASSY

Effective: 2021-06-21

Alternative parts:

Price: 111,10 € : 111,10 €

06

P/N (SKU): 30006-102020810

Part Name: BOLT M10x1.25x20

Effective: 2021-06-21

Alternative parts:

Specification: M10x1.25x20

Price: 0,95 € : 0,95 €

07

P/N (SKU): 30006-102035110

Part Name: BOLT M10x1.25x35

Effective: 2021-06-21

Alternative parts:

Specification: M10x1.25x35

Price: 0,95 € : 0,95 €

08

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Effective: 2021-06-21

Alternative parts:

Specification: M10x1.25

Price: 0,55 € : 0,55 €

09

P/N (SKU): 30225-102810

Part Name: NUT M10x1.25

Effective: 2021-06-21

Alternative parts:

Specification: M10x1.25

Price: 0,95 € : 0,95 €

10

P/N (SKU): 5HY0-230410-1B200

Part Name: LH PROTECTION PIPE, PASSENGER

Effective: 2021-06-21

Alternative parts:

Price: 47,30 € : 47,30 €

11

P/N (SKU): 5HY0-230420-1B200

Part Name: RH PROTECTION PIPE, PASSENGER

Effective: 2021-06-21

Alternative parts:

Price: 32,60 € : 32,60 €

12

P/N (SKU): 30204-080810

Part Name: NUT M8

Effective: 2021-06-21

Alternative parts:

Specification: M8

Price: 0,85 € : 0,85 €

13

P/N (SKU): 30006-080016810

Part Name: BOLT M8x16

Effective: 2021-06-21

Alternative parts:

Specification: M8x16

Price: 0,55 € : 0,55 €

14

P/N (SKU): 30006-080020810

Part Name: BOLT M8x20

Effective: 2021-06-21

Alternative parts:

Specification: M8x20

Price: 0,85 € : 0,85 €

15

P/N (SKU): 5HY0-230520

Part Name: FIXING SEAT, MIDDLE BACKREST

Effective: 2021-06-21

Alternative parts:

Price: 6,60 € : 6,60 €

16

P/N (SKU): 30006-060012870

Part Name: BOLT M6x12

Effective: 2021-06-21

Alternative parts:

Specification: M6x12

Price: 0,55 € : 0,55 €

17

P/N (SKU): 5HY0-230010

Part Name: REINFORCEMENT BRACKET, WINCH BRACKET

Effective: 2021-06-21

Alternative parts:

Price: 56,00 € : 56,00 €

18

P/N (SKU): 30102-102020810

Part Name: SCREW M10x1.25x20

Effective: 2021-06-21

Alternative parts:

Specification: M10x1.25x20

Price: 2,05 € : 2,05 €

19

P/N (SKU): 30200-102810

Part Name: NUT M10x1.25

Effective: 2021-06-21

Alternative parts: 30200-102800

Specification: M10x1.25

Price: 0,55 € : 0,55 €
