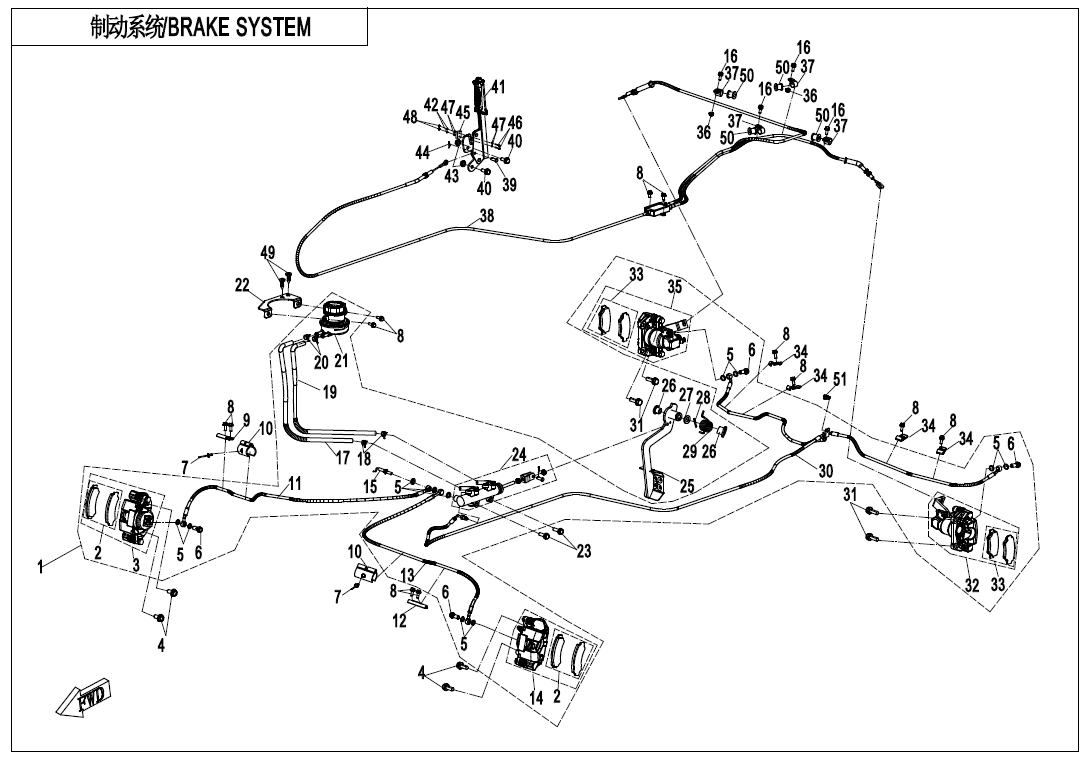

BRAKE SYSTEM - F08 | 2021, UTV, CF1000UTR-3

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 5HY0-081000-30000

Part Name: HYDRAULIC BRAKE ASSY

Alternative parts:

Price: 901,00 € : 901,00 €

P/N (SKU): 9AWA-0811A0

Part Name: BRAKE PAD ASSY

Alternative parts:

Price: 46,00 € : 46,00 €

P/N (SKU): 9AWA-081200

Part Name: FRONT BRAKE CALIPER, RH

Alternative parts:

Price: 98,00 € : 98,00 €

P/N (SKU): 30006-102025810

Part Name: BOLT M10x1.25x25

Alternative parts:

Specification: M10x1.25x25

Price: 1,50 € : 1,50 €

P/N (SKU): 901B-080102

Part Name: WASHER

Alternative parts: 0010-060010

Specification: 80

Price: 1,50 € : 1,50 €

P/N (SKU): 7020-081004

Part Name: BANJO BOLT

Alternative parts:

Price: 3,50 € : 3,50 €

P/N (SKU): 30902-0400820

Part Name: BLIND RIVET

Alternative parts: 30902-0401320

Specification: 4x8

Price: 1,50 € : 1,50 €

P/N (SKU): 30006-060016810

Part Name: BOLT M6x16

Alternative parts: 30006-060016870

Specification: M6x16

Price: 1,50 € : 1,50 €

P/N (SKU): 5HY0-080004

Part Name: CLIP, FRONT RH BRAKE FLUID PIPE

Alternative parts:

Price: 2,00 € : 2,00 €

P/N (SKU): 9AWA-080001

Part Name: PLASTIC CLASP

Alternative parts:

Price: 2,50 € : 2,50 €

P/N (SKU): 5HY0-081020

Part Name: FLUID PIPE, FRONT RH BRAKE

Alternative parts:

Price: 43,00 € : 43,00 €

P/N (SKU): 5HY0-080003

Part Name: CLIP, FRONT LH BRAKE FLUID PIPE

Alternative parts:

Price: 2,00 € : 2,00 €

P/N (SKU): 5HY0-081010-00001

Part Name: FLUID PIPE, FRONT LH BRAKE

Alternative parts: 5HY0-081010

Price: 35,00 € : 35,00 €

P/N (SKU): 9AWA-081100

Part Name: FRONT BRAKE CALIPER, LH

Alternative parts:

Price: 98,00 € : 98,00 €

P/N (SKU): 5HY0-080010-20000

Part Name: HYDRAULIC INDUCTION SWITCH

Alternative parts:

Price: 18,00 € : 18,00 €

P/N (SKU): 30006-060012810

Part Name: BOLT M6x12

Alternative parts: 30006-060012870

Specification: M6x12

Price: 1,50 € : 1,50 €

P/N (SKU): 5UWB-081002

Part Name: FLUID RESERVOIR HOSE 2

Alternative parts:

Price: 5,00 € : 5,00 €

P/N (SKU): 7020-081002

Part Name: PIPE CLIP, MASTER CYLINDER

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 5UWB-081001

Part Name: FLUID RESERVOIR HOSE 1

Alternative parts:

Price: 5,00 € : 5,00 €

P/N (SKU): 9010-080405

Part Name: CLAMP

Alternative parts:

Price: 2,00 € : 2,00 €

P/N (SKU): 5BW1-080150-20000

Part Name: RESERVOIR ASSY

Alternative parts:

Price: 39,00 € : 39,00 €

P/N (SKU): 5UWB-030110

Part Name: BRACKET, OIL CUP

Alternative parts:

Price: 15,00 € : 15,00 €

P/N (SKU): 30006-080025810

Part Name: BOLT

Alternative parts:

Specification: M8x25

Price: 1,50 € : 1,50 €

P/N (SKU): 5BWB-081100-00002

Part Name: MASTER PUMP ASSY

Alternative parts: "

Price: 90,00 € : 90,00 €

P/N (SKU): 5HY0-082000

Part Name: BRAKE PEDAL ASSY

Alternative parts:

Price: 22,00 € : 22,00 €

P/N (SKU): 9060-105002

Part Name: BUSHING

Alternative parts:

Price: 2,00 € : 2,00 €

P/N (SKU): 30306-120112

Part Name: WASHER

Alternative parts:

Specification: 12

Price: 1,50 € : 1,50 €

P/N (SKU): 30903-0322240

Part Name: COTTER PIN

Alternative parts: 30903-0322210

Specification: 3.2x22

Price: 1,50 € : 1,50 €

P/N (SKU): 9060-080003

Part Name: RETURN SPRING

Alternative parts:

Price: 3,00 € : 3,00 €

P/N (SKU): 5HY0-081030

Part Name: REAR BRAKE FLUID HOSE

Alternative parts:

Price: 107,00 € : 107,00 €

P/N (SKU): 30006-102030810

Part Name: BOLT M10x1.25x30

Alternative parts:

Specification: M10x1.25x30

Price: 1,50 € : 1,50 €

P/N (SKU): 5HY0-081100

Part Name: REAR BRAKE CALIPER, LH

Alternative parts:

Price: 267,00 € : 267,00 €

P/N (SKU): 5HY0-0811A0

Part Name: REAR BRAKE PAD ASSY

Alternative parts:

Price: 35,00 € : 35,00 €

P/N (SKU): 5HY0-080002

Part Name: WIRE CLIP, REAR BRAKE FLUID HOSE

Alternative parts:

Price: 2,00 € : 2,00 €

P/N (SKU): 5HY0-081200

Part Name: REAR BRAKE CALIPER, RH

Alternative parts:

Price: 267,00 € : 267,00 €

P/N (SKU): 30202-060110

Part Name: NUT M6

Alternative parts: 30204-060810

Specification: M6

Price: 1,50 € : 1,50 €

P/N (SKU): 9010-080104

Part Name: CIRCLIP

Alternative parts:

Price: 2,00 € : 2,00 €

P/N (SKU): 5HY0-082200-10000

Part Name: PARKING CABLE

Alternative parts:

Price: 41,00 € : 41,00 €

P/N (SKU): 30904-0602011

Part Name: PIN SHAFT

Alternative parts: 30904-0602010

Specification: 6x20 COLOR ZINC

Price: 2,00 € : 2,00 €

P/N (SKU): 30006-080020810

Part Name: BOLT M8x20

Alternative parts:

Specification: M8x20

Price: 1,50 € : 1,50 €

P/N (SKU): 5HY0-083100

Part Name: HAND BRAKE

Alternative parts:

Price: 79,00 € : 79,00 €

P/N (SKU): 30303-020900

Part Name: WASHER

Alternative parts:

Specification: 2

Price: 1,50 € : 1,50 €

P/N (SKU): 30204-080810

Part Name: NUT M8

Alternative parts:

Specification: M8

Price: 1,50 € : 1,50 €

P/N (SKU): 30903-0162510

Part Name: COTTER PIN

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 7000-082210-20000

Part Name: MICRO SWITCH

Alternative parts:

Price: 15,00 € : 15,00 €

P/N (SKU): 30105-020016700

Part Name: SCREW M2x16

Alternative parts:

Specification: M2x16

Price: 1,50 € : 1,50 €

P/N (SKU): 30306-020800

Part Name: WASHER

Alternative parts:

Specification: 2

Price: 1,50 € : 1,50 €

P/N (SKU): 30200-020500

Part Name: NUT M2

Alternative parts:

Specification: M2

Price: 1,50 € : 1,50 €

P/N (SKU): 30110-420130010

Part Name: SELF-TAPPING SCREW ST4.2x13

Alternative parts: 30110-421130010

Specification: ST4.2x13

Price: 1,50 € : 1,50 €

P/N (SKU): 9AWA-080003

Part Name: FIXING RUBBER SLEEVE

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 30102-060016810

Part Name: SCREW

Alternative parts:

Price: 1,50 € : 1,50 €
