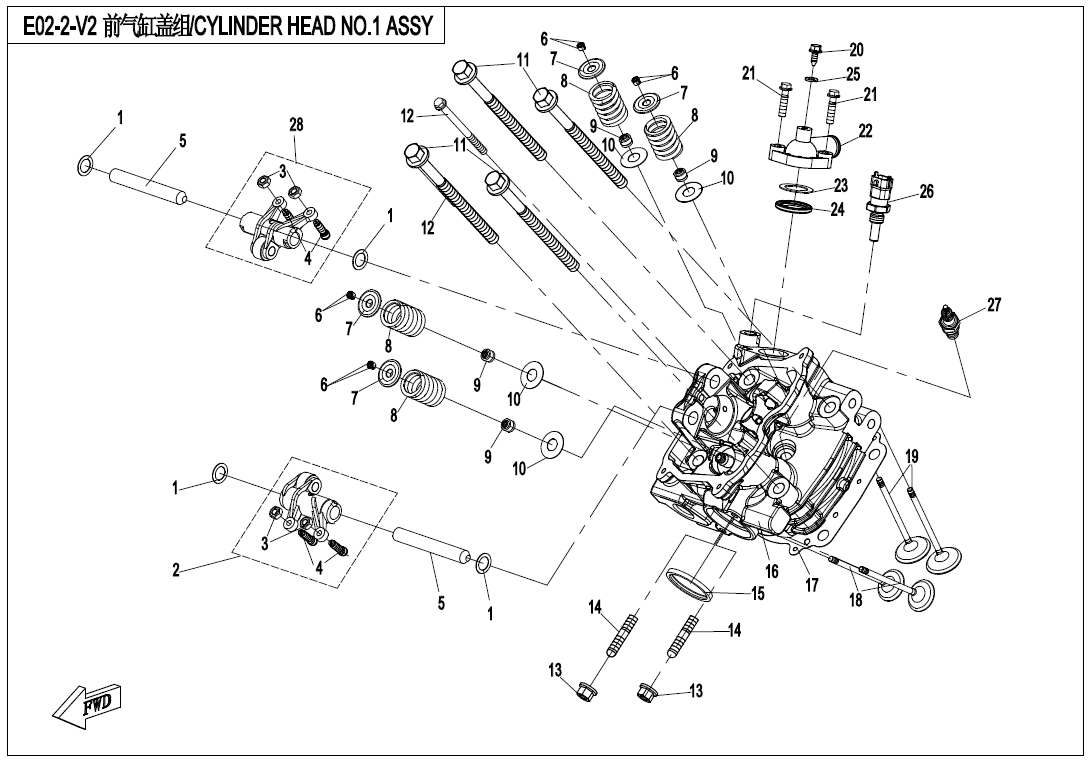

CYLINDER HEAD NO.1 ASSY - E02-2

CYLINDER HEAD NO.1 ASSY - E02-2

No.

01
P/N (SKU): 0800-022002
Part Name: WASHER 12.3x18.5x0.5
Effective: 2021-02-26
Alternative parts:
Specification: 12.3x18.5x0.5
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 0800-022600-20000
Part Name: ROCKER ARM ASSY, AIR EXHAUST
Effective: 2021-02-26
Alternative parts:
Price: 27,50 € : 27,50 €
-+
03
P/N (SKU): 0800-022506
Part Name: ADJUST NUT, VALVE CLEARANCE
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 0800-022510
Part Name: ADJUST SCREW, VALVE CLEARANCE
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
05
P/N (SKU): 0800-022001
Part Name: ROCKER ARM SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 3,30 € : 3,30 €
-+
06
P/N (SKU): 0800-022016
Part Name: LOCK CLIP, VALVE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0800-022007
Part Name: UPPER SEAT, VALVE SPRING
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0800-022006
Part Name: SPRING, VALVE
Effective: 2021-02-26
Alternative parts: 0800-022006-10000
Price: 1,50 € : 1,50 €
08
P/N (SKU): 0800-022006-10000
Part Name: VALVE SPRING
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0010-022500-10000
Part Name: SEAL RING, VALVE STEM
Effective: 2021-02-26
Alternative parts:
Price: 1,55 € : 1,55 €
-+
10
P/N (SKU): 0800-022008
Part Name: LOWER SEAT, VALVE SPRING
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
11
P/N (SKU): 0JY0-022003-00001
Part Name: BOLT, CYLINDER
Effective: 2021-02-26
Alternative parts:
Price: 2,60 € : 2,60 €
-+
12
P/N (SKU): 0060-013021-0030
Part Name: BOLT M6x85
Effective: 2021-02-26
Alternative parts: 0060-013021-00001
Specification: M6x85
Price: 0,95 € : 0,95 €
-+
13
P/N (SKU): 0010-011700-0010
Part Name: FLANGE NUT M8
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 0180-022003-00001
Part Name: STUD M8x42
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
15
P/N (SKU): 0800-022300
Part Name: BUSHING, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 3,30 € : 3,30 €
-+
16
P/N (SKU): 0JY0-022100-10001
Part Name: CYLINDER HEAD
Effective: 2021-02-26
Alternative parts:
Price: 191,30 € : 191,30 €
-+
17
P/N (SKU): 0800-022200
Part Name: GASKET, CYLINDER HEAD
Effective: 2021-02-26
Alternative parts:
Price: 17,80 € : 17,80 €
-+
17
P/N (SKU): 0800-022200-00002
Part Name: GASKET, CYLINDER HEAD
Effective: 2021-06-16
Alternative parts:
Price: 12,50 € : 12,50 €
-+
18
P/N (SKU): 0800-022005
Part Name: VALVE, EXHAUST
Effective: 2021-02-26
Alternative parts:
Price: 12,20 € : 12,20 €
-+
19
P/N (SKU): 0800-022004
Part Name: VALVE, INTAKE
Effective: 2021-02-26
Alternative parts:
Price: 12,20 € : 12,20 €
-+
20
P/N (SKU): 30132-550160030
Part Name: SCREW ST5.5x16
Effective: 2021-02-26
Alternative parts:
Specification: ST5.5x16
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2021-02-26
Alternative parts:
Specification: M6x25
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 0800-022013-10000
Part Name: THERMOSTAT CAP
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
23
P/N (SKU): 0800-026002
Part Name: WASHER 20.5x30x0.8
Effective: 2021-02-26
Alternative parts:
Specification: 20.5x30x0.8
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 0010-022802
Part Name: SEAL RING
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
25
P/N (SKU): 0800-022011
Part Name: WASHER 5.3x11x1.5
Effective: 2021-02-26
Alternative parts:
Specification: 5.3x11x1.5
Price: 0,55 € : 0,55 €
-+
26
P/N (SKU): 018B-022810
Part Name: WATER TEMPERATURE SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 26,50 € : 26,50 €
-+
27
P/N (SKU): 0800-022800
Part Name: SPARK PLUG
Effective: 2021-02-26
Alternative parts:
Price: 12,90 € : 12,90 €
-+
28
P/N (SKU): 0800-022500-20000
Part Name: ROCKER ARM ASSY, AIR INTAKE
Effective: 2021-02-26
Alternative parts:
Price: 26,40 € : 26,40 €
-+
