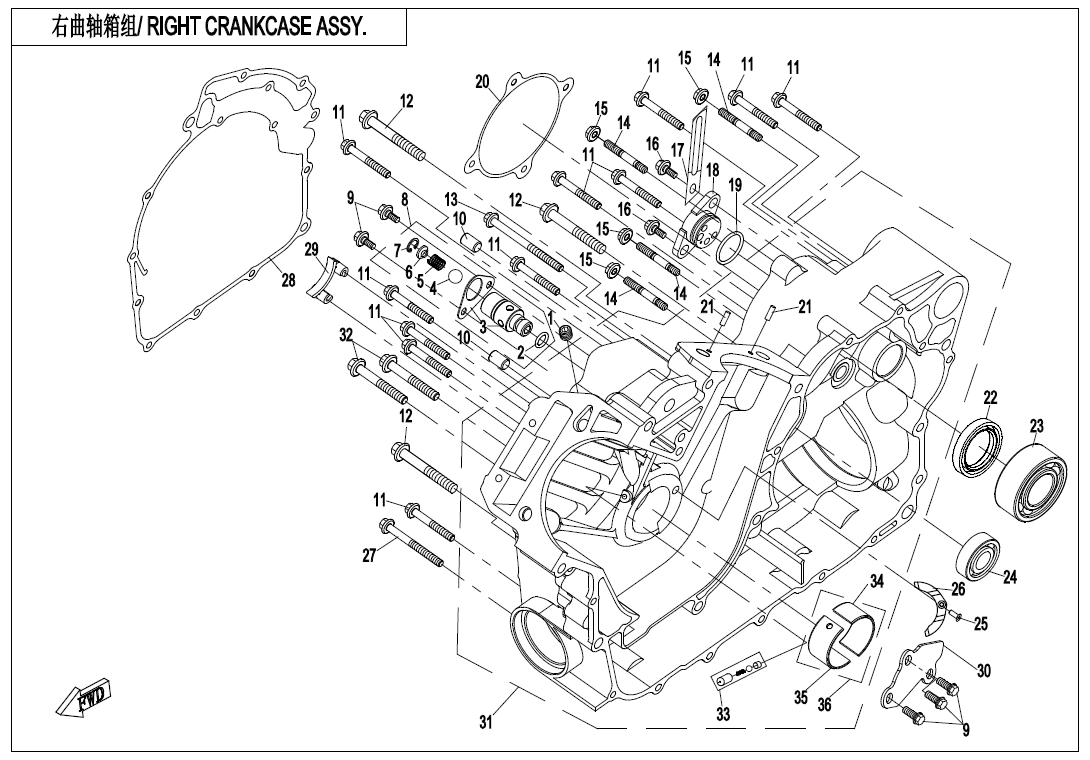

RIGHT CRANKCASE ASSY. - E01-2-V2

RIGHT CRANKCASE ASSY. - E01-2-V2

No.

01
P/N (SKU): 01A0-012010
Part Name: SCREW
Alternative parts: 01A0-012010-00001
Price: 1,00 € : 1,00 €
02
P/N (SKU): 0180-073002
Part Name: O-SEAL RING 10x2.3
Alternative parts:
Price: 1,00 € : 1,00 €
-+
03
P/N (SKU): 0800-073100-00001
Part Name: BODY,RELIEF VALVE
Alternative parts:
Specification: COLOR ZINC TRIVALENT CHROMIUM
Price: 25,50 € : 25,50 €
-+
04
P/N (SKU): 3120006
Part Name: STEEL BALL 9
Alternative parts:
Specification: 9
Price: 1,00 € : 1,00 €
-+
05
P/N (SKU): 0700-012603-1000
Part Name: SPRING, RELIEF VALVE
Alternative parts:
Price: 2,20 € : 2,20 €
-+
06
P/N (SKU): 0800-073004
Part Name: SPRING SEAT, RELIEF VALVE
Alternative parts:
Price: 1,00 € : 1,00 €
-+
07
P/N (SKU): 30800-01405
Part Name: CIRCLIP FOR HOLE 14
Alternative parts:
Specification: 14
Price: 1,00 € : 1,00 €
-+
08
P/N (SKU): 0800-073000-20001
Part Name: RELIEF VALVE ASSY
Alternative parts:
Specification: COLOR ZINC TRIVALENT CHROMIUM
Price: 17,42 € : 17,42 €
-+
09
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Alternative parts:
Specification: M6x12
Price: 1,00 € : 1,00 €
-+
10
P/N (SKU): 0010-021005
Part Name: DOWEL PIN Dia 10x14
Alternative parts:
Specification: Dia 10x14
Price: 1,00 € : 1,00 €
-+
11
P/N (SKU): 0180-013208-0010
Part Name: BOLT M6x45
Alternative parts:
Specification: M6x45
Price: 1,00 € : 1,00 €
-+
12
P/N (SKU): 0130-011109-0010
Part Name: BOLT M8x60
Alternative parts:
Specification: M8x60
Price: 1,80 € : 1,80 €
-+
13
P/N (SKU): 0800-022009
Part Name: BOLT M6x80
Alternative parts: 0800-022009-00001
Specification: M6x80
Price: 1,00 € : 1,00 €
-+
14
P/N (SKU): 30011-060030820
Part Name: STUD
Alternative parts:
Specification: AM6x30-8.8
Price: 1,80 € : 1,80 €
-+
15
P/N (SKU): 30204-060810
Part Name: NUT M6
Alternative parts:
Specification: M6
Price: 1,00 € : 1,00 €
-+
16
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Alternative parts:
Specification: M6x16
Price: 1,00 € : 1,00 €
-+
17
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Alternative parts:
Price: 1,00 € : 1,00 €
-+
18
P/N (SKU): 0800-012200
Part Name: GEAR SENSOR ASSY
Alternative parts:
Specification: ORDINARY
Price: 19,00 € : 19,00 €
-+
18
P/N (SKU): 0800-012200-1000
Part Name: GEAR SENSOR ASSY
Alternative parts:
Specification: SUMITOMO PLUG
Price: 28,00 € : 28,00 €
-+
19
P/N (SKU): 0180-023002
Part Name: O-SEAL RING 24x2.5
Alternative parts:
Specification: 24x2.5
Price: 1,00 € : 1,00 €
-+
20
P/N (SKU): 0800-012002
Part Name: GASKET(2), CVT CASE
Alternative parts:
Price: 3,30 € : 3,30 €
-+
21
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE P5x11.8
Alternative parts:
Specification: P5x11.8
Price: 1,00 € : 1,00 €
-+
22
P/N (SKU): 0180-012006
Part Name: OIL SEAL 30x45x7
Alternative parts: 0180-012006-00001
Specification: 30x45x7
Price: 5,50 € : 5,50 €
23
P/N (SKU): 30499-03000
Part Name: BEARING
Alternative parts:
Specification: 5206
Price: 66,10 € : 66,10 €
-+
24
P/N (SKU): 30400-01704
Part Name: BEARING
Alternative parts:
Specification: 17
Price: 12,30 € : 12,30 €
-+
25
P/N (SKU): 30122-040010850
Part Name: SCREW M4x10
Alternative parts:
Specification: M4x10
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 0800-011003
Part Name: THRUST WASHER, CRANKCASE
Alternative parts:
Price: 6,70 € : 6,70 €
-+
27
P/N (SKU): 0010-013010-0010
Part Name: BOLT M6x50
Alternative parts:
Specification: M6x50
Price: 1,00 € : 1,00 €
-+
28
P/N (SKU): 0800-012001
Part Name: GASKET 1, CVT CASE
Alternative parts:
Price: 6,10 € : 6,10 €
-+
29
P/N (SKU): 0800-011007
Part Name: CHAIN GUARD
Alternative parts:
Price: 1,60 € : 1,60 €
-+
30
P/N (SKU): 0800-012300
Part Name: COVER PLATE
Alternative parts:
Price: 2,70 € : 2,70 €
-+
31
P/N (SKU): 0800-012100-30020
Part Name: RH CRANKCASE ASSY
Alternative parts: 0800-012100-30010+0800-011102-0001+0800-011103-0001
Specification: GROUP B_FOR BLUE BEARING SLEEVE
Price: 224,20 € : 224,20 €
31
P/N (SKU): 0800-012100-30010
Part Name: RH CRANKCASE ASSY
Alternative parts:
Specification: GROUP A_FOR RED BEARING SLEEVE
Price: 224,20 € : 224,20 €
-+
32
P/N (SKU): 0040-012006-0010
Part Name: BOLT M8x50
Alternative parts:
Specification: M8X50
Price: 1,00 € : 1,00 €
-+
33
P/N (SKU): 0800-011400
Part Name: NOZZLE VALVE ASSY
Alternative parts:
Price: 8,40 € : 8,40 €
-+
34
P/N (SKU): 0800-011102-0002
Part Name: PLAIN BEARING 1
Alternative parts: 0800-011102-00021
Specification: BLUE@THICK
Price: 8,20 € : 8,20 €
34
P/N (SKU): 0800-011102-0001
Part Name: PLAIN BEARING 1
Alternative parts: 0800-011102-00011
Specification: RED@THIN
Price: 8,20 € : 8,20 €
35
P/N (SKU): 0800-011103-0001
Part Name: PLAIN BEARING 2
Alternative parts: 0800-011103-00011
Specification: RED@THIN
Price: 9,60 € : 9,60 €
-+
35
P/N (SKU): 0800-011103-0002
Part Name: PLAIN BEARING 2
Alternative parts: 0800-011103-00021
Specification: BLUE@THICK
Price: 7,00 € : 7,00 €
36
P/N (SKU): 0800-0111A0
Part Name: PLAIN BEARING KIT, MAIN SHAFT
Alternative parts:
Specification: RED
Price: 24,40 € : 24,40 €
-+
36
P/N (SKU): 0800-0111B0
Part Name: PLAIN BEARING KIT, MAIN SHAFT
Alternative parts:
Specification: BLUE
Price: 15,30 € : 15,30 €
-+
