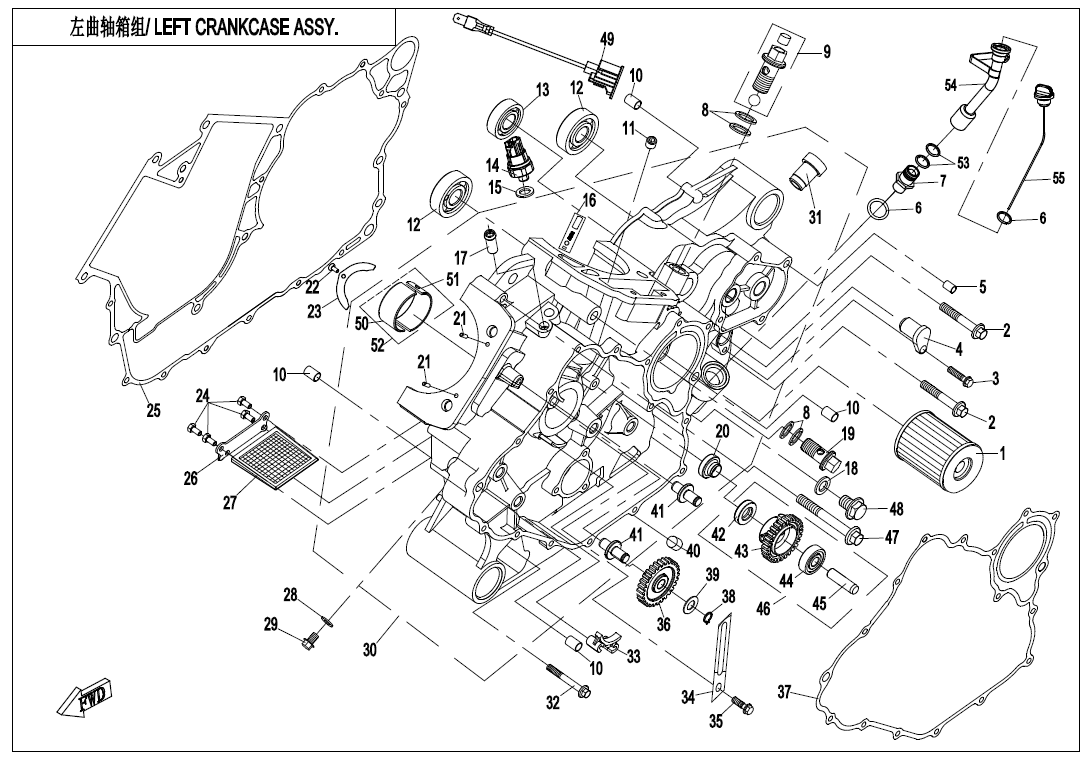

LEFT CRANKCASE ASSY. - E01-1-A-V4

LEFT CRANKCASE ASSY. - E01-1-A-V4

No.

01
P/N (SKU): 0800-011300-0004
Part Name: OIL FILTER ELEMENT
Alternative parts:
Price: 9,20 € : 9,20 €
-+
02
P/N (SKU): 0040-012006-0010
Part Name: BOLT M8x50
Alternative parts:
Specification: M8X50
Price: 1,00 € : 1,00 €
-+
03
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Alternative parts:
Specification: M6x16
Price: 1,00 € : 1,00 €
-+
04
P/N (SKU): 0130-011400
Part Name: PLUG, SEAL
Alternative parts:
Price: 1,00 € : 1,00 €
-+
05
P/N (SKU): 0800-014440-10000
Part Name: "OIL DIPSTICK ASSY
Alternative parts:
Specification: "
Price: 3,30 € : 3,30 €
-+
05
P/N (SKU): 0010-080008
Part Name: DOWEL PIN Dia 8x14
Alternative parts:
Specification: Dia 8x14
Price: 1,00 € : 1,00 €
-+
06
P/N (SKU): 0110-013030
Part Name: O-SEAL RING 18x3.55
Alternative parts:
Specification: 18x3.55
Price: 1,00 € : 1,00 €
-+
07
P/N (SKU): 0800-014430
Part Name: CONNECTOR, OIL DIPSTICK
Alternative parts:
Price: 2,70 € : 2,70 €
-+
08
P/N (SKU): 0180-011006
Part Name: GASKET 14
Alternative parts:
Specification: 14
Price: 1,00 € : 1,00 €
-+
09
P/N (SKU): 0800-011500
Part Name: JOINT BOLT ASSY
Alternative parts:
Price: 3,20 € : 3,20 €
-+
10
P/N (SKU): 0010-021005
Part Name: DOWEL PIN Dia 10x14
Alternative parts:
Specification: Dia 10x14
Price: 1,00 € : 1,00 €
-+
11
P/N (SKU): 0800-011013
Part Name: RESTRICTION PLUG
Alternative parts: 0800-011013-00001
Price: 1,00 € : 1,00 €
12
P/N (SKU): 30400-01701
Part Name: BEARING
Alternative parts:
Specification: 6303
Price: 7,70 € : 7,70 €
-+
13
P/N (SKU): 30400-01704
Part Name: BEARING
Alternative parts:
Specification: 17
Price: 12,30 € : 12,30 €
-+
14
P/N (SKU): 0800-012400
Part Name: OIL PRESSURE SWITCH
Alternative parts:
Price: 10,10 € : 10,10 €
-+
15
P/N (SKU): 0010-060010
Part Name: WASHER 10
Alternative parts:
Specification: 10
Price: 1,00 € : 1,00 €
-+
16
P/N (SKU): 0800-011400
Part Name: NOZZLE VALVE ASSY
Alternative parts:
Price: 8,40 € : 8,40 €
-+
17
P/N (SKU): 0010-013006-0010
Part Name: JOINT, BREATHER HOSE
Alternative parts:
Price: 1,80 € : 1,80 €
-+
18
P/N (SKU): 0010-021014
Part Name: WASHER 12
Alternative parts:
Specification: 12
Price: 1,70 € : 1,70 €
-+
19
P/N (SKU): 0180-011007-0010
Part Name: BOLT M14x1.5x32
Alternative parts:
Specification: M14x1.5x32
Price: 2,10 € : 2,10 €
-+
20
P/N (SKU): 0800-011105
Part Name: SEAT, BREATHER
Alternative parts:
Price: 3,70 € : 3,70 €
-+
21
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE P5x11.8
Alternative parts:
Specification: P5x11.8
Price: 1,00 € : 1,00 €
-+
22
P/N (SKU): 30122-040010850
Part Name: SCREW M4x10
Alternative parts:
Specification: M4x10
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 0800-011003
Part Name: THRUST WASHER, CRANKCASE
Alternative parts:
Price: 6,70 € : 6,70 €
-+
24
P/N (SKU): 0180-014004-00100
Part Name: BOLT, LEAD HOLDER
Alternative parts:
Price: 1,00 € : 1,00 €
-+
25
P/N (SKU): 0800-011001-10000
Part Name: GASKET, CRANKCASE
Alternative parts:
Price: 8,90 € : 8,90 €
-+
26
P/N (SKU): 0800-011008-1000
Part Name: PLATE, OIL STRAINER
Alternative parts:
Price: 2,40 € : 2,40 €
-+
27
P/N (SKU): 0800-011009
Part Name: OIL STRAINER
Alternative parts:
Price: 3,00 € : 3,00 €
-+
28
P/N (SKU): 0010-023305
Part Name: WASHER 8.5
Alternative parts:
Specification: 8.5
Price: 1,30 € : 1,30 €
-+
29
P/N (SKU): 0180-332002-0010
Part Name: BOLT M8x12.5, FLANGE
Alternative parts:
Specification: M8x12.5
Price: 1,00 € : 1,00 €
-+
30
P/N (SKU): 0800-011100-30020
Part Name: LH CRANKCASE ASSY
Alternative parts:
Specification: GROUP B_FOR BLUE BEARING SLEEVE
Price: 299,30 € : 299,30 €
-+
30
P/N (SKU): 0800-011100-30010
Part Name: LH CRANKCASE ASSY
Alternative parts:
Specification: GROUP A_FOR RED BEARING SLEEVE
Price: 299,30 € : 299,30 €
-+
31
P/N (SKU): 0800-011106
Part Name: SLEEVE, GEARSHIFT
Alternative parts:
Price: 4,50 € : 4,50 €
-+
32
P/N (SKU): 0010-021018-0010
Part Name: BOLT M6x55
Alternative parts:
Specification: M6x55
Price: 1,00 € : 1,00 €
-+
33
P/N (SKU): 0800-011007
Part Name: CHAIN GUARD
Alternative parts:
Price: 1,60 € : 1,60 €
-+
34
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Alternative parts:
Price: 1,00 € : 1,00 €
-+
35
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Alternative parts:
Specification: M6x12
Price: 1,00 € : 1,00 €
-+
36
P/N (SKU): 0800-011004
Part Name: IDLE GEAR, BREATHER
Alternative parts:
Price: 2,70 € : 2,70 €
-+
37
P/N (SKU): 0800-011002
Part Name: GASKET, LH CRANKCASE COVER
Alternative parts:
Price: 7,90 € : 7,90 €
-+
38
P/N (SKU): 30801-01005
Part Name: CIRCLIPS FOR SHAFT10
Alternative parts:
Specification: 10
Price: 1,00 € : 1,00 €
-+
39
P/N (SKU): 0800-011005
Part Name: WASHER 10
Alternative parts:
Specification: 10
Price: 1,00 € : 1,00 €
-+
40
P/N (SKU): 0800-011006
Part Name: SCREW PLUG
Alternative parts: 0800-011006-00001
Price: 1,80 € : 1,80 €
41
P/N (SKU): 0800-011104
Part Name: IDLE GEAR SHAFT, BREATHER
Alternative parts:
Price: 6,60 € : 6,60 €
-+
42
P/N (SKU): 0800-011203
Part Name: OIL SEAL 15x26x6
Alternative parts:
Specification: 15x26x6
Price: 3,20 € : 3,20 €
-+
43
P/N (SKU): 0800-011201
Part Name: GEAR, BREATHER
Alternative parts:
Price: 3,00 € : 3,00 €
-+
44
P/N (SKU): 30400-01003
Part Name: BEARING
Alternative parts:
Specification: 10
Price: 4,20 € : 4,20 €
-+
45
P/N (SKU): 0800-011202
Part Name: SHAFT, BREATHER
Alternative parts:
Price: 3,30 € : 3,30 €
-+
46
P/N (SKU): 0800-011200
Part Name: BREATHER ASSY
Alternative parts:
Price: 11,40 € : 11,40 €
-+
47
P/N (SKU): 0130-011109-0010
Part Name: BOLT M8x60
Alternative parts:
Specification: M8x60
Price: 1,80 € : 1,80 €
-+
48
P/N (SKU): 0180-011500
Part Name: DRAIN BOLT, MAGNETIC M12X1.5
Alternative parts:
Specification: M12x1.5
Price: 3,00 € : 3,00 €
-+
49
P/N (SKU): 0800-012401
Part Name: ADAPTOR CABLE, OIL PRESSURE SWITCH
Alternative parts:
Price: 13,55 € : 13,55 €
-+
50
P/N (SKU): 0800-011102-0002
Part Name: PLAIN BEARING 1
Alternative parts: 0800-011102-00021
Specification: BLUE@THICK
Price: 8,20 € : 8,20 €
50
P/N (SKU): 0800-011102-0001
Part Name: PLAIN BEARING 1
Alternative parts: 0800-011102-00011
Specification: RED@THIN
Price: 8,20 € : 8,20 €
51
P/N (SKU): 0800-011103-0001
Part Name: PLAIN BEARING 2
Alternative parts: 0800-011103-00011
Specification: RED@THIN
Price: 9,60 € : 9,60 €
-+
51
P/N (SKU): 0800-011103-0002
Part Name: PLAIN BEARING 2
Alternative parts: 0800-011103-00021
Specification: BLUE@THICK
Price: 7,00 € : 7,00 €
52
P/N (SKU): 0800-0111B0
Part Name: PLAIN BEARING KIT, MAIN SHAFT
Alternative parts:
Specification: BLUE
Price: 15,30 € : 15,30 €
-+
52
P/N (SKU): 0800-0111A0
Part Name: PLAIN BEARING KIT, MAIN SHAFT
Alternative parts:
Specification: RED
Price: 24,40 € : 24,40 €
-+
53
P/N (SKU): 0700-024001
Part Name: O-SEAL RING 19x2
Alternative parts:
Specification: 19x2
Price: 1,00 € : 1,00 €
-+
54
P/N (SKU): 0800-014420
Part Name: OIL DIPSTICK
Alternative parts:
Price: 14,70 € : 14,70 €
-+
55
P/N (SKU): 0800-014440
Part Name: OIL DIPSTICK
Alternative parts: 0800-014440-10000
Price: 3,30 € : 3,30 €
