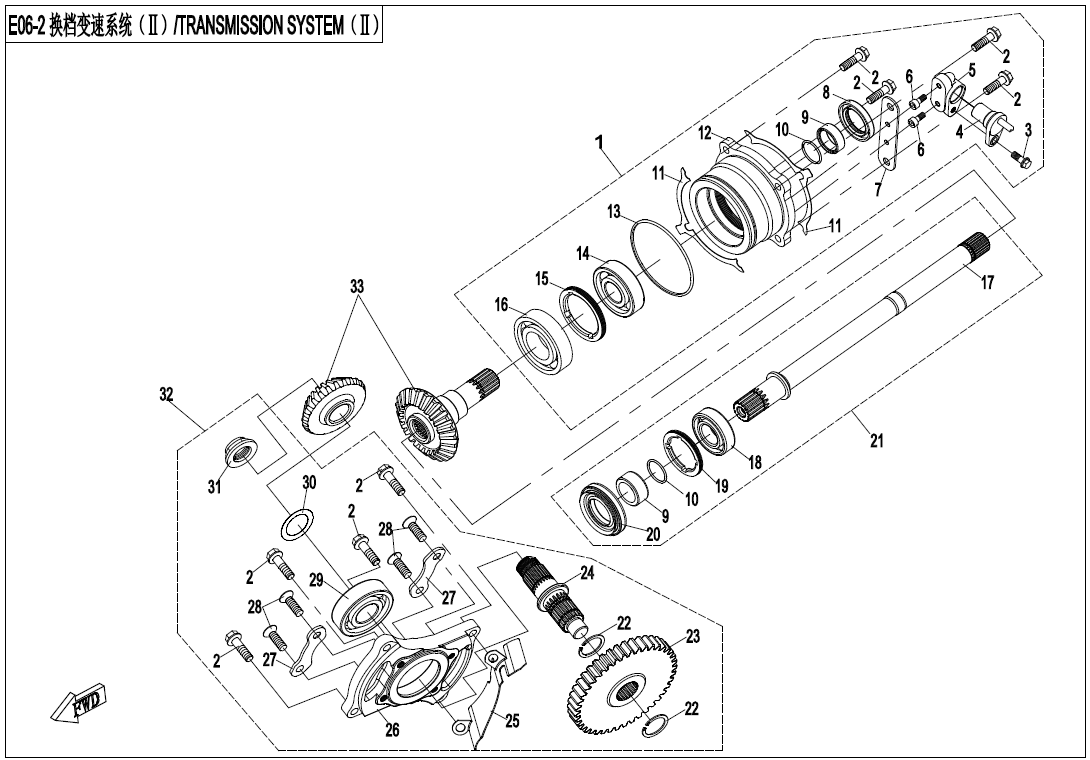

TRANSMISSION SYSTEM (2) - E06-2-A | 2021, ENGINE, 2V91W(U8)

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0800-0622B0

Part Name: DRIVEN BEVEL GEAR ASSY

Alternative parts: 0800-0622B0-00001

Price: 79,00 € : 79,00 €

02

P/N (SKU): 0110-060011-0010

Part Name: BOLT M8x28

Remarks: Can not be replaced by 0JYA-062104

Alternative parts: 0JYA-062104

Specification: M8x28

Price: 2,00 € : 2,00 €

02

P/N (SKU): 0JYA-062104

Part Name: BOLT M8x28

Specification: M8x28

Price: 1,50 € : 1,50 €

03

P/N (SKU): 30001-060014810

Part Name: BOLT M6x14

Specification: M6x14

Price: 1,50 € : 1,50 €

04

P/N (SKU): 7020-150400

Part Name: SPEED SENSOR

Price: 34,00 € : 34,00 €

05

P/N (SKU): 0800-062208

Part Name: SEAT, SPEED SENSOR

Price: 6,00 € : 6,00 €

06

P/N (SKU): 30102-050012810

Part Name: SCREW M5x12

Specification: M5x12

Price: 1,50 € : 1,50 €

07

P/N (SKU): 0800-062209

Part Name: PLATE, SPEED SENSOR

Price: 2,50 € : 2,50 €

08

P/N (SKU): 0800-062204

Part Name: OIL SEAL 35x50x7

Specification: 35x50x7

Price: 6,50 € : 6,50 €

09

P/N (SKU): 0800-062201

Part Name: SHAFT SLEEVE, OUTPUT SHAFT

Price: 9,00 € : 9,00 €

10

P/N (SKU): 0800-062205

Part Name: O-SEAL RING 25x2

Specification: 25x2

Price: 2,00 € : 2,00 €

11

P/N (SKU): 0800-062203-0001

Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR

Specification: t=0.2

Price: 1,50 € : 1,50 €

11

P/N (SKU): 0800-062203-0002

Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR

Specification: t=0.3

Price: 1,50 € : 1,50 €

11

P/N (SKU): 0800-062203-0003

Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR

Specification: t=0.4

Price: 1,50 € : 1,50 €

11

P/N (SKU): 0800-062203-0004

Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR

Specification: t=0.5

Price: 1,50 € : 1,50 €

11

P/N (SKU): 0800-062203

Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR

Specification: t=0.1

Price: 1,50 € : 1,50 €

12

P/N (SKU): 0800-062202-1000

Part Name: BEARING HOUSING, DRIVEN BEVEL GEAR

Alternative parts: 0800-062202-10001

Price: 43,00 € : 43,00 €

13

P/N (SKU): 0180-062205

Part Name: O-SEAL RING 88x2.5

Specification: 88x2.5

Price: 4,00 € : 4,00 €

14

P/N (SKU): 30400-02502

Part Name: BEARING

Specification: CHINA

Price: 11,00 € : 11,00 €

15

P/N (SKU): 0800-062206

Part Name: STOPPER NUT, BEARING

Price: 4,00 € : 4,00 €

16

P/N (SKU): 30400-03500

Part Name: BEARING

Specification: 35

Price: 11,00 € : 11,00 €

17

P/N (SKU): 0800-062301-00001

Part Name: FRONT OUTPUT SHAFT

Price: 37,00 € : 37,00 €

18

P/N (SKU): 30400-02501

Part Name: BEARING

Specification: 25

Price: 7,50 € : 7,50 €

19

P/N (SKU): 0180-060008

Part Name: BEARING RETAINER, FRONT OUTPUT SHAFT

Price: 6,50 € : 6,50 €

20

P/N (SKU): 0JWA-062302

Part Name: OIL SEAL 35x61x9(14)

Specification: 35x61x9

Price: 10,00 € : 10,00 €

21

P/N (SKU): 0800-062300-00001

Part Name: FRONT OUTPUT SHAFT ASSY

Price: 60,00 € : 60,00 €

22

P/N (SKU): 0180-061007-0050

Part Name: CIRCLIP 25

Specification: 25

Price: 1,50 € : 1,50 €

23

P/N (SKU): 0800-062102

Part Name: OUTPUT DRIVEN GEAR

Price: 42,00 € : 42,00 €

24

P/N (SKU): 0800-062101

Part Name: DRIVE BEVEL GEAR SHAFT

Price: 27,00 € : 27,00 €

25

P/N (SKU): 0800-062108

Part Name: RETAINING PLATE

Price: 3,00 € : 3,00 €

26

P/N (SKU): 0800-062103

Part Name: BEARING SEAT, DRIVE BEVEL GEAR

Price: 26,00 € : 26,00 €

27

P/N (SKU): 0180-062104-0010

Part Name: LIMITATOR, BEARING

Price: 2,00 € : 2,00 €

28

P/N (SKU): 30124-080025810

Part Name: SCREW M8x25

Specification: M8x25

Price: 1,50 € : 1,50 €

29

P/N (SKU): 30499-02501

Part Name: BEARING

Specification: 25

Price: 20,00 € : 20,00 €

30

P/N (SKU): 0180-062105-0002

Part Name: ADJUST GASKET, DRIVE BEVEL GEAR

Specification: t=0.25

Price: 1,50 € : 1,50 €

30

P/N (SKU): 0180-062105-0004

Part Name: ADJUSTING WASHER, DRIVE SHAFT GEAR

Specification: t=0.35

Price: 1,50 € : 1,50 €

30

P/N (SKU): 0180-062105

Part Name: ADJUST GASKET, DRIVE BEVEL GEAR

Specification: t=0.15

Price: 3,50 € : 3,50 €

30

P/N (SKU): 0180-062105-0001

Part Name: ADJUST GASKET, DRIVE BEVEL GEAR

Specification: t=0.2

Price: 1,50 € : 1,50 €

30

P/N (SKU): 0180-062105-0003

Part Name: ADJUSTING WASHER, DRIVE SHAFT GEAR

Specification: t=0.3

Price: 1,50 € : 1,50 €

31

P/N (SKU): 0180-062107-0010

Part Name: LOCK NUT, BEVEL GEAR

Alternative parts: 0180-062107-00001

Price: 2,50 € : 2,50 €

32

P/N (SKU): 0800-0621B0

Part Name: DRIVE BEVEL GEAR ASSY

Price: 85,00 € : 85,00 €

33

P/N (SKU): 0800-0622A0-00001

Part Name: BEVEL GEAR ASSY

Price: 100,00 € : 100,00 €
