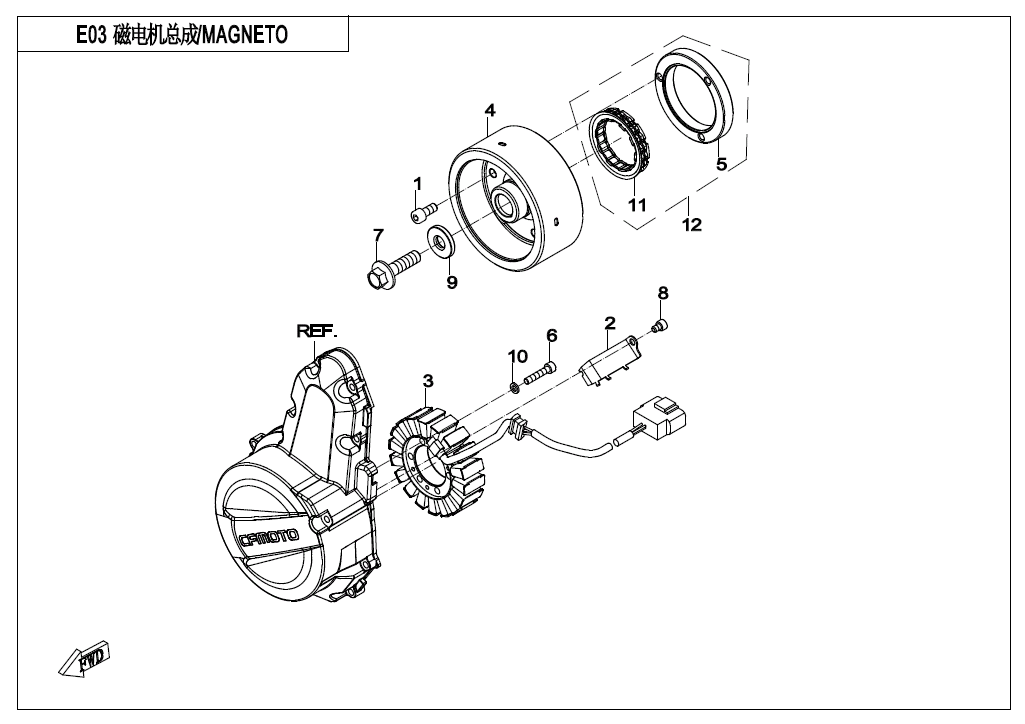

MAGNETO - E03

MAGNETO - E03

No.

01
P/N (SKU): 0110-090009-00001
Part Name: INNER HEX SCREW M8x18
Effective: 2021-02-26
Alternative parts: 0110-090009-00002
Specification: M8x18
Price: 1,50 € : 1,50 €
02
P/N (SKU): 0700-030001-00001
Part Name: PLATE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0700-032000-10000
Part Name: MAGNETO STATOR
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 80,00 € : 80,00 €
-+
04
P/N (SKU): 0700-031000
Part Name: MAGNETO ROTOR
Effective: 2021-02-26
Alternative parts:
Price: 102,00 € : 102,00 €
-+
05
P/N (SKU): 0700-091001
Part Name: COUPLING
Effective: 2021-02-26
Alternative parts:
Price: 24,00 € : 24,00 €
-+
06
P/N (SKU): 0060-030003-0030
Part Name: INNER HEX BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6x30
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0700-040001-20000
Part Name: BOLT M12x1.25x45
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
08
P/N (SKU): 0010-090006-0010
Part Name: SCREW M6x12
Effective: 2021-02-26
Alternative parts: 0010-090006-00001
Price: 2,00 € : 2,00 €
09
P/N (SKU): 0700-040002-00001
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 12.5x33x5
Price: 2,50 € : 2,50 €
-+
10
P/N (SKU): 0060-030004-0030
Part Name: WASHER 6x10.4x1.6
Effective: 2021-02-26
Alternative parts:
Specification: 6x10.4x1.6
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 0700-091200
Part Name: CLUTCH, ONE-WAY
Effective: 2021-02-26
Alternative parts:
Price: 76,00 € : 76,00 €
-+
12
P/N (SKU): 0700-091000
Part Name: OVERRIDING CLUTCH
Effective: 2021-02-26
Alternative parts:
Price: 75,00 € : 75,00 €
-+
