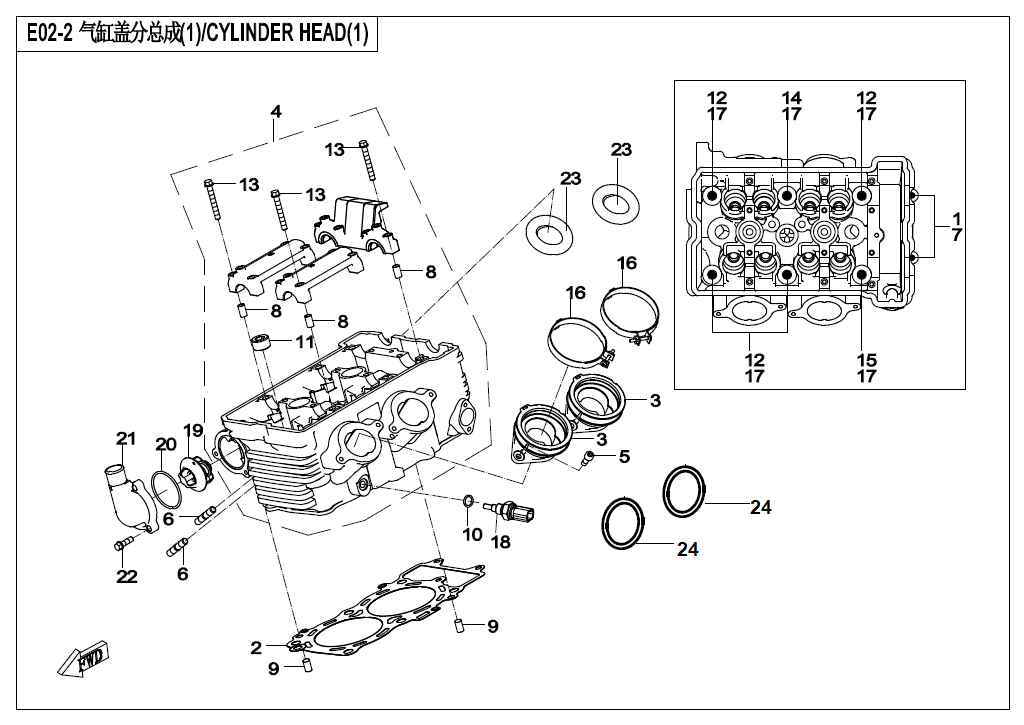

CYLINDER HEAD(1) - E02-2

CYLINDER HEAD(1) - E02-2

No.

01
P/N (SKU): 0HU0-022002
Part Name: INNER HEX SCREW M6x30
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
02
P/N (SKU): 0700-022100-0001
Part Name: CYLINDER HEAD GASKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 31,20 € : 31,20 €
-+
03
P/N (SKU): 0700-022320-1000
Part Name: AIR INLET PIPE
Effective: 2021-02-26
Alternative parts: 0700-022320-20000
Price: 17,04 € : 17,04 €
-+
03
P/N (SKU): 0700-022320-20000
Part Name: AIR INLET PIPE ASSY
Effective: 2023-09-08
Alternative parts:
Price: 19,44 € : 19,44 €
-+
04
P/N (SKU): 0HU0-022200-3BP00
Part Name: CYLINDER
Effective: 2021-02-26
Alternative parts: 0HU0-022200-3BP01
Price: 525,30 € : 525,30 €
05
P/N (SKU): 30102-060016810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,00 € : 1,00 €
-+
06
P/N (SKU): 0180-022003-00001
Part Name: STUD
Effective: 2021-02-26
Alternative parts: 0180-022003-00002
Price: 1,00 € : 1,00 €
-+
07
P/N (SKU): 0060-030004-0030
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 6x10.4x1.6
Price: 1,00 € : 1,00 €
-+
08
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts: 0DM0-022201-10000
Specification: 8X14
Price: 1,00 € : 1,00 €
-+
09
P/N (SKU): 0700-022018
Part Name: SOLID PIN 8x14
Effective: 2021-02-26
Alternative parts:
Specification: 8x14
Price: 1,00 € : 1,00 €
-+
10
P/N (SKU): 0700-022019
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 12.5x20x1
Price: 1,80 € : 1,80 €
-+
11
P/N (SKU): 0700-022236
Part Name: PLUG, PT1/2
Effective: 2021-02-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): 0700-022013-00001
Part Name: CYLINDER HEAD BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10x158@GALVANIZED TR
Price: 3,00 € : 3,00 €
-+
13
P/N (SKU): 0700-022204
Part Name: HEX FLANGE BOLT M6x45
Effective: 2021-02-26
Alternative parts:
Specification: M6X45
Price: 1,00 € : 1,00 €
-+
14
P/N (SKU): 0700-022014-10001
Part Name: CYLINDER HEAD BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10x176@GALVANIZED TRIVALENT CH
Price: 3,00 € : 3,00 €
-+
15
P/N (SKU): 0700-022015-00001
Part Name: CYLINDER HEAD BOLT
Effective: 2021-02-26
Alternative parts: 0700-022015-00002
Specification: M10x1.25x80@GALVANIZED TRIVALEN
Price: 2,40 € : 2,40 €
16
P/N (SKU): 0700-022330
Part Name: CLAMP, AIR INLET PIPE
Effective: 2021-02-26
Alternative parts:
Price: 2,60 € : 2,60 €
-+
17
P/N (SKU): 0700-022016
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 10.5x19x2.3
Price: 1,00 € : 1,00 €
-+
18
P/N (SKU): 018B-022810
Part Name: WATER TEMPERATURE SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 26,50 € : 26,50 €
-+
19
P/N (SKU): 0700-022500-0001
Part Name: THERMOSTAT
Effective: 2021-02-26
Alternative parts:
Price: 13,68 € : 13,68 €
-+
20
P/N (SKU): 0700-022011
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 44.5x2.5
Price: 2,80 € : 2,80 €
-+
21
P/N (SKU): 0700-022009-1B200
Part Name: THERMOSTAT CAP
Effective: 2021-02-26
Alternative parts:
Price: 7,20 € : 7,20 €
-+
21
P/N (SKU): 0700-022009-1BP00
Part Name: THERMOSTAT CAP
Effective: 2021-02-26
Alternative parts:
Price: 7,20 € : 7,20 €
-+
22
P/N (SKU): 0010-023010-0010
Part Name: BOLT M6x20
Effective: 2021-02-26
Alternative parts: 0JWV-011107-3000
Specification: M6x20
Price: 1,00 € : 1,00 €
-+
23
P/N (SKU): 0700-022012
Part Name: GASKET, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 1,60 € : 1,60 €
-+
24
P/N (SKU): 0MQ0-022301
Part Name: O-RING 47.5x2.5
Effective: 2023-09-08
Alternative parts:
Price: 2,80 € : 2,80 €
-+
