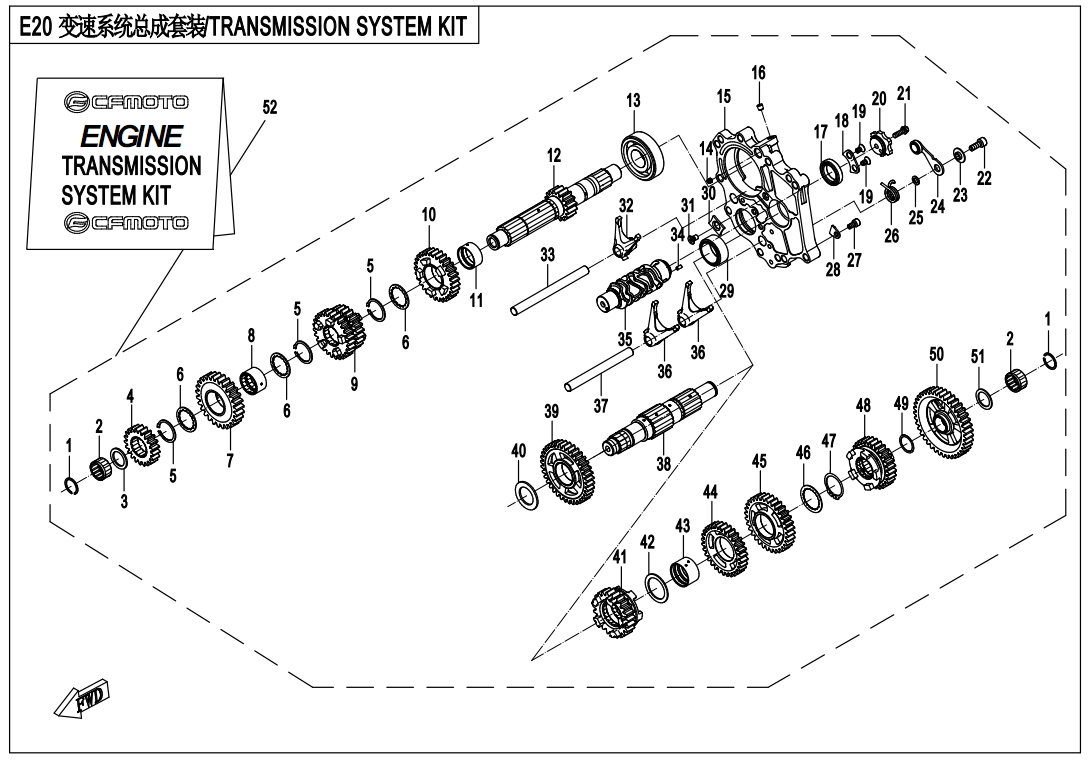

TRANSMISSION SYSTEM KIT - E20

TRANSMISSION SYSTEM KIT - E20

No.

01
P/N (SKU): 0700-061016
Part Name: CIRCLIPS FOR SHAFT20
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 20
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 30499-02004
Part Name: NEEDLE ROLLER BEARING
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: KMJ20x26x13.8x1S
Price: 11,00 € : 11,00 €
-+
03
P/N (SKU): 0180-061012
Part Name: GASKET
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 20.5x30x1.5
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0700-061014-1000
Part Name: DRIVE GEAR, 2ND SPEED
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 1-3 GEAR
Price: 26,00 € : 26,00 €
05
P/N (SKU): 0700-061009
Part Name: CIRCLIPS FOR SHAFT28
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 28
Price: 1,50 € : 1,50 €
06
P/N (SKU): 0700-061008
Part Name: WASHER
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
07
P/N (SKU): 0700-061013-1000
Part Name: DRIVE GEAR, 6TH SPEED
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 27
Price: 54,00 € : 54,00 €
08
P/N (SKU): 0700-061012
Part Name: BUSHING 28x14.7
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 9,00 € : 9,00 €
09
P/N (SKU): 0700-061011-1000
Part Name: DRIVE GEAR, 3RD AND 4TH SPEED
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 1-3 GEAR
Price: 89,00 € : 89,00 €
10
P/N (SKU): 0700-061007-1000
Part Name: DRIVE GEAR, 5TH SPEED
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 29
Price: 52,00 € : 52,00 €
11
P/N (SKU): 0700-061006
Part Name: BUSHING 28x14
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 8,50 € : 8,50 €
12
P/N (SKU): 0700-061001-1000
Part Name: MAIN SHAFT
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 1-3 GEAR
Price: 93,00 € : 93,00 €
13
P/N (SKU): 0700-066002
Part Name: BEARING 25x62x17
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 25x62x17
Price: 46,00 € : 46,00 €
-+
14
P/N (SKU): 0700-066006
Part Name: OIL LIMIT PLUG
Effective: 2021-04-08
Remarks: null
Alternative parts: 0700-066006-00001
Price: 1,50 € : 1,50 €
14
P/N (SKU): 0700-066006-00001
Part Name: OIL LIMIT PLUG
Effective: 2021-04-08
Remarks: null
Alternative parts: 0700-066006-00002
Price: 1,50 € : 1,50 €
15
P/N (SKU): 0700-066001
Part Name: GEAR CASE
Effective: 2021-04-08
Remarks: null
Alternative parts: 0700-066001-00001
Price: 31,00 € : 31,00 €
16
P/N (SKU): 0700-066005
Part Name: PLUG 6
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 6
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): 30400-02504
Part Name: DEEP GROOVE BALL BEARING
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
18
P/N (SKU): 0700-066009
Part Name: RETAINING PLATE 3
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
19
P/N (SKU): 0700-066010
Part Name: SCREW, BEARING HOLDER
Effective: 2021-04-08
Remarks: null
Alternative parts: 0700-066010-00001
Price: 1,50 € : 1,50 €
20
P/N (SKU): 0700-063002
Part Name: GEARSHIFT DRUM CAM
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
21
P/N (SKU): 0010-023008-0010
Part Name: BOLT M6x18
Effective: 2021-04-08
Remarks: null
Alternative parts: 0010-023008-00001
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
22
P/N (SKU): 30102-060016810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 0700-064003
Part Name: GEARSHIFT SWING ARM SLEEVE
Effective: 2021-04-08
Remarks: null
Alternative parts: 0700-064003-00001
Price: 4,50 € : 4,50 €
-+
24
P/N (SKU): 0700-064100
Part Name: GEARSHIFT SWING ARM SUB ASSY
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 12,00 € : 12,00 €
-+
25
P/N (SKU): 0700-064001
Part Name: WASHER
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 6.3x16.3x1.2
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 0700-064002
Part Name: GEARSHIFT SWING ARM SPRING
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0010-090006-0050
Part Name: SCREW
Effective: 2021-04-08
Remarks: null
Alternative parts: 0010-090006-0010
Specification: M6x12@BLACK OXIDATION
Price: 1,50 € : 1,50 €
28
P/N (SKU): 0700-066008
Part Name: RETAINING PLATE 2
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 0700-011107
Part Name: SHAFT SLEEVE
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 8,50 € : 8,50 €
30
P/N (SKU): 0700-066003
Part Name: RETAINING PLATE 1
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
31
P/N (SKU): 0180-014009-00001
Part Name: SCREW, PRESS PLATE
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
32
P/N (SKU): 0700-060004-1000
Part Name: FORK, MAIN SHAFT
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
33
P/N (SKU): 0700-060003
Part Name: FORK SHAFT, MAIN SHAFT
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 8,00 € : 8,00 €
-+
34
P/N (SKU): 30406-00401
Part Name: NEEDLE ROLLERS
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: P4x7.8
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 0700-063001-1000
Part Name: GEARSHIFT DRUM
Effective: 2021-04-08
Remarks: null
Alternative parts: 0700-063001-10001
Price: 30,00 € : 30,00 €
36
P/N (SKU): 0700-060002-1000
Part Name: SHIFT FORK, COUNTERSHAFT
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
37
P/N (SKU): 0700-060001
Part Name: SHIFT FORK, COUNTERSHAFT
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
38
P/N (SKU): 0700-062001-1000
Part Name: COUNTERSHAFT
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 1-3 GEAR
Price: 81,00 € : 81,00 €
39
P/N (SKU): 0700-062200-1000
Part Name: DRIVEN GEAR, 2ND SPEED
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 1-3 GEAR
Price: 65,00 € : 65,00 €
40
P/N (SKU): 0700-062012
Part Name: WASHER
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 25x39x2
Price: 3,00 € : 3,00 €
41
P/N (SKU): 0700-062011-1000
Part Name: DRIVEN GEAR, 6TH SPEED
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 23
Price: 55,00 € : 55,00 €
42
P/N (SKU): 0700-062009
Part Name: WASHER
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 30x38.5x1.5
Price: 3,00 € : 3,00 €
43
P/N (SKU): 0700-062007
Part Name: BUSHING 29.65
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
44
P/N (SKU): 0700-062008-1000
Part Name: DRIVEN GEAR, 4TH SPEED
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 30
Price: 52,00 € : 52,00 €
45
P/N (SKU): 0700-062006-1000
Part Name: DRIVEN GEAR, 3RD SPEED
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 32
Price: 53,00 € : 53,00 €
46
P/N (SKU): 0700-062005
Part Name: WASHER
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
47
P/N (SKU): 30801-03005
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 30
Price: 1,50 € : 1,50 €
48
P/N (SKU): 0700-062004-1000
Part Name: DRIVEN GEAR, 5TH SPEED
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 28
Price: 66,00 € : 66,00 €
49
P/N (SKU): 0700-062003
Part Name: WASHER
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 20.4x25x0.5
Price: 2,00 € : 2,00 €
50
P/N (SKU): 0700-062100-1000
Part Name: DRIVEN GEAR, 1ST SPEED
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 1-3 GEAR
Price: 56,00 € : 56,00 €
51
P/N (SKU): 0700-062002
Part Name: WASHER 2
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Specification: 20.4x28x1.2
Price: 2,00 € : 2,00 €
52
P/N (SKU): 0700-0600A0
Part Name: SHIFTING SYSTEM ASSY
Effective: 2021-04-08
Remarks: null
Alternative parts: null
Price: 800,00 € : 800,00 €
