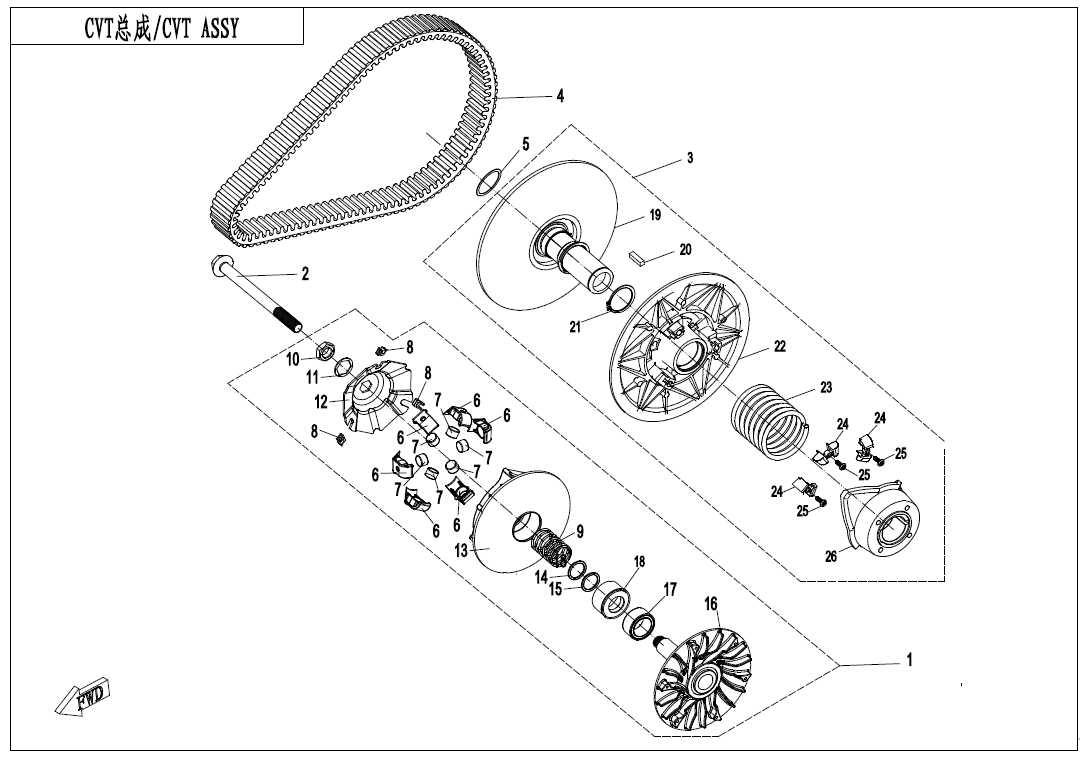

CVT ASSY - E05-V2

No.

01
P/N (SKU): 0GRB-051000-10050
Part Name: DRIVE PULLEY ASSY
Effective: 2021-02-26
Alternative parts:
Price: 801,20 € : 801,20 €
-+
02
P/N (SKU): 0JY0-050001-00001
Part Name: BOLT, DRIVE PULLEY
Effective: 2021-02-26
Alternative parts:
Price: 5,10 € : 5,10 €
-+
03
P/N (SKU): 0GR0-052000
Part Name: DRIVEN PULLEY
Effective: 2021-02-26
Alternative parts:
Price: 355,90 € : 355,90 €
-+
04
P/N (SKU): 0180-055000-0004
Part Name: DRIVE BELT
Effective: 2021-02-26
Alternative parts:
Specification: MITSUBOSHI
Price: 202,60 € : 202,60 €
-+
04
P/N (SKU): 0180-055000-0003
Part Name: DRIVE BELT
Effective: 2021-02-26
Alternative parts:
Specification: BANDO
Price: 216,90 € : 216,90 €
-+
04
P/N (SKU): 0180-055000-0005
Part Name: DRIVE BELT
Effective: 2021-02-26
Alternative parts:
Specification: CARLISLE
Price: 188,20 € : 188,20 €
-+
05
P/N (SKU): 0GR0-050001-00001
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 0GR0-051005
Part Name: NYLON PROTECTOR, WEIGHT ROLLER
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 16,90 € : 16,90 €
-+
07
P/N (SKU): 0GR0-051004-20000
Part Name: WEIGHT ROLLER
Effective: 2021-02-26
Alternative parts:
Specification: 16g
Price: 6,25 € : 6,25 €
-+
08
P/N (SKU): 0GR0-051006
Part Name: NYLON SLIDER
Effective: 2021-02-26
Alternative parts:
Price: 17,60 € : 17,60 €
-+
09
P/N (SKU): 0GR0-051003-20000
Part Name: SPRING, DRIVE PULLEY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 35,20 € : 35,20 €
-+
10
P/N (SKU): 0GR0-051008-00010
Part Name: NUT, DRIVE PULLEY
Effective: 2021-02-26
Remarks: ANTI-CLOCKWISE
Alternative parts:
Specification: LEFT-HAND THREAD
Price: 14,30 € : 14,30 €
-+
11
P/N (SKU): 0GR0-051007
Part Name: HEXAGONAL BORE WASHER
Effective: 2021-02-26
Alternative parts:
Price: 16,90 € : 16,90 €
-+
12
P/N (SKU): 0GR0-051002
Part Name: RAMP PLATE
Effective: 2021-02-26
Alternative parts: 0GR0-051002-00001
Price: 90,30 € : 90,30 €
-+
13
P/N (SKU): 0GR0-051100
Part Name: PRIMARY LOOSE PULLEY ASSY
Effective: 2021-02-26
Alternative parts: 0JYA-051100
Price: 305,00 € : 305,00 €
14
P/N (SKU): 0GR0-051011
Part Name: STEEL WASHER
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 11,40 € : 11,40 €
-+
15
P/N (SKU): 0GR0-051009-10000
Part Name: NYLON WASHER
Effective: 2021-02-26
Alternative parts:
Price: 11,80 € : 11,80 €
-+
16
P/N (SKU): 0GR0-051200-10010
Part Name: PRIMARY TIGHT PULLEY ASSY
Effective: 2021-02-26
Remarks: WITH ANTI-CLOCKWISE NUT
Specification: WITH ANTI-CLOCKWISE ROTATION SCREW THREAD
Price: 345,70 € : 345,70 €
17
P/N (SKU): 0GR0-051300
Part Name: OVERRIDING CLUTCH
Effective: 2021-02-26
Alternative parts:
Price: 141,40 € : 141,40 €
-+
18
P/N (SKU): 0GR0-051001
Part Name: SPRING SEAT
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 56,80 € : 56,80 €
-+
19
P/N (SKU): 0GR0-052100
Part Name: DRIVEN FIXED PULLEY ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 377,30 € : 377,30 €
-+
20
P/N (SKU): 0GR0-052003
Part Name: TAPER KEY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 2,95 € : 2,95 €
-+
21
P/N (SKU): 0GR0-052004
Part Name: CIRCLIP
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 11,40 € : 11,40 €
-+
22
P/N (SKU): 0GR0-052200
Part Name: DRIVEN SLIDING PULLEY ASSY
Effective: 2021-02-26
Alternative parts:
Price: 235,80 € : 235,80 €
-+
23
P/N (SKU): 0GR0-052001
Part Name: SPRING, DRIVEN PULLEY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 77,80 € : 77,80 €
-+
24
P/N (SKU): 0GR0-052005
Part Name: NYLON BLOCK
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 11,40 € : 11,40 €
-+
25
P/N (SKU): 0GR0-052006
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 2,95 € : 2,95 €
-+
26
P/N (SKU): 0GR0-052002
Part Name: CAM PLATE
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 94,60 € : 94,60 €
-+
