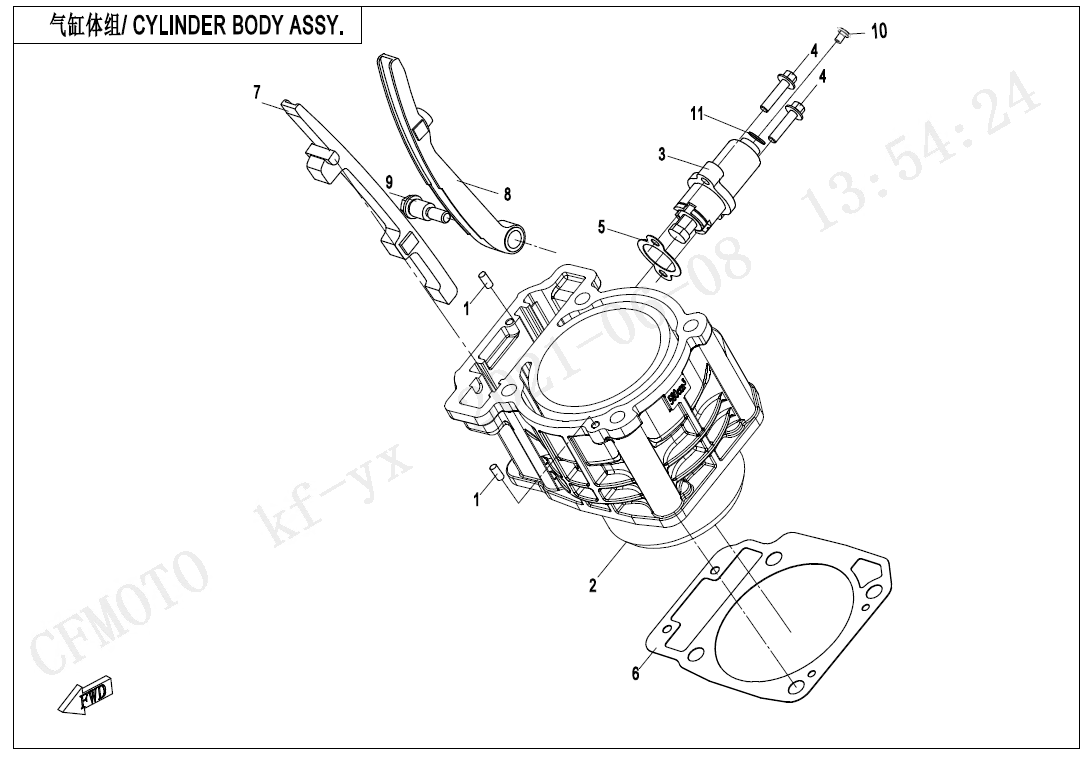

CYLINDER BODY ASSY. - E02-3-V2

CYLINDER BODY ASSY. - E02-3-V2

No.

01
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE P5x11.8
Effective: 2021-07-15
Alternative parts:
Specification: P5x11.8
Price: 1,00 € : 1,00 €
-+
02
P/N (SKU): 0GQ0-023100-10020
Part Name: CYLINDER BODY ASSY
Effective: 2021-07-15
Remarks: MARK Ⅱ
Alternative parts:
Specification: GROUP 2
Price: 78,20 € : 78,20 €
-+
02
P/N (SKU): 0GQ0-023100-10010
Part Name: CYLINDER BODY ASSY
Effective: 2021-07-15
Remarks: MARK Ⅰ
Alternative parts:
Specification: GROUP 1
Price: 76,08 € : 76,08 €
-+
03
P/N (SKU): 0GR0-023400-00001
Part Name: TENSIONER ASSY
Effective: 2021-04-30
Alternative parts:
Price: 16,97 € : 16,97 €
-+
03
P/N (SKU): 0GS0-023200-00001
Part Name: TENSIONER ASSY
Effective: 2021-07-15
Alternative parts: 0GR0-023400-00001
Price: 20,80 € : 20,80 €
-+
04
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2021-07-15
Alternative parts:
Specification: M6x25
Price: 1,00 € : 1,00 €
-+
05
P/N (SKU): 0180-023003
Part Name: GASKET, TENSIONER
Effective: 2021-07-15
Alternative parts:
Price: 1,00 € : 1,00 €
-+
06
P/N (SKU): 0GR0-023001
Part Name: GASKET, CYLINDER BODY
Effective: 2021-07-15
Alternative parts:
Price: 1,70 € : 1,70 €
-+
07
P/N (SKU): 0GR0-023300
Part Name: UPPERGUIDE, CHAIN
Effective: 2021-07-15
Alternative parts:
Price: 9,70 € : 9,70 €
-+
08
P/N (SKU): 0GR0-023200
Part Name: TENSION PLATE
Effective: 2021-07-15
Alternative parts:
Price: 15,44 € : 15,44 €
-+
09
P/N (SKU): 0700-024008-00001
Part Name: PIN SHAFT
Effective: 2021-07-15
Alternative parts:
Price: 2,70 € : 2,70 €
-+
10
P/N (SKU): 0JYA-023001-00001
Part Name: HEX FLANGE BOLT M6x6
Effective: 2021-07-15
Alternative parts:
Price: 1,00 € : 1,00 €
-+
11
P/N (SKU): 0180-023201
Part Name: O-RING 8.2x1.9
Effective: 2021-04-30
Alternative parts: 0700-011202
Price: 1,00 € : 1,00 €
11
P/N (SKU): 0700-011202
Part Name: O-SEAL RING 8.2x1.90
Effective: 2021-07-15
Alternative parts:
Specification: 8.2x1.90
Price: 1,00 € : 1,00 €
-+
