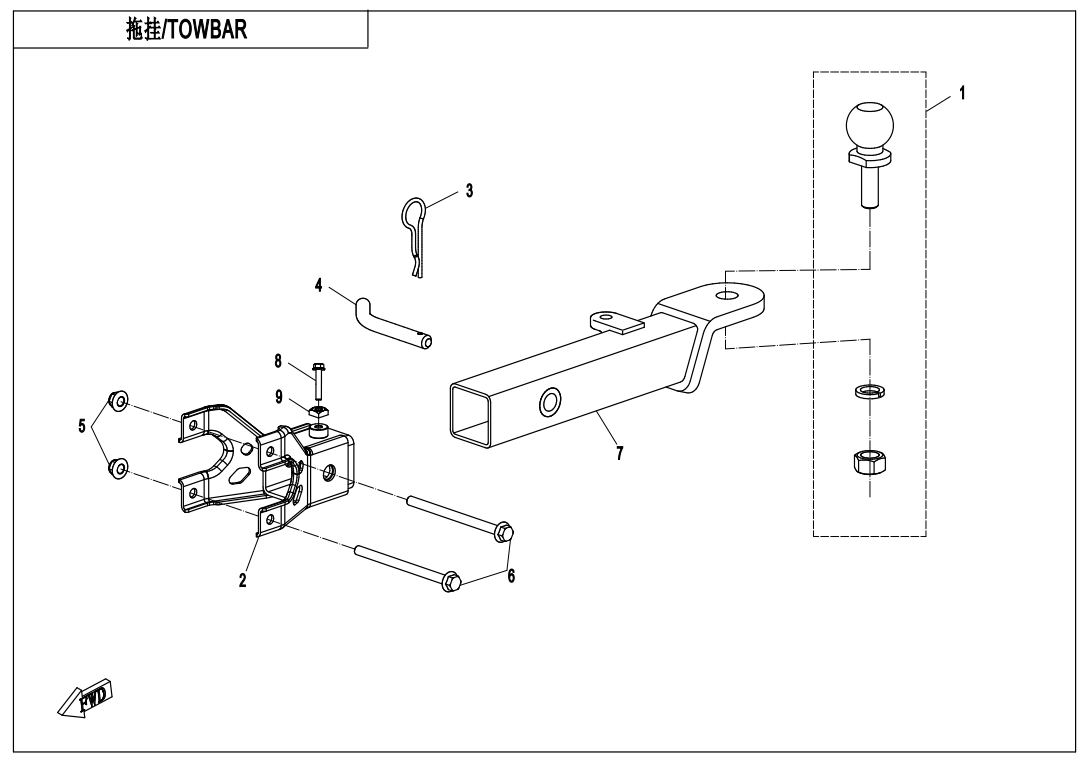

TOWBAR(PIN CONNECTION) - F40-V2

TOWBAR(PIN CONNECTION) - F40-V2

No.

01
P/N (SKU): 5BW1-401310
Part Name: TOWING HITCH BALL ASSY
Effective: 2021-07-21
Alternative parts: 5BW1-401310-10000
Price: 39,00 € : 39,00 €
01
P/N (SKU): 5BW1-401310-10000
Part Name: TOWING HITCH BALL ASSY
Effective: 2021-09-15
Remarks: null
Alternative parts: null
Specification: 50mm
Price: 41,00 € : 41,00 €
-+
02
P/N (SKU): 9AWV-401000-2B00
Part Name: TOWING BRACKET
Effective: 2021-07-21
Remarks: null
Alternative parts: 9AWV-401000-2B00-0BP00
Specification: null
Price: 43,00 € : 43,00 €
-+
03
P/N (SKU): 9010-400102-10000
Part Name: COTTER PIN, BRACKET
Effective: 2021-07-21
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
04
P/N (SKU): 9010-400103
Part Name: PIN SHAFT, BRACKET
Effective: 2021-07-21
Remarks: null
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
05
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-07-21
Remarks: null
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
06
P/N (SKU): 30006-102140810
Part Name: BOLT
Effective: 2021-07-21
Remarks: null
Alternative parts: null
Specification: M10×1.25×140
Price: 3,00 € : 3,00 €
-+
07
P/N (SKU): 5BW1-401200-20000
Part Name: TRAILER TUBE ASSY
Effective: 2021-07-21
Alternative parts: 5BW1-401200-2BP00
Price: 42,00 € : 42,00 €
-+
08
P/N (SKU): 30004-080035810
Part Name: BOLT M8x35
Effective: 2021-07-21
Remarks: null
Alternative parts: null
Specification: M8x35
Price: 1,50 € : 1,50 €
09
P/N (SKU): 30200-080810
Part Name: NUT
Effective: 2021-07-21
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
