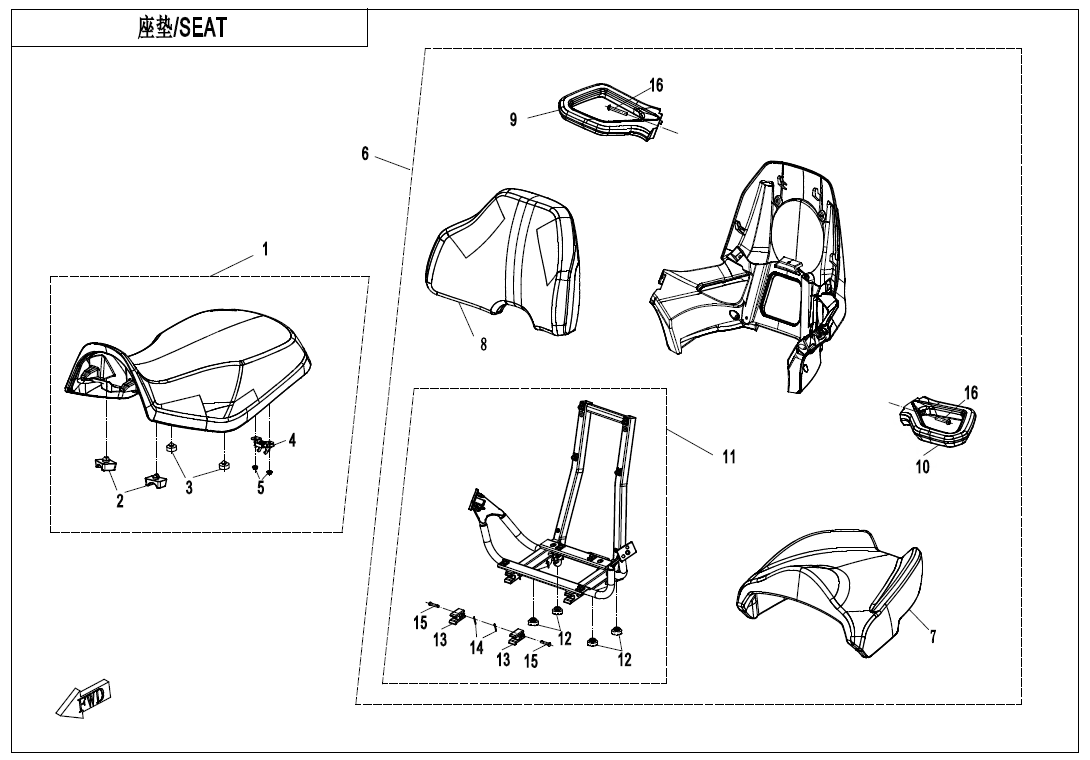

SEAT(BLACK@^GRAY) - F13-B | 2021, ATV, CF800AU-2AF | CFMOTO

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 9AWA-131000-10000

Part Name: FRONT SEAT ASSY

Effective: 2021-02-26

Alternative parts: 9AWV-131000-2C00-10

Price: 111,00 € : 111,00 €

01

P/N (SKU): 9AWV-131000-2C00-10

Part Name: FRONT SEAT ASSY

Effective: 2021-07-17

Remarks: null

Alternative parts: null

Specification: null

Price: 186,00 € : 186,00 €

02

P/N (SKU): 7020-131001

Part Name: HEAT INSULATION GASKET, MAIN SEAT

Effective: 2021-02-26

Alternative parts: null

Price: 22,00 € : 22,00 €

03

P/N (SKU): 8030-130211

Part Name: RUBBER MAT

Effective: 2021-02-26

Alternative parts: null

Specification: Ï25Ã1

Price: 1,50 € : 1,50 €

04

P/N (SKU): 9010-130110

Part Name: HOOK, FRONT SEAT

Effective: 2021-02-26

Alternative parts: null

Price: 7,00 € : 7,00 €

05

P/N (SKU): 30202-060110

Part Name: NUT

Effective: 2021-02-26

Alternative parts: 30204-060810

Specification: M6@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

06

P/N (SKU): 9AWA-132000-40000

Part Name: PASSENGER SEAT ASSY

Effective: 2021-02-26

Alternative parts: 9AWV-132000-2E00-10

Price: 436,00 € : 436,00 €

07

P/N (SKU): 9AWA-132100-20000

Part Name: REAR SEAT ASSY

Effective: 2021-02-26

Alternative parts: null

Price: 84,00 € : 84,00 €

08

P/N (SKU): 9AWA-132200-20000

Part Name: REAR BACKREST ASSY

Effective: 2021-02-26

Alternative parts: null

Price: 110,00 € : 110,00 €

09

P/N (SKU): 9AWA-132500-10000

Part Name: RH ARMREST ASSY

Effective: 2021-02-26

Alternative parts: null

Price: 74,00 € : 74,00 €

10

P/N (SKU): 9AWA-132400-10000

Part Name: LH ARMREST

Effective: 2021-02-26

Alternative parts: null

Price: 74,00 € : 74,00 €

11

P/N (SKU): 9AWA-132300-10000

Part Name: REAR SEAT BRACKET ASSY

Effective: 2021-02-26

Alternative parts: null

Price: 115,00 € : 115,00 €

12

P/N (SKU): 9AWA-132334-10000

Part Name: RUBBER DAMPER

Effective: 2021-02-26

Alternative parts: null

Price: 6,00 € : 6,00 €

13

P/N (SKU): 9AWA-132333

Part Name: LIMIT BLOCK

Effective: 2021-02-26

Alternative parts: null

Price: 3,50 € : 3,50 €

14

P/N (SKU): 30903-0161610

Part Name: COTTER PIN

Effective: 2021-02-26

Alternative parts: null

Specification: 16x16

Price: 1,50 € : 1,50 €

15

P/N (SKU): 30904-0603010

Part Name: PIN SHAFT

Effective: 2021-02-26

Alternative parts: null

Specification: 60x30

Price: 2,50 € : 2,50 €

16

P/N (SKU): 30121-100045170

Part Name: SCREW

Effective: 2021-02-26

Alternative parts: null

Specification: M10x45

Price: 2,50 € : 2,50 €
