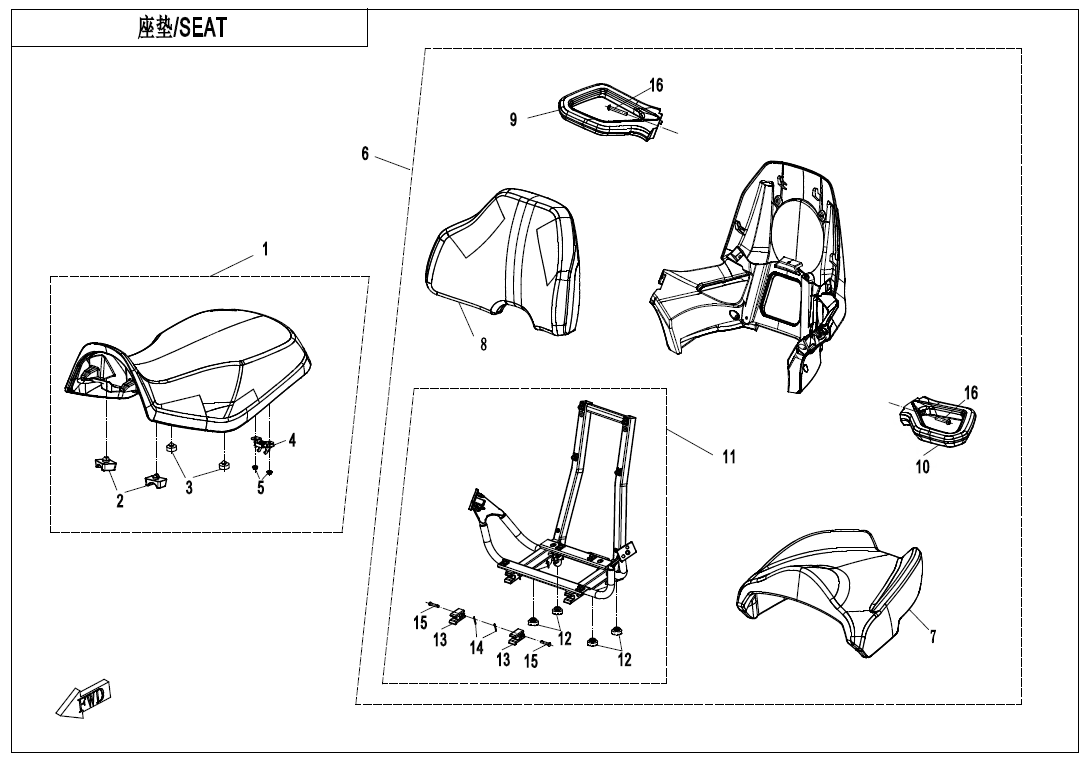

SEAT -BLACK AND GRAY - F13-B-V2 | 2021, ATV, CF800ATR-3 |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 9AW3-131000-10000

Part Name: FRONT SEAT ASSY

Alternative parts:

Price: 164,40 € : 164,40 €

02

P/N (SKU): 7020-131001

Part Name: HEAT INSULATION GASKET, MAIN SEAT

Alternative parts:

Price: 21,30 € : 21,30 €

03

P/N (SKU): 8030-130211

Part Name: CUSHION RUBBER WAHSER

Alternative parts:

Price: 1,05 € : 1,05 €

04

P/N (SKU): 9010-130110

Part Name: HOOK, FRONT SEAT

Alternative parts:

Price: 6,55 € : 6,55 €

05

P/N (SKU): 30202-060110

Part Name: NUT M6

Alternative parts: 30204-060810

Specification: M6

Price: 0,55 € : 0,55 €

06

P/N (SKU): 9AWA-132000-30000

Part Name: REAR SEAT ASSY

Alternative parts:

Price: 559,10 € : 559,10 €

07

P/N (SKU): 9AWA-132100-10000

Part Name: REAR SEAT

Alternative parts:

Price: 93,10 € : 93,10 €

08

P/N (SKU): 9AWA-132200-10000

Part Name: REAR BACKREST

Alternative parts:

Price: 131,50 € : 131,50 €

09

P/N (SKU): 9AWA-132500-10000

Part Name: RH ARMREST

Alternative parts:

Price: 72,30 € : 72,30 €

10

P/N (SKU): 9AWA-132400-10000

Part Name: LH ARMREST

Alternative parts:

Price: 72,30 € : 72,30 €

11

P/N (SKU): 9AWA-132300-10000

Part Name: REAR SEAT BRACKET ASSY

Alternative parts:

Price: 112,30 € : 112,30 €

12

P/N (SKU): 9AWA-132334-10000

Part Name: RUBBER MAT

Alternative parts:

Price: 4,40 € : 4,40 €

13

P/N (SKU): 9AWA-132333

Part Name: LIMIT BLOCK

Alternative parts:

Price: 2,20 € : 2,20 €

14

P/N (SKU): 30903-0161610

Part Name: COTTER PIN

Alternative parts:

Specification: 16x16

Price: 0,55 € : 0,55 €

15

P/N (SKU): 30904-0603010

Part Name: PIN SHAFT

Alternative parts:

Specification: 60x30

Price: 1,50 € : 1,50 €

16

P/N (SKU): 30121-100045170

Part Name: SCREW M10x45

Alternative parts:

Specification: M10x45

Price: 1,50 € : 1,50 €
