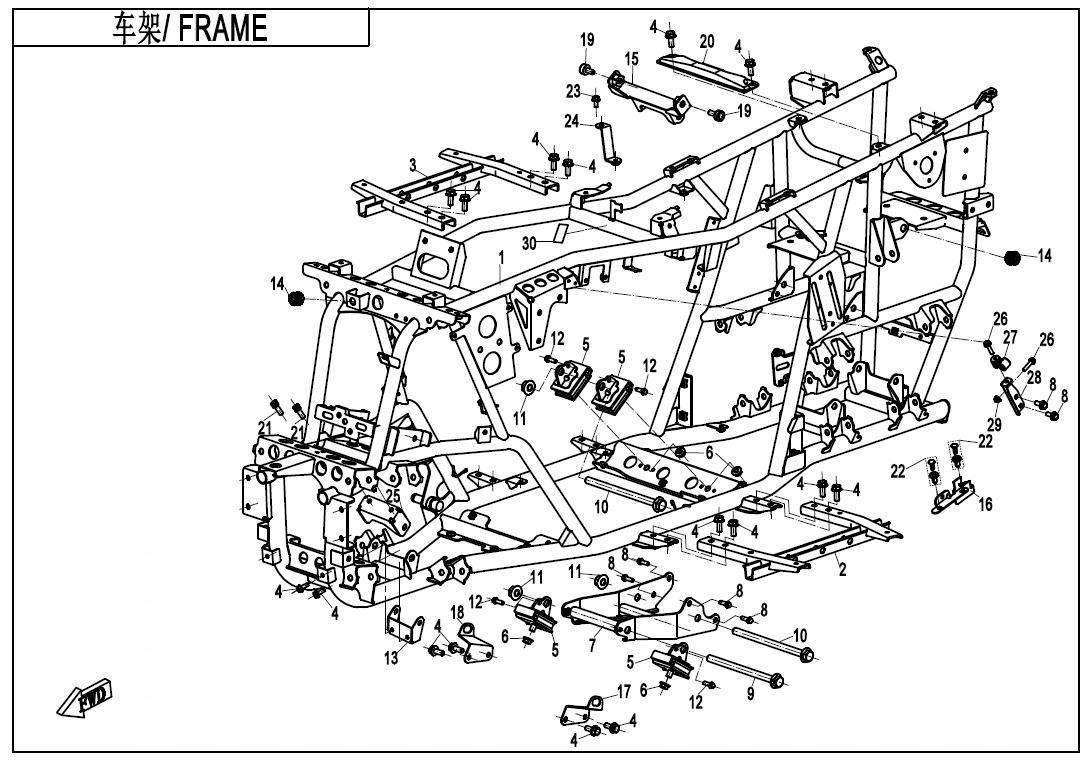

FRAME - F03 | 2021, ATV, CF500AU-7SF

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 9GQ0-031000-A0000

Part Name: FRAME

Effective: 2021-02-26

Alternative parts:

Price: 735,40 € : 735,40 €

P/N (SKU): 9GQ0-039100

Part Name: FOOT PEDAL, LH

Effective: 2021-02-26

Alternative parts:

Price: 17,60 € : 17,60 €

P/N (SKU): 9GQ0-039200

Part Name: FOOT PEDAL, RH

Effective: 2021-02-26

Alternative parts:

Price: 17,60 € : 17,60 €

P/N (SKU): 30006-080020810

Part Name: BOLT M8x20

Effective: 2021-02-26

Alternative parts:

Specification: M8x20

Price: 0,85 € : 0,85 €

P/N (SKU): 401B-000200-10000

Part Name: DAMPER

Effective: 2021-02-26

Alternative parts:

Price: 12,10 € : 12,10 €

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Effective: 2021-02-26

Alternative parts:

Specification: M10x1.25

Price: 0,55 € : 0,55 €

P/N (SKU): 9CR6-001100-20000

Part Name: FRONT BRACKET, ENGINE

Effective: 2021-02-26

Alternative parts:

Price: 25,50 € : 25,50 €

P/N (SKU): 30006-103020810

Part Name: BOLT M10x20

Effective: 2021-02-26

Alternative parts:

Specification: M10x20

Price: 0,95 € : 0,95 €

P/N (SKU): 30006-122170810

Part Name: BOLT M12x1.25x170

Effective: 2021-02-26

Alternative parts:

Specification: M12x1.25x170

Price: 3,30 € : 3,30 €

P/N (SKU): 30006-122180810

Part Name: BOLT M12x1.25x180

Effective: 2021-02-26

Alternative parts:

Specification: M12x1.25x180

Price: 3,70 € : 3,70 €

P/N (SKU): 30204-122810

Part Name: NUT M12x1.25

Effective: 2021-02-26

Alternative parts:

Specification: M12x1.25

Price: 1,05 € : 1,05 €

P/N (SKU): 30102-060012810

Part Name: SCREW

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 9GQ0-030110

Part Name: LOWER BRACKET,FRONT GEAR CASE

Effective: 2021-02-26

Alternative parts:

Price: 2,95 € : 2,95 €

P/N (SKU): 5020-031001

Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET

Effective: 2021-02-26

Alternative parts:

Price: 1,65 € : 1,65 €

P/N (SKU): 9GQ0-030070-10000

Part Name: UPPER LINK SEAT, REAR GEAR CASE

Effective: 2021-02-26

Alternative parts:

Price: 5,90 € : 5,90 €

P/N (SKU): 9GQA-030020

Part Name: BRACKET ASSY, ECU

Effective: 2021-02-26

Alternative parts:

Price: 2,20 € : 2,20 €

P/N (SKU): 9GQ0-030004

Part Name: BRACKET, LH INNER FENDER

Effective: 2021-02-26

Alternative parts:

Price: 1,85 € : 1,85 €

P/N (SKU): 9GQ0-030005

Part Name: BRACKET, INNER FENDER(RH)

Effective: 2021-02-26

Alternative parts:

Price: 1,85 € : 1,85 €

P/N (SKU): 30102-102020810

Part Name: SCREW M10x1.25x20

Effective: 2021-02-26

Alternative parts:

Specification: M10x1.25x20

Price: 2,05 € : 2,05 €

P/N (SKU): 9GQ0-030010-10000

Part Name: FIXING BRACKET,SEAT

Effective: 2021-02-26

Alternative parts:

Price: 4,40 € : 4,40 €

P/N (SKU): 30102-080020110

Part Name: SCREW M8x20

Effective: 2021-02-26

Alternative parts: 30102-080020810

Specification: M8x20

Price: 0,95 € : 0,95 €

P/N (SKU): 9060-040310

Part Name: PLASTIC CLIPS

Effective: 2021-02-26

Alternative parts:

Price: 1,65 € : 1,65 €

P/N (SKU): 30006-060012810

Part Name: BOLT M6x12

Effective: 2021-02-26

Alternative parts: 30006-060012870

Specification: M6x12

Price: 0,55 € : 0,55 €

P/N (SKU): 9GQ0-030080

Part Name: LINKING BRACKET, AIR FILTER

Effective: 2021-02-26

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 9GQ0-030050-10000

Part Name: UPPER BRACKET, FRONT GEAR CASE

Effective: 2021-02-26

Alternative parts:

Price: 6,25 € : 6,25 €

P/N (SKU): 30006-080035810

Part Name: BOLT M8x35

Effective: 2021-02-26

Alternative parts:

Specification: M8x35

Price: 0,55 € : 0,55 €

P/N (SKU): 7020-000160

Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET

Effective: 2021-02-26

Alternative parts:

Price: 6,10 € : 6,10 €

P/N (SKU): 9DR7-030120

Part Name: SIDE SUPPORT ASSY

Effective: 2021-02-26

Alternative parts:

Price: 10,65 € : 10,65 €

P/N (SKU): 30204-080810

Part Name: NUT M8

Effective: 2021-02-26

Alternative parts:

Specification: M8

Price: 0,85 € : 0,85 €

P/N (SKU): 6NQ0-190005

Part Name: GLUE FILM, REAR FORK

Effective: 2021-02-26

Alternative parts:

Price: 1,50 € : 1,50 €
