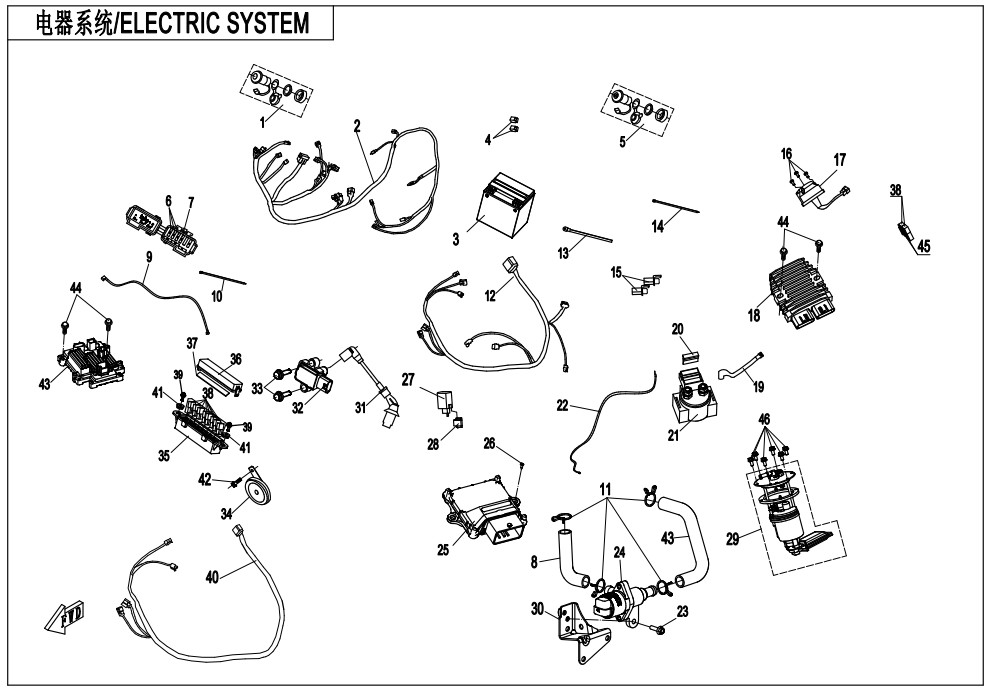

ELECTRIC SYSTEM - F15-1-V3

ELECTRIC SYSTEM - F15-1-V3

No.

01
P/N (SKU): 9GQ0-150500-10000
Part Name: OUTPUT SEAT,POWER
Effective: 2021-02-26
Alternative parts:
Price: 13,55 € : 13,55 €
-+
02
P/N (SKU): 9GQB-150100-B0000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: LOF, FOR NEW FOGLIGHT
Alternative parts:
Price: 207,40 € : 207,40 €
-+
02
P/N (SKU): 9CQ#-150100-6000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: 9CQ#-150100-6001
Price: 363,60 € : 363,60 €
02
P/N (SKU): 9GQB-150100-A0000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: LOF
Alternative parts:
Price: 197,40 € : 197,40 €
-+
02
P/N (SKU): 9CQ#-150100-6001
Part Name: MAIN CABLE
Effective: 2021-07-23
Alternative parts:
Price: 363,60 € : 363,60 €
-+
03
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts:
Specification: DYNAVOLT,12V30Ah
Price: 266,90 € : 266,90 €
-+
03
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 155,00 € : 155,00 €
03
P/N (SKU): 31023002
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: YUASA, 12V30Ah
Price: 553,00 € : 553,00 €
04
P/N (SKU): 905B-150103
Part Name: PDA PLUG
Effective: 2021-02-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
05
P/N (SKU): 9GQ0-150600-10000
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 27,50 € : 27,50 €
-+
06
P/N (SKU): 806A-151303
Part Name: FUSE
Effective: 2021-02-26
Alternative parts: 806A-151305
Specification: 15A
Price: 3,70 € : 3,70 €
07
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 2,20 € : 2,20 €
-+
08
P/N (SKU): 9GQA-001002
Part Name: STEPPER MOTOR EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 11,35 € : 11,35 €
-+
09
P/N (SKU): 9GQL-150230-10000
Part Name: BATTERY NEGATIVE WIRE
Effective: 2021-02-26
Alternative parts:
Price: 17,60 € : 17,60 €
-+
10
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,30 € : 1,30 €
-+
11
P/N (SKU): 30601-117010
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: A17
Price: 1,00 € : 1,00 €
-+
12
P/N (SKU): 9GQB-150300
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Alternative parts:
Price: 84,50 € : 84,50 €
-+
13
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
14
P/N (SKU): 9010-150004
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
15
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts:
Price: 1,70 € : 1,70 €
-+
16
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M5x30@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
17
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 14,80 € : 14,80 €
-+
17
P/N (SKU): 9010-151010-1000
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: LOF
Price: 14,13 € : 14,13 €
-+
18
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: HIGH POWER, CHINESE
Price: 161,70 € : 161,70 €
-+
18
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Remarks: For 330W magneto
Alternative parts:
Specification: 330W
Price: 102,20 € : 102,20 €
-+
19
P/N (SKU): 9GQL-150210-10000
Part Name: BATTERY POSITIVE WIRE
Effective: 2021-02-26
Alternative parts:
Price: 17,60 € : 17,60 €
-+
20
P/N (SKU): 7020-150111
Part Name: CHIP-TYPE FUSE 30A
Effective: 2021-02-26
Alternative parts:
Specification: 30A
Price: 3,50 € : 3,50 €
-+
21
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 24,40 € : 24,40 €
-+
22
P/N (SKU): 9GQ0-150220
Part Name: CABLE, STARTING MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 17,30 € : 17,30 €
-+
23
P/N (SKU): 0010-023008-0010
Part Name: BOLT M6x18
Effective: 2021-02-26
Alternative parts: 0010-023008-00001
Specification: M6x18
Price: 1,00 € : 1,00 €
24
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 88,50 € : 88,50 €
-+
25
P/N (SKU): 9DR#-001000-9000
Part Name: ECU ASSY
Effective: 2021-02-26
Alternative parts: 9DR#-001000-9001
Price: 186,70 € : 186,70 €
25
P/N (SKU): 9DR#-001000-9001
Part Name: ECU ASSY
Effective: 2021-03-08
Alternative parts:
Price: 186,70 € : 186,70 €
-+
26
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
27
P/N (SKU): 8010-151000
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 5,80 € : 5,80 €
-+
28
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
29
P/N (SKU): 901F-150900-10000
Part Name: FUEL PUMP
Effective: 2021-02-26
Alternative parts:
Price: 195,20 € : 195,20 €
-+
30
P/N (SKU): 9GQA-030010-30000
Part Name: STEPPER MOTOR BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
31
P/N (SKU): 0GRB-178000
Part Name: HIGH-TENSION CABLE
Effective: 2021-02-26
Alternative parts: 0GRB-178000-10000
Price: 15,30 € : 15,30 €
32
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 39,60 € : 39,60 €
-+
33
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×25
Price: 1,00 € : 1,00 €
-+
33
P/N (SKU): 30006-060022810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×22
Price: 1,00 € : 1,00 €
-+
34
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 9,90 € : 9,90 €
-+
35
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Effective: 2021-02-26
Alternative parts:
Price: 7,20 € : 7,20 €
-+
36
P/N (SKU): 7020-040412-10000
Part Name: COVER,RELAY BOX
Effective: 2021-02-26
Alternative parts:
Price: 4,70 € : 4,70 €
-+
37
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER, RELAY BOX COVER
Effective: 2021-02-26
Alternative parts:
Price: 1,70 € : 1,70 €
-+
38
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 6,70 € : 6,70 €
-+
39
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,00 € : 1,00 €
-+
40
P/N (SKU): 9GQ0-150120
Part Name: FOG LIGHT ADAPTOR CABLE
Effective: 2021-02-26
Alternative parts:
Specification: LINK CABLE, FOG LIGHT
Price: 10,73 € : 10,73 €
-+
41
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
42
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×14
Price: 1,00 € : 1,00 €
-+
43
P/N (SKU): 9GQA-001001
Part Name: STEPPER MOTOR INLET PIPE
Effective: 2021-02-26
Alternative parts: 9GQA-001001-00001
Price: 16,92 € : 16,92 €
-+
44
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×30
Price: 1,00 € : 1,00 €
-+
45
P/N (SKU): 9010-150002
Part Name: AUXILIARY RELAY RUBBER RING
Effective: 2021-02-26
Alternative parts:
Price: 4,10 € : 4,10 €
-+
46
P/N (SKU): 30006-050014810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M5×14
Price: 1,00 € : 1,00 €
-+
