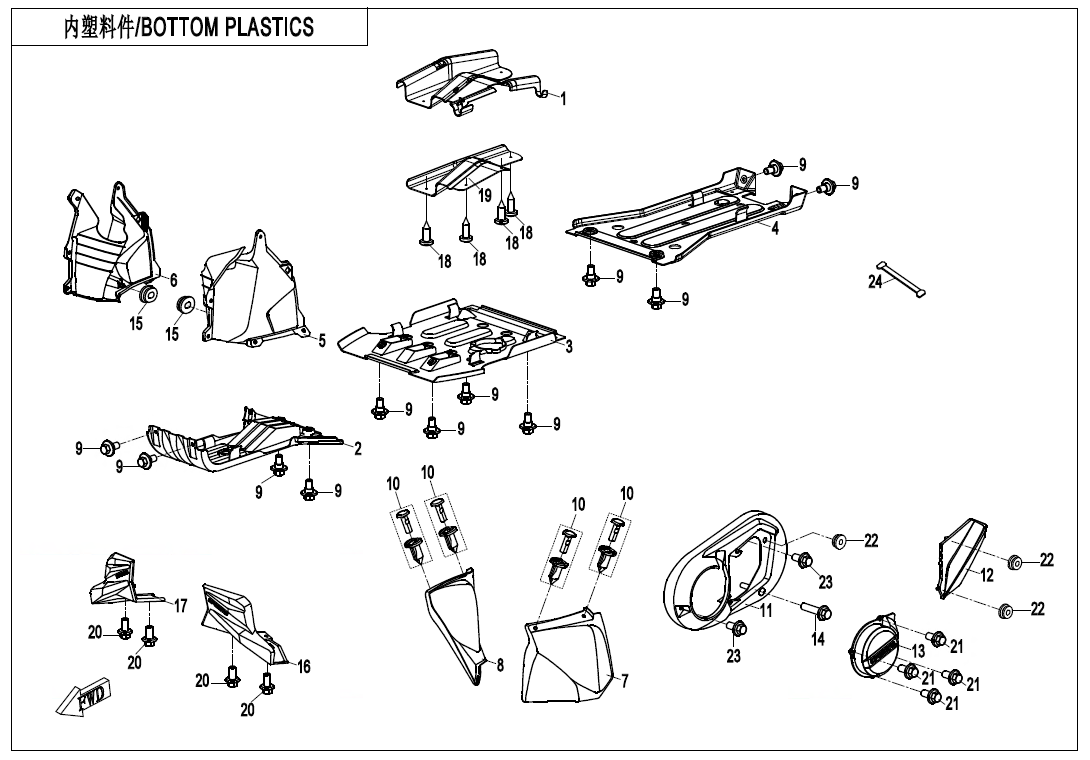

BOTTOM PLASTICS - F04-4-V4 | 2021, ATV, CF500ATR-2S |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 9GQ0-044011-20000

Part Name: LOWER PANEL, FUEL TANK

Effective: 2021-02-26

Alternative parts:

Price: 11,40 € : 11,40 €

02

P/N (SKU): 9GQ0-044021

Part Name: FRONT PANEL, ENGINE

Effective: 2021-02-26

Alternative parts:

Price: 16,30 € : 16,30 €

03

P/N (SKU): 9GQ0-044022

Part Name: MIDDLE PANEL, ENGINE

Effective: 2021-02-26

Alternative parts: 9GQV-044022-1000

Price: 17,60 € : 17,60 €

04

P/N (SKU): 9GQ0-044023-10000

Part Name: REAR PANEL, ENGINE

Effective: 2021-02-26

Alternative parts: 9GQV-044023-1000

Price: 15,80 € : 15,80 €

05

P/N (SKU): 9GQ0-044031

Part Name: FRONT UPPER INNER FENDER, LH

Effective: 2021-02-26

Alternative parts:

Price: 22,40 € : 22,40 €

06

P/N (SKU): 9GQ0-044032

Part Name: FRONT UPPER INNER FENDER, RH

Effective: 2021-02-26

Alternative parts:

Price: 9,90 € : 9,90 €

07

P/N (SKU): 9GQ0-044033-10000

Part Name: FRONT LOWER INNER FENDER,LH

Effective: 2021-02-26

Alternative parts:

Price: 6,60 € : 6,60 €

08

P/N (SKU): 9GQ0-044034-10000

Part Name: FRONT LOWER INNER FENDER,RH

Effective: 2021-02-26

Alternative parts:

Price: 6,60 € : 6,60 €

09

P/N (SKU): 8010-000004

Part Name: BOLT M6x14

Effective: 2021-02-26

Alternative parts:

Specification: M6x14

Price: 0,55 € : 0,55 €

10

P/N (SKU): 9060-040310

Part Name: PLASTIC CLIPS

Effective: 2021-02-26

Alternative parts:

Price: 1,65 € : 1,65 €

11

P/N (SKU): 9CR6-044051-10000

Part Name: LH COVER, ENGINE

Effective: 2021-02-26

Alternative parts:

Price: 10,25 € : 10,25 €

12

P/N (SKU): 9CR6-044052

Part Name: CAP, OIL FILLER

Effective: 2021-02-26

Alternative parts: 9CRV-044052-2400

Price: 8,15 € : 8,15 €

12

P/N (SKU): 9CRV-044052-2400

Part Name: CAP, OIL FILLER

Effective: 2021-11-12

Alternative parts:

Price: 8,15 € : 8,15 €

13

P/N (SKU): 9CR6-044053

Part Name: DECO COVER, MANUAL START

Effective: 2021-02-26

Alternative parts:

Price: 2,95 € : 2,95 €

14

P/N (SKU): 30006-060050810

Part Name: BOLT M6x50

Effective: 2021-02-26

Alternative parts:

Specification: M6x50

Price: 0,55 € : 0,55 €

15

P/N (SKU): 7020-040209

Part Name: FIXING RUBBER BUSHING

Effective: 2021-02-26

Alternative parts:

Price: 3,30 € : 3,30 €

16

P/N (SKU): 9GQ0-044041

Part Name: PANEL, LH FRONT SUSPENSION

Effective: 2021-02-26

Alternative parts:

Price: 5,50 € : 5,50 €

17

P/N (SKU): 9GQ0-044042

Part Name: PANEL, FRONT SUSPENSION(RH)

Effective: 2021-02-26

Alternative parts:

Price: 5,50 € : 5,50 €

18

P/N (SKU): 30110-420130010

Part Name: SCREW

Effective: 2021-02-26

Alternative parts: 30110-421130010

Specification: ST4.2x13

Price: 1,05 € : 1,05 €

19

P/N (SKU): 9GQ0-044051-20000

Part Name: LOWER HEAT INSULATOR,FUEL TANK

Effective: 2021-02-26

Alternative parts:

Price: 14,00 € : 14,00 €

20

P/N (SKU): 30006-060012810

Part Name: BOLT M6x12

Effective: 2021-02-26

Alternative parts: 30006-060012870

Specification: M6x12

Price: 0,55 € : 0,55 €

21

P/N (SKU): 0010-021019-0010

Part Name: BOLT M6x12

Effective: 2021-02-26

Alternative parts:

Specification: M6x12

Price: 0,55 € : 0,55 €

22

P/N (SKU): 0180-015003

Part Name: RUBBER BUSHING

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

23

P/N (SKU): 30006-060016810

Part Name: BOLT M6x16

Effective: 2021-02-26

Alternative parts: 30006-060016870

Specification: M6x16

Price: 0,55 € : 0,55 €

24

P/N (SKU): 9GQ0-040910

Part Name: TIE BAND, BATTERY

Effective: 2021-02-26

Alternative parts:

Price: 3,30 € : 3,30 €
