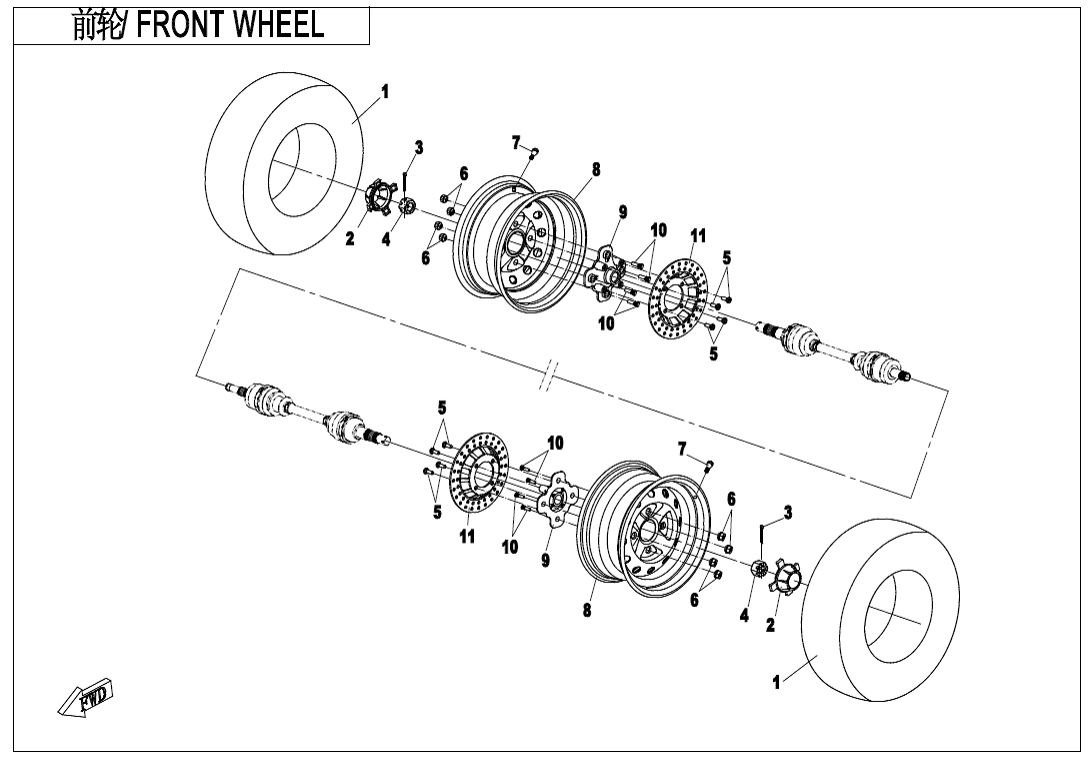

FRONT WHEEL - F07

FRONT WHEEL - F07

No.

01
P/N (SKU): 30703-1208
Part Name: FRONT TIRE
Effective: 2021-02-26
Remarks: EURO
Alternative parts:
Specification: 25x8.0-12, CST, OFF-ROAD, EURO, OVERLAPPING CURVE
Price: 147,70 € : 147,70 €
-+
01
P/N (SKU): 30703-1230
Part Name: FRONT TIRE
Effective: 2021-02-26
Alternative parts:
Specification: 25x8.0-12, MAXXIS TIRE, OFF-ROAD
Price: 144,00 € : 144,00 €
-+
01
P/N (SKU): 30703-1239
Part Name: TIRE
Effective: 2021-02-26
Remarks: EURO
Alternative parts:
Specification: 24×8-12 4PR(45J)@EURO
Price: 107,40 € : 107,40 €
-+
02
P/N (SKU): 7020-070101-1000
Part Name: DECO COVER, ALUMINUM RIM
Effective: 2021-02-26
Remarks: FOR ALUM WHEEL,WITH CF LOGO
Alternative parts:
Specification: WITH CF LOGO
Price: 14,65 € : 14,65 €
-+
02
P/N (SKU): 9010-040028-1000
Part Name: DECO COVER, STEEL RIM
Effective: 2021-02-26
Remarks: FOR STEEL WHEEL
Alternative parts: 9DQV-070101-3000
Specification: FOR 12" STEEL WHEEL
Price: 8,00 € : 8,00 €
03
P/N (SKU): 30903-0403610
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: 40x36
Price: 1,00 € : 1,00 €
-+
04
P/N (SKU): 5HY0-110001
Part Name: HEX FLANGE NUT
Effective: 2021-02-26
Alternative parts: 5HYV-110001-1F00
Price: 5,00 € : 5,00 €
-+
05
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Price: 1,30 € : 1,30 €
-+
06
P/N (SKU): 9010-070002-A000
Part Name: MOUNTING NUT, RIM
Effective: 2021-02-26
Remarks: FOR ALUM RIM
Alternative parts:
Specification: CHROME PLATED
Price: 2,30 € : 2,30 €
-+
06
P/N (SKU): 9010-070002
Part Name: MOUNTING NUT, RIM
Effective: 2021-02-26
Remarks: FOR STEEL RIM
Alternative parts:
Specification: ARMY GREEN
Price: 1,70 € : 1,70 €
-+
07
P/N (SKU): 5190-070030-1000
Part Name: VALVE, INFLATION
Effective: 2021-02-26
Alternative parts:
Price: 6,10 € : 6,10 €
-+
08
P/N (SKU): 9010-070100-2B200
Part Name: FRONT RIM
Effective: 2021-02-26
Alternative parts:
Specification: 12 IN, DOUBLE CROSS ALUM WHEEL, MATTE BLACK
Price: 110,80 € : 110,80 €
-+
08
P/N (SKU): 9010-070100-B000
Part Name: FRONT RIM
Effective: 2021-02-26
Alternative parts:
Specification: 12x6.0 AT@STEEL RIM@BLACK
Price: 95,61 € : 95,61 €
-+
08
P/N (SKU): 9010-070100-20000
Part Name: FRONT RIM
Effective: 2021-02-26
Alternative parts:
Specification: 12 IN, DOUBLE CROSS ALUM WHEEL, SUPPLIERS:Chiping xinfa
Price: 110,80 € : 110,80 €
-+
09
P/N (SKU): 9010-070001-1000
Part Name: MOUNTING BRACKET, FRONT WHEEL
Effective: 2021-02-26
Alternative parts: 9GQV-070001-1400
Specification: EXTENDED SPLINE
Price: 53,64 € : 53,64 €
-+
09
P/N (SKU): 9GQV-070001-1400
Part Name: FRONT WHEEL BRACKET
Effective: 2021-07-14
Alternative parts: 9GQV-070001-1401
Price: 42,00 € : 42,00 €
10
P/N (SKU): 9010-070201
Part Name: FRONT WHEEL BRACKET BOLT
Effective: 2021-02-26
Alternative parts:
Price: 1,70 € : 1,70 €
-+
11
P/N (SKU): 7020-080003-00001
Part Name: FRONT BRAKE DISC
Effective: 2021-02-26
Alternative parts:
Price: 26,56 € : 26,56 €
-+
