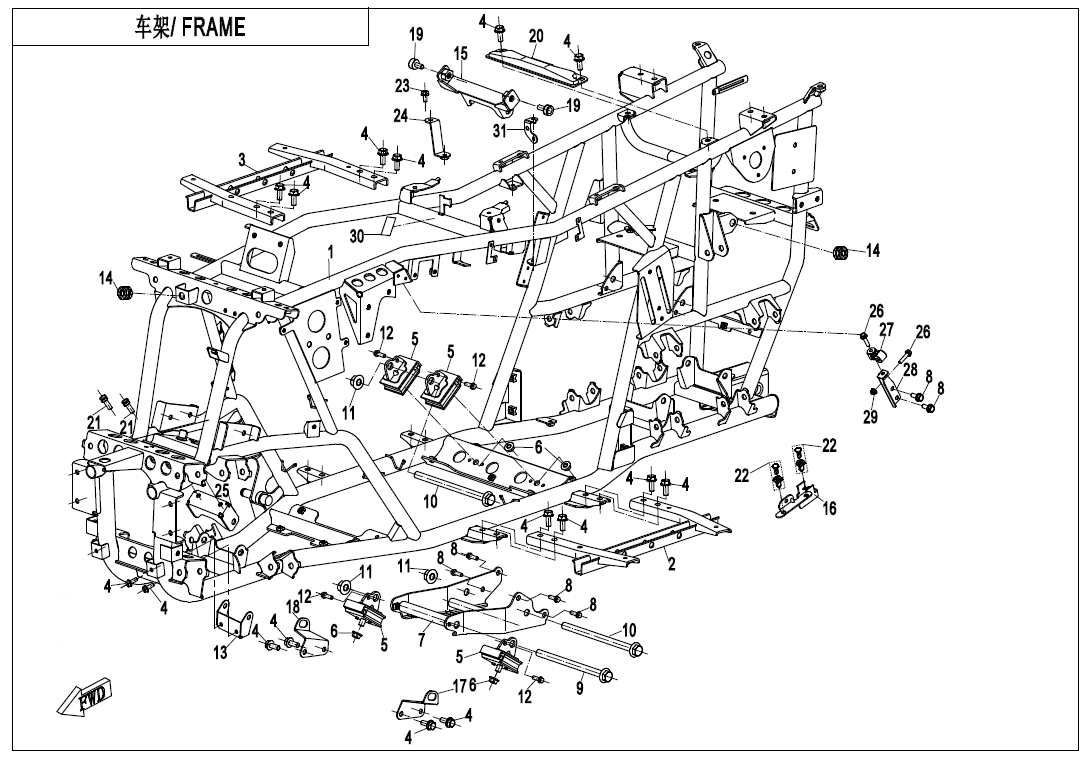

FRAME(FOR BRAZIL ONLY) - F03-B | 2021, ATV, CF400AU-SF |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 9GQ0-031000-A0000

Part Name: FRAME

Price: 748,00 € : 748,00 €

02

P/N (SKU): 9GQL-039100

Part Name: FOOT PEDAL, LH

Price: 23,00 € : 23,00 €

03

P/N (SKU): 9GQL-039200

Part Name: FOOT PEDAL, RH

Price: 23,00 € : 23,00 €

04

P/N (SKU): 30006-080020810

Part Name: BOLT M8x20

Specification: M8x20

Price: 1,50 € : 1,50 €

05

P/N (SKU): 401B-000200-10000

Part Name: DAMPER

Price: 14,00 € : 14,00 €

06

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Specification: M10x1.25

Price: 1,50 € : 1,50 €

07

P/N (SKU): 9CR6-001100-20000

Part Name: FRONT BRACKET, ENGINE

Price: 26,00 € : 26,00 €

08

P/N (SKU): 30006-103020810

Part Name: BOLT M10x20

Specification: M10x20

Price: 2,00 € : 2,00 €

09

P/N (SKU): 30006-122170810

Part Name: BOLT M12x1.25x170

Specification: M12x1.25x170

Price: 4,00 € : 4,00 €

10

P/N (SKU): 30006-122180810

Part Name: BOLT M12x1.25x180

Specification: M12x1.25x180

Price: 4,50 € : 4,50 €

11

P/N (SKU): 30204-122810

Part Name: NUT M12x1.25

Specification: M12x1.25

Price: 1,50 € : 1,50 €

12

P/N (SKU): 30102-060012810

Part Name: SCREW

Price: 1,50 € : 1,50 €

13

P/N (SKU): 9GQ0-030110

Part Name: LOWER BRACKET,FRONT GEAR CASE

Price: 4,00 € : 4,00 €

14

P/N (SKU): 5020-031001

Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET

Price: 2,00 € : 2,00 €

15

P/N (SKU): 9GQ0-030070-10000

Part Name: UPPER LINK SEAT, REAR GEAR CASE

Price: 8,50 € : 8,50 €

16

P/N (SKU): 9GQA-030020

Part Name: BRACKET ASSY, ECU

Price: 3,50 € : 3,50 €

17

P/N (SKU): 9GQ0-030004

Part Name: BRACKET, LH INNER FENDER

Price: 3,50 € : 3,50 €

18

P/N (SKU): 9GQ0-030005

Part Name: BRACKET, INNER FENDER(RH)

Price: 3,50 € : 3,50 €

19

P/N (SKU): 30102-102020810

Part Name: SCREW M10x1.25x20

Specification: M10x1.25x20

Price: 2,50 € : 2,50 €

20

P/N (SKU): 9GQ0-030010-10000

Part Name: FIXING BRACKET,SEAT

Price: 6,50 € : 6,50 €

21

P/N (SKU): 30102-080020110

Part Name: SCREW M8x20

Alternative parts: 30102-080020810

Specification: M8x20

Price: 2,00 € : 2,00 €

22

P/N (SKU): 9060-040310

Part Name: PLASTIC CLIPS

Price: 2,00 € : 2,00 €

23

P/N (SKU): 30006-060012810

Part Name: BOLT M6x12

Alternative parts: 30006-060012870

Specification: M6x12

Price: 1,50 € : 1,50 €

24

P/N (SKU): 9GQ0-030080

Part Name: LINKING BRACKET, AIR FILTER

Price: 2,50 € : 2,50 €

25

P/N (SKU): 9GQ0-030050-10000

Part Name: UPPER BRACKET, FRONT GEAR CASE

Price: 9,50 € : 9,50 €

26

P/N (SKU): 30006-080035810

Part Name: BOLT M8x35

Specification: M8x35

Price: 1,50 € : 1,50 €

27

P/N (SKU): 7020-000160

Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET

Price: 12,00 € : 12,00 €

28

P/N (SKU): 9GQ0-030120

Part Name: SIDE SUPPORT ASSY

Price: 11,00 € : 11,00 €

29

P/N (SKU): 30204-080810

Part Name: NUT M8

Specification: M8

Price: 1,50 € : 1,50 €

30

P/N (SKU): 6NQ0-190005

Part Name: GLUE FILM, REAR FORK

Price: 2,50 € : 2,50 €

31

P/N (SKU): 9GQ0-030131

Part Name: LOCK PLATE, WIRE

Price: 3,00 € : 3,00 €
