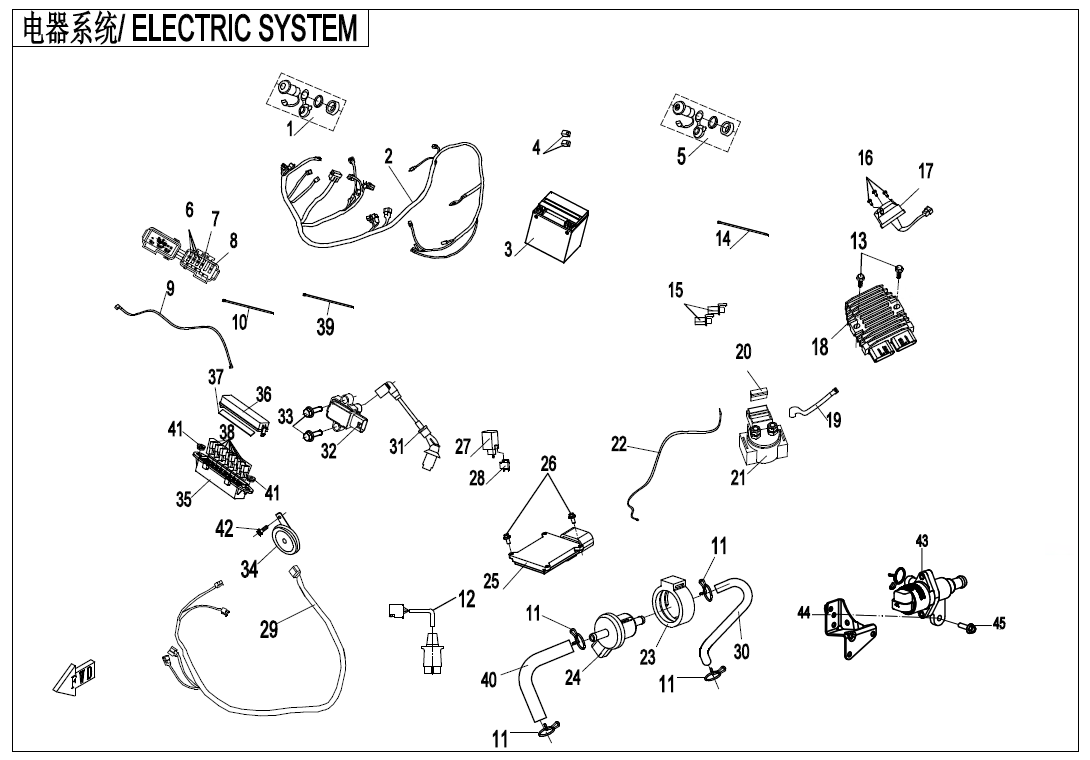

ELECTRIC SYSTEM - F15-1-V3

ELECTRIC SYSTEM - F15-1-V3

No.

01
P/N (SKU): 9GQ0-150500-10000
Part Name: OUTPUT SEAT,POWER
Price: 14,00 € : 14,00 €
-+
02
P/N (SKU): 9DQ#-150100-6000
Part Name: MAIN CABLE
Price: 382,00 € : 382,00 €
-+
03
P/N (SKU): 31023004
Part Name: BATTERY
Specification: DYNAVOLT,12V30Ah
Price: 272,00 € : 272,00 €
-+
04
P/N (SKU): 905B-150103
Part Name: PLUG, PDA
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 9GQ0-150600-10000
Part Name: OUTPUT SEAT, USB
Price: 28,00 € : 28,00 €
-+
06
P/N (SKU): 806A-151303
Part Name: FUSE
Alternative parts: 806A-151305
Specification: 15A
Price: 4,00 € : 4,00 €
07
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Specification: 10A
Price: 2,50 € : 2,50 €
-+
08
P/N (SKU): 8080-151301
Part Name: FUSE 5A
Specification: 5A
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 9GQL-150230-10000
Part Name: NEGATIVE WIRE,BATTERY
Alternative parts: 9GQL-150230-10001
Price: 18,00 € : 18,00 €
10
P/N (SKU): 8010-150003
Part Name: TIE BAND
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 30601-112010
Part Name: CLAMP A12
Specification: A12
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9010-151020
Part Name: ADAPTOR SEAT, TRAILER POWER
Price: 16,00 € : 16,00 €
-+
13
P/N (SKU): 30006-060030810
Part Name: BOLT M6x30
Specification: M6x30
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9010-150004
Part Name: TIE BAND
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 30105-050030410
Part Name: SCREW M5x30
Specification: M5x30
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 7020-150800
Part Name: POWER SOCKET, TRAILER
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
18
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Remarks: CHONGQING SANXIN FACTORY|(WITH THE LARGE POWER MAGNETO)
Specification: HIGH POWER, CHINESE
Price: 165,00 € : 165,00 €
-+
19
P/N (SKU): 9GQL-150210-10000
Part Name: POSITIVE WIRE,BATTERY
Alternative parts: 9GQL-150210-10001
Price: 18,00 € : 18,00 €
20
P/N (SKU): 7020-150111
Part Name: CHIP-TYPE FUSE 30A
Specification: 30A
Price: 4,00 € : 4,00 €
-+
21
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Price: 25,00 € : 25,00 €
-+
22
P/N (SKU): 9GQ0-150220
Part Name: CABLE, STARTING MOTOR
Price: 18,00 € : 18,00 €
-+
23
P/N (SKU): 901F-000005
Part Name: RUBBER SLEEVE, IDLE VALVE
Price: 3,00 € : 3,00 €
-+
24
P/N (SKU): 018B-172000
Part Name: AIR CONTROL VALVE, IDLE
Price: 80,00 € : 80,00 €
-+
25
P/N (SKU): 9DQ#-001000-6000
Part Name: ECU ASSY
Price: 190,00 € : 190,00 €
-+
26
P/N (SKU): 30006-050016810
Part Name: BOLT M5x16
Specification: M5x16
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 8010-151000
Part Name: FLASHER
Price: 6,00 € : 6,00 €
-+
28
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9GQ0-150120
Part Name: ADAPTOR CABLE, FOG LIGHT
Specification: LINK CABLE, FOG LIGHT
Price: 11,00 € : 11,00 €
-+
30
P/N (SKU): 9CR6-001008
Part Name: OUTLET HOSE, IDLE VALVE
Price: 5,50 € : 5,50 €
-+
31
P/N (SKU): 0GRB-178000
Part Name: HIGH-TENSION CABLE
Price: 16,00 € : 16,00 €
-+
32
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Price: 41,00 € : 41,00 €
-+
33
P/N (SKU): 30006-060025810
Part Name: BOLT M6x25
Specification: M6x25
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Price: 11,00 € : 11,00 €
-+
35
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Price: 7,50 € : 7,50 €
-+
36
P/N (SKU): 7020-040412-10000
Part Name: COVER,RELAY BOX
Price: 5,00 € : 5,00 €
-+
37
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER, RELAY BOX COVER
Price: 2,00 € : 2,00 €
-+
38
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Price: 7,00 € : 7,00 €
-+
39
P/N (SKU): 0000-000014
Part Name: TIE BAND
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): 9CR6-001007
Part Name: INLET HOSE, IDLE VALVE
Price: 10,00 € : 10,00 €
-+
41
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 30006-060016810
Part Name: BOLT M6x16
Alternative parts: 30006-060016870
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR
Price: 90,00 € : 90,00 €
-+
44
P/N (SKU): 9GQA-030010-30000
Part Name: BRACKET ASSY, STEPPER MOTOR
Price: 4,50 € : 4,50 €
-+
45
P/N (SKU): 30006-060020810
Part Name: BOLT M6x20
Alternative parts: 30006-060020870
Specification: M6x20
Price: 1,50 € : 1,50 €
