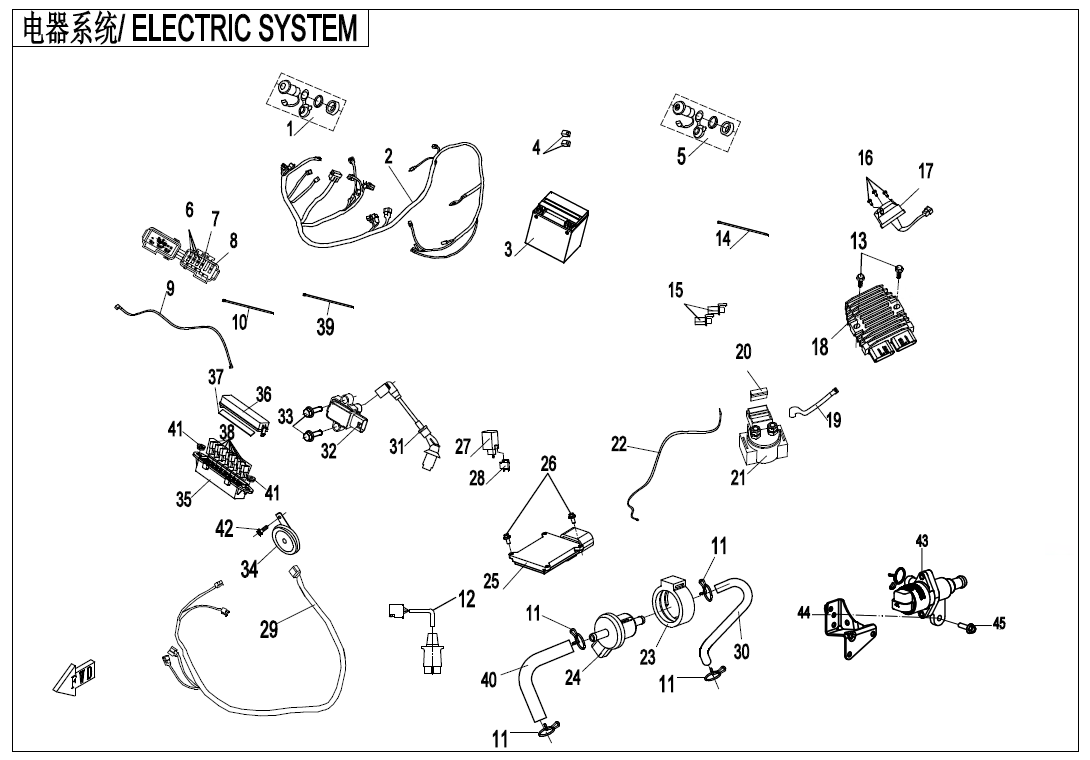

ELECTRIC SYSTEM - F15-1-V3 | 2021, ATV, CF400AU-LF

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 9GQ0-150500-10000

Part Name: OUTPUT SEAT,POWER

Alternative parts:

Price: 12,50 € : 12,50 €

P/N (SKU): 9CQ#-150100-6000

Part Name: MAIN CABLE

Alternative parts:

Price: 363,60 € : 363,60 €

P/N (SKU): 31023004

Part Name: BATTERY

Alternative parts:

Specification: DYNAVOLT,12V30Ah

Price: 266,90 € : 266,90 €

P/N (SKU): 905B-150103

Part Name: PLUG, PDA

Alternative parts:

Price: 0,75 € : 0,75 €

P/N (SKU): 9GQ0-150600-10000

Part Name: OUTPUT SEAT, USB

Alternative parts:

Price: 27,50 € : 27,50 €

P/N (SKU): 806A-151303

Part Name: FUSE

Alternative parts: 806A-151305

Specification: 15A

Price: 3,70 € : 3,70 €

P/N (SKU): 806A-151302

Part Name: FUSE 10A

Alternative parts:

Specification: 10A

Price: 1,50 € : 1,50 €

P/N (SKU): 8080-151301

Part Name: FUSE 5A

Alternative parts:

Specification: 5A

Price: 0,40 € : 0,40 €

P/N (SKU): 9GQL-150230-10000

Part Name: NEGATIVE WIRE,BATTERY

Alternative parts: 9GQL-150230-10001

Price: 17,30 € : 17,30 €

P/N (SKU): 8010-150003

Part Name: TIE BAND

Alternative parts:

Specification: 5x250

Price: 1,10 € : 1,10 €

P/N (SKU): 30601-112010

Part Name: CLAMP A12

Alternative parts:

Specification: A12

Price: 0,40 € : 0,40 €

P/N (SKU): 9010-151020

Part Name: ADAPTOR SEAT, TRAILER POWER

Alternative parts:

Price: 13,20 € : 13,20 €

P/N (SKU): 30006-060030810

Part Name: BOLT M6x30

Alternative parts:

Specification: M6x30

Price: 0,40 € : 0,40 €

P/N (SKU): 9010-150004

Part Name: TIE BAND

Alternative parts:

Price: 0,40 € : 0,40 €

P/N (SKU): 6090-150500

Part Name: DIODE, STARTER

Alternative parts:

Price: 2,45 € : 2,45 €

P/N (SKU): 30105-050030410

Part Name: SCREW M5x30

Alternative parts:

Specification: M5x30

Price: 0,40 € : 0,40 €

P/N (SKU): 7020-150800

Part Name: POWER SOCKET, TRAILER

Alternative parts:

Specification: ORDINARY

Price: 12,10 € : 12,10 €

P/N (SKU): 0800-177000-10000

Part Name: REGULATOR

Remarks: CHONGQING SANXIN FACTORY|(WITH THE LARGE POWER MAGNETO)

Alternative parts:

Specification: HIGH POWER, CHINESE

Price: 161,70 € : 161,70 €

P/N (SKU): 9GQL-150210-10000

Part Name: POSITIVE WIRE,BATTERY

Alternative parts: 9GQL-150210-10001

Price: 17,30 € : 17,30 €

P/N (SKU): 7020-150111

Part Name: CHIP-TYPE FUSE 30A

Alternative parts:

Specification: 30A

Price: 2,60 € : 2,60 €

P/N (SKU): 9CR6-150310

Part Name: STARTER RELAY

Alternative parts:

Price: 24,40 € : 24,40 €

P/N (SKU): 9GQ0-150220

Part Name: CABLE, STARTING MOTOR

Alternative parts:

Price: 15,30 € : 15,30 €

P/N (SKU): 901F-000005

Part Name: RUBBER SLEEVE, IDLE VALVE

Alternative parts:

Price: 1,10 € : 1,10 €

P/N (SKU): 018B-172000

Part Name: AIR CONTROL VALVE, IDLE

Alternative parts:

Price: 55,30 € : 55,30 €

P/N (SKU): 9DQ#-001000-6000

Part Name: ECU ASSY

Alternative parts:

Price: 186,70 € : 186,70 €

P/N (SKU): 30006-050016810

Part Name: BOLT M5x16

Alternative parts:

Specification: M5x16

Price: 0,40 € : 0,40 €

P/N (SKU): 8010-151000

Part Name: FLASHER

Alternative parts:

Price: 4,05 € : 4,05 €

P/N (SKU): 8010-150002

Part Name: CUSHION WASHER, FLASHER

Alternative parts:

Price: 0,40 € : 0,40 €

P/N (SKU): 9GQ0-150120

Part Name: ADAPTOR CABLE, FOG LIGHT

Alternative parts:

Specification: LINK CABLE, FOG LIGHT

Price: 7,70 € : 7,70 €

P/N (SKU): 9CR6-001008

Part Name: OUTLET HOSE, IDLE VALVE

Alternative parts:

Price: 4,05 € : 4,05 €

P/N (SKU): 0GRB-178000

Part Name: HIGH-TENSION CABLE

Alternative parts:

Price: 15,30 € : 15,30 €

P/N (SKU): 018B-178000

Part Name: IGNITION COIL

Alternative parts:

Price: 35,60 € : 35,60 €

P/N (SKU): 30006-060025810

Part Name: BOLT M6x25

Alternative parts:

Specification: M6x25

Price: 0,40 € : 0,40 €

P/N (SKU): 5020-150700

Part Name: ELECTRIC HORN

Alternative parts:

Price: 7,00 € : 7,00 €

P/N (SKU): 7020-040411

Part Name: RELAY BOX

Alternative parts:

Price: 7,15 € : 7,15 €

P/N (SKU): 7020-040412-10000

Part Name: COVER,RELAY BOX

Alternative parts:

Price: 3,70 € : 3,70 €

P/N (SKU): 7020-040414

Part Name: RUBBER WASHER, RELAY BOX COVER

Alternative parts:

Price: 1,10 € : 1,10 €

P/N (SKU): 9010-150350

Part Name: AUXILIARY RELAY

Alternative parts:

Price: 6,65 € : 6,65 €

P/N (SKU): 0000-000014

Part Name: TIE BAND

Alternative parts:

Price: 0,75 € : 0,75 €

P/N (SKU): 9CR6-001007

Part Name: INLET HOSE, IDLE VALVE

Alternative parts:

Price: 7,00 € : 7,00 €

P/N (SKU): 0180-015003

Part Name: RUBBER SLEEVE

Alternative parts:

Price: 0,95 € : 0,95 €

P/N (SKU): 30006-060016810

Part Name: BOLT M6x16

Alternative parts: 30006-060016870

Specification: M6x16

Price: 0,40 € : 0,40 €

P/N (SKU): 0GQ0-175000

Part Name: STEPPER MOTOR

Alternative parts:

Price: 88,50 € : 88,50 €

P/N (SKU): 9GQA-030010-30000

Part Name: BRACKET ASSY, STEPPER MOTOR

Alternative parts:

Price: 3,70 € : 3,70 €

P/N (SKU): 30006-060020810

Part Name: BOLT M6x20

Alternative parts: 30006-060020870

Specification: M6x20

Price: 0,40 € : 0,40 €
