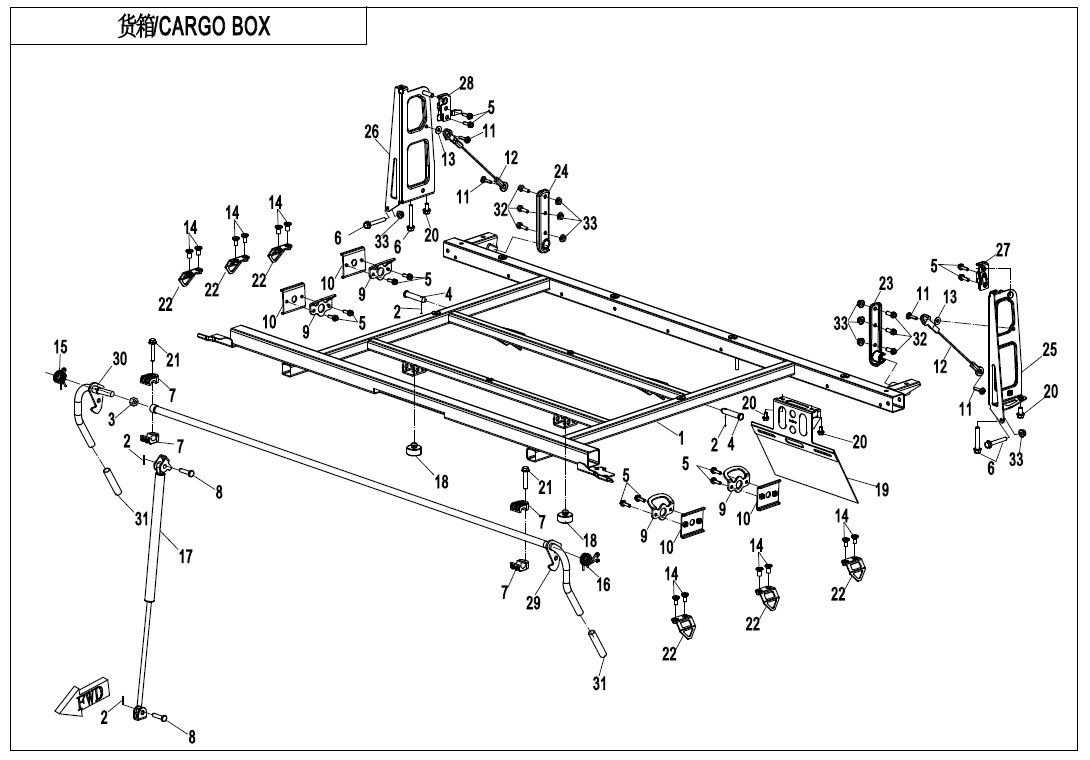

CARGO BOX - F22-2-V1

CARGO BOX - F22-2-V1

No.

01
P/N (SKU): 5HY0-221000
Part Name: BASE FRAME ASSY
Effective: 2021-02-26
Alternative parts: 5HY#-223021-1002+5HYV-220004-1C00+5HYV-221000-1C00+5HYV-223031-1C00+5HYV-223032-1C00
Price: 196,20 € : 196,20 €
02
P/N (SKU): 30910-0183220
Part Name: LOCK PIN
Effective: 2021-02-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
03
P/N (SKU): 30211-123810
Part Name: NUT M12x1.5
Effective: 2021-02-26
Alternative parts:
Specification: M12x1.5
Price: 2,70 € : 2,70 €
-+
04
P/N (SKU): 9030-220011
Part Name: PIN SAHFT, ROTATION
Effective: 2021-02-26
Alternative parts: 9030-220011-00001
Specification: COLOR ZINC
Price: 2,40 € : 2,40 €
04
P/N (SKU): 9030-220011-00001
Part Name: PIN SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: COLOR ZINC TRIVALENT CHROMIUM
Price: 2,40 € : 2,40 €
-+
05
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,00 € : 1,00 €
06
P/N (SKU): 30006-080055810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×55
Price: 1,80 € : 1,80 €
-+
07
P/N (SKU): 7030-221123
Part Name: COLLAR, ROTATE SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 1,60 € : 1,60 €
-+
08
P/N (SKU): 7030-222251
Part Name: GAS SPRING PIN SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 2,40 € : 2,40 €
-+
09
P/N (SKU): 9030-220004
Part Name: BAND HOOK
Effective: 2021-02-26
Alternative parts:
Price: 2,40 € : 2,40 €
-+
10
P/N (SKU): 7030-221140
Part Name: HOOK MOUNTING BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 4,80 € : 4,80 €
-+
11
P/N (SKU): 7030-010508
Part Name: TAIL BOX CABLE BOLT
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
12
P/N (SKU): 7030-010500
Part Name: TAIL BOX FIXING CABLE
Effective: 2021-02-26
Alternative parts: 7030-010500-10000
Price: 10,50 € : 10,50 €
12
P/N (SKU): 7030-010500-10000
Part Name: TAIL BOX FIXING CABLE
Effective: 2021-02-26
Alternative parts:
Price: 13,55 € : 13,55 €
-+
13
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
14
P/N (SKU): 7030-220113
Part Name: BOLT M8x20
Effective: 2021-02-26
Alternative parts:
Specification: M8x20
Price: 1,80 € : 1,80 €
-+
15
P/N (SKU): 5HY0-220007
Part Name: RH TORSIONAL SPRING
Effective: 2021-02-26
Alternative parts: 5HYV-220007-1P00
Price: 1,00 € : 1,00 €
-+
16
P/N (SKU): 5HY0-220006
Part Name: TORSIONAL SPRING, LH
Effective: 2021-02-26
Alternative parts: 5HYV-220006-1P00
Price: 1,00 € : 1,00 €
-+
17
P/N (SKU): 5HY0-222080
Part Name: AIR SPRING
Effective: 2021-02-26
Alternative parts: 5HY0-222080-20000
Price: 22,70 € : 22,70 €
-+
18
P/N (SKU): 5HY0-220004
Part Name: RUBBER MAT
Effective: 2021-02-26
Alternative parts:
Price: 2,70 € : 2,70 €
-+
19
P/N (SKU): 5HY0-220001
Part Name: BRACKET, REAR LICENCE
Effective: 2021-02-26
Alternative parts: 5HY0-220001-10000
Price: 28,60 € : 28,60 €
19
P/N (SKU): 5HY0-220001-10000
Part Name: BRACKET, REAR LICENCE
Effective: 2021-02-26
Alternative parts: 5HY0-220001-20000
Price: 27,90 € : 27,90 €
20
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,00 € : 1,00 €
-+
21
P/N (SKU): 30006-080045810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,80 € : 1,80 €
-+
22
P/N (SKU): 5HY0-222010
Part Name: CARGO BOX HOOK ASSY
Effective: 2021-02-26
Alternative parts:
Price: 12,50 € : 12,50 €
-+
23
P/N (SKU): 5HY0-222020
Part Name: CARGO BOX DOOR LH BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 26,40 € : 26,40 €
-+
24
P/N (SKU): 5HY0-222030
Part Name: CARGO BOX DOOR RH BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 26,40 € : 26,40 €
-+
25
P/N (SKU): 5HY0-222040
Part Name: LEFT PROTECTION PLATE
Effective: 2021-02-26
Alternative parts:
Price: 39,90 € : 39,90 €
-+
26
P/N (SKU): 5HY0-222050
Part Name: RIGHT PROTECTION PLATE
Effective: 2021-02-26
Alternative parts:
Price: 39,90 € : 39,90 €
-+
27
P/N (SKU): 5HY0-222060
Part Name: LOCK, LH REAR DOOR
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
28
P/N (SKU): 5HY0-222070
Part Name: REAR RH DOOR LOCK
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
29
P/N (SKU): 5HY0-222110
Part Name: LH ROTATION SHAFT ASSY
Effective: 2021-02-26
Alternative parts:
Price: 37,00 € : 37,00 €
-+
30
P/N (SKU): 5HY0-222120
Part Name: RH ROTATION SHAFT ASSY
Effective: 2021-02-26
Alternative parts:
Price: 28,60 € : 28,60 €
-+
31
P/N (SKU): 7030-220104
Part Name: ROTATE SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 1,60 € : 1,60 €
-+
32
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×20
Price: 1,00 € : 1,00 €
-+
33
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,00 € : 1,00 €
-+
