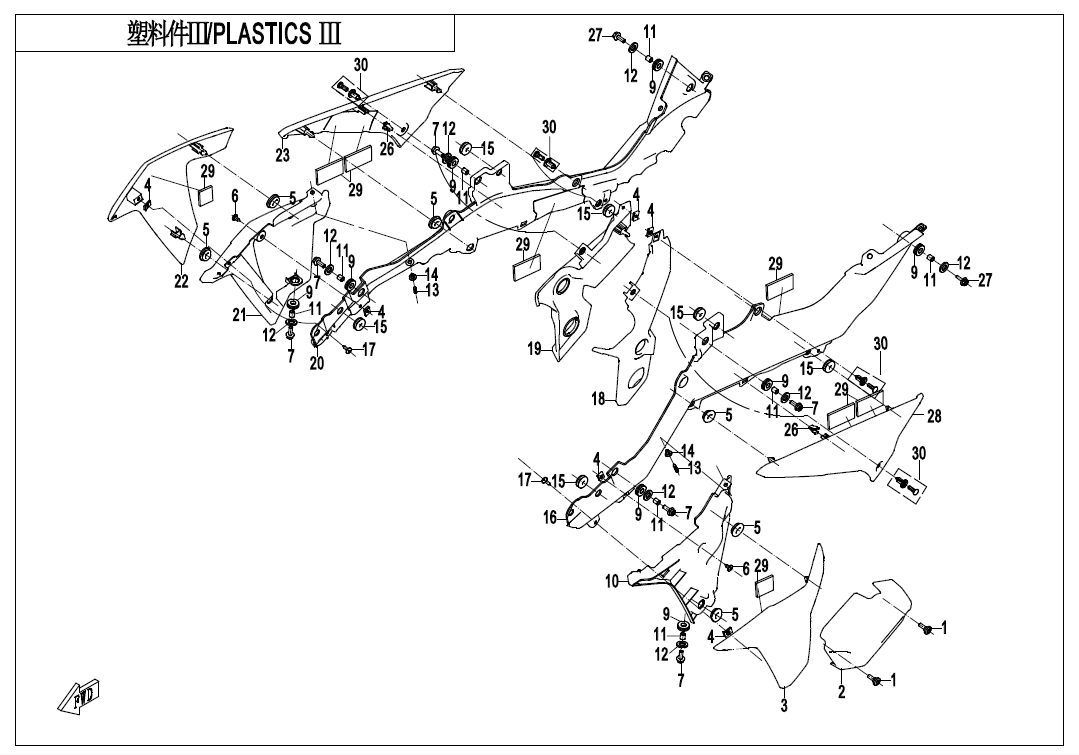

PLASTICS3 - F04-3-V1

PLASTICS3 - F04-3-V1

No.

01
P/N (SKU): 6KM0-060002
Part Name: CHAIN GUARD SCREW
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
02
P/N (SKU): 6KM0-043701
Part Name: CANISTER DECO COVER
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
03
P/N (SKU): 6KM0-041202-0H300
Part Name: LH OUTER PANEL, RESERVOIR TANK
Effective: 2021-02-26
Alternative parts: null
Specification: SILVER BLACK
Price: 28,00 € : 28,00 €
03
P/N (SKU): 6KM0-041202-0MP00
Part Name: WATER TANK LH OUTER PANEL
Effective: 2021-02-26
Remarks: NO PAINTED
Alternative parts: null
Price: 5,00 € : 5,00 €
03
P/N (SKU): 6KM0-041202-0BM00
Part Name: LH OUTER PANEL, RESERVOIR TANK
Effective: 2021-02-26
Alternative parts: null
Specification: NEBULA BLACK
Price: 40,00 € : 40,00 €
04
P/N (SKU): 8080-000002
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts: null
Specification: ST4.8
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 8080-040064
Part Name: FRONT FENDER DAMPER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 30110-481130010
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: 30110-480130010
Specification: ST4.8x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
09
P/N (SKU): 9010-160101
Part Name: HEADLIGHT RUBBER DAMPER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 6KM0-041201
Part Name: RESERVOIR LH INNER PANEL
Effective: 2021-02-26
Alternative parts: null
Price: 6,00 € : 6,00 €
11
P/N (SKU): 6090-040303
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0700-022016
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: 10.5x19x2.3
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 8080-041131
Part Name: PLASTIC STUD
Effective: 2021-02-26
Alternative parts: 8080-041130
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 8080-041132
Part Name: PLASTIC STUD SEAT
Effective: 2021-02-26
Alternative parts: 8080-041130
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): A000-040302
Part Name: RUBBER DAMPER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
16
P/N (SKU): 6KM0-041601-2H300
Part Name: LH PANEL
Effective: 2021-02-26
Remarks: Use with 6KM0-030100-2B200
Alternative parts: 6KMV-041601-6001-0H300+6KMV-042001-6000+6KMV-043001-6000
Specification: SILVER BLACK
Price: 65,00 € : 65,00 €
16
P/N (SKU): 6KM0-041601-2H700
Part Name: LH PANEL
Effective: 2021-02-26
Remarks: Use with 6KM0-030100-2B200
Alternative parts: 6KMV-041601-6001-0H700+6KMV-042001-6000+6KMV-043001-6000
Specification: SILVER GREY
Price: 62,00 € : 62,00 €
16
P/N (SKU): 6KM#-041601-6000-0H300
Part Name: LH PANEL
Effective: 2021-02-26
Alternative parts: 6KMV-041601-6001-0H300+6KMV-042001-6000+6KMV-043001-6000
Specification: SILVER BLACK
Price: 42,00 € : 42,00 €
16
P/N (SKU): 6KM#-041601-6000-0H700
Part Name: LH PANEL
Effective: 2021-02-26
Alternative parts: 6KMV-041601-6001-0H700+6KMV-042001-6000+6KMV-043001-6000
Specification: MATTE SILVER
Price: 42,00 € : 42,00 €
17
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: null
Specification: ST4.8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 6KM0-043001-10000
Part Name: FRAME LH PANEL
Effective: 2021-02-26
Alternative parts: 6KMV-043001-6000
Price: 8,00 € : 8,00 €
19
P/N (SKU): 6KM0-043101-10000
Part Name: FRAME RH PANEL
Effective: 2021-02-26
Alternative parts: 6KMV-043101-6000
Price: 8,00 € : 8,00 €
20
P/N (SKU): 6KM0-041701-2H300
Part Name: RH PANEL
Effective: 2021-02-26
Remarks: Use with 6KM0-030100-2B200
Alternative parts: 6KMV-041701-6000-0H300+6KMV-042001-6000+6KMV-043001-6000
Specification: SILVER BLACK
Price: 65,00 € : 65,00 €
20
P/N (SKU): 6KM0-041701-2H700
Part Name: RH PANEL
Effective: 2021-02-26
Remarks: Use with 6KM0-030100-2B200
Alternative parts: 6KMV-041701-6000-0H700+6KMV-042001-6000+6KMV-043001-6000
Specification: SILVER GREY
Price: 51,00 € : 51,00 €
21
P/N (SKU): 6KM0-041301
Part Name: RH INNER PANEL, RESERVOIR TANK
Effective: 2021-02-26
Alternative parts: null
Price: 6,00 € : 6,00 €
22
P/N (SKU): 6KM0-041302-0H300
Part Name: RESERVOIR RH OUTER PANEL
Effective: 2021-02-26
Alternative parts: null
Specification: SILVER BLACK
Price: 28,00 € : 28,00 €
22
P/N (SKU): 6KM0-041302-0MP00
Part Name: RESERVOIR RH OUTER PANEL
Effective: 2021-02-26
Remarks: NO PAINTED
Alternative parts: null
Price: 5,00 € : 5,00 €
22
P/N (SKU): 6KM0-041302-0BM00
Part Name: RESERVOIR RH OUTER PANEL
Effective: 2021-02-26
Alternative parts: null
Specification: NEBULA BLACK
Price: 40,00 € : 40,00 €
23
P/N (SKU): 6KM0-042001
Part Name: LOWER RH DECO STRIP
Effective: 2021-02-26
Alternative parts: 6KMV-042001-6000
Price: 3,50 € : 3,50 €
26
P/N (SKU): 8080-000001
Part Name: CLASP
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 6KM0-041901
Part Name: LOWER LH DECO STRIP
Effective: 2021-02-26
Alternative parts: 6KMV-041901-6000
Price: 3,50 € : 3,50 €
29
P/N (SKU): 9010-120008
Part Name: SPONGE PAD, FUEL TANK
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
