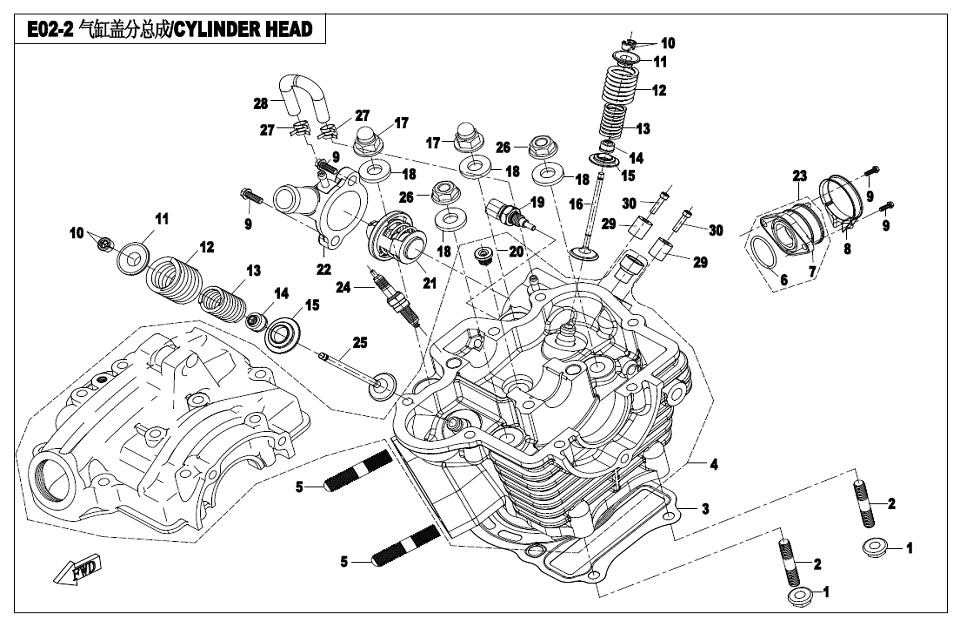

CYLINDER HEAD ASSY - E02-2

CYLINDER HEAD ASSY - E02-2

No.

01
P/N (SKU): 30202-060830
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts: 30202-060110
Specification: M6
Price: 0,40 € : 0,40 €
02
P/N (SKU): 30011-060025820
Part Name: STUD M6x25
Effective: 2021-02-26
Alternative parts:
Specification: M6x25
Price: 0,75 € : 0,75 €
-+
03
P/N (SKU): 0A70-022008
Part Name: GASKET, CYLINDER HEAD
Effective: 2021-02-26
Alternative parts:
Price: 2,60 € : 2,60 €
-+
04
P/N (SKU): 0A80-0220B0
Part Name: CYLINDER HEAD @^ HEAD COVER
Effective: 2021-02-26
Alternative parts:
Price: 188,50 € : 188,50 €
-+
05
P/N (SKU): 0180-022003-00001
Part Name: STUD
Effective: 2021-02-26
Alternative parts:
Price: 0,80 € : 0,80 €
-+
06
P/N (SKU): 0A70-022005
Part Name: O-RING 31.7x2.4
Effective: 2021-02-26
Alternative parts:
Specification: 31.7x2.4
Price: 0,40 € : 0,40 €
-+
07
P/N (SKU): 0A70-022400
Part Name: ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 6,25 € : 6,25 €
-+
08
P/N (SKU): 0010-022200
Part Name: CLAMP, AIR INLET PIPE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0010-023008-0010
Part Name: BOLT M6x18
Effective: 2021-02-26
Alternative parts: 0010-023008-00001
Specification: M6x18
Price: 0,40 € : 0,40 €
10
P/N (SKU): 0010-022006-0031
Part Name: LOCK CLIP, VALVE
Effective: 2021-02-26
Alternative parts:
Price: 1,55 € : 1,55 €
-+
11
P/N (SKU): 0010-022005-0050
Part Name: SPRING PLATE, VALVE
Effective: 2021-02-26
Alternative parts:
Price: 0,75 € : 0,75 €
-+
12
P/N (SKU): 0A70-022004
Part Name: OUTER SPRING, VALVE
Effective: 2021-02-26
Alternative parts:
Price: 1,85 € : 1,85 €
-+
13
P/N (SKU): 0A70-022003
Part Name: INNER SPRING, VALVE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 0010-022500-10000
Part Name: SEAL RING, VALVE STEM
Effective: 2021-02-26
Alternative parts:
Price: 1,55 € : 1,55 €
-+
15
P/N (SKU): 0010-022001-0050
Part Name: SEAT, VALVE SPRING
Effective: 2021-02-26
Alternative parts:
Price: 0,75 € : 0,75 €
-+
16
P/N (SKU): 0A70-022001
Part Name: VALVE, INTAKE
Effective: 2021-02-26
Alternative parts:
Price: 5,15 € : 5,15 €
-+
17
P/N (SKU): 0010-022013-0020
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts: 0010-022013-00001
Specification: M8
Price: 0,75 € : 0,75 €
18
P/N (SKU): 0010-022012
Part Name: WASHER 8
Effective: 2021-02-26
Alternative parts:
Specification: 8
Price: 0,40 € : 0,40 €
-+
19
P/N (SKU): 018B-022810
Part Name: WATER TEMPERATURE SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 26,50 € : 26,50 €
-+
20
P/N (SKU): 0010-022303-0020
Part Name: SCREW PLUG M12x1
Effective: 2021-02-26
Alternative parts:
Price: 0,75 € : 0,75 €
-+
21
P/N (SKU): 0180-022810
Part Name: THERMOSTAT ASSY
Effective: 2021-02-26
Alternative parts:
Price: 14,80 € : 14,80 €
-+
22
P/N (SKU): 0A70-022200-0B20
Part Name: HOUSING, THERMOSTAT
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 5,90 € : 5,90 €
-+
23
P/N (SKU): 0A70-0224A0
Part Name: JOINT SEAT
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
24
P/N (SKU): 0A80-022400
Part Name: SPARK PLUG
Effective: 2021-02-26
Alternative parts:
Specification: NCK CR7E
Price: 12,50 € : 12,50 €
-+
25
P/N (SKU): 0A70-022002
Part Name: VALVE, EXHAUST
Effective: 2021-02-26
Alternative parts:
Price: 9,15 € : 9,15 €
-+
26
P/N (SKU): 01A0-022002-00001
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 0,40 € : 0,40 €
-+
27
P/N (SKU): 30601-207050
Part Name: CLAMP B7
Effective: 2021-02-26
Alternative parts:
Specification: B7
Price: 0,40 € : 0,40 €
-+
28
P/N (SKU): 0010-022017
Part Name: BREATHER HOSE, CARB.
Effective: 2021-02-26
Alternative parts:
Price: 0,40 € : 0,40 €
-+
29
P/N (SKU): 0A80-022001-00001
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 1,10 € : 1,10 €
-+
30
P/N (SKU): 30102-050035810
Part Name: SCREW M5x35
Effective: 2021-02-26
Alternative parts:
Specification: M5x35
Price: 0,40 € : 0,40 €
-+
