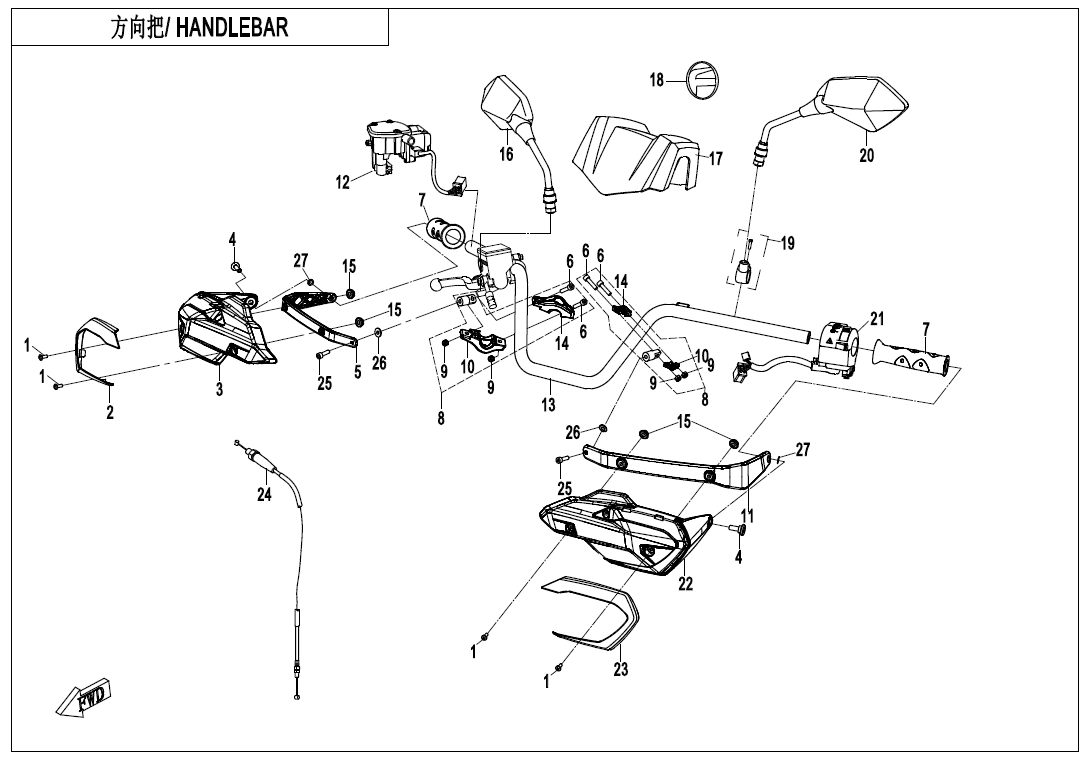

HANDLEBAR - F10-1-V2

HANDLEBAR - F10-1-V2

No.

01
P/N (SKU): A010-120003
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts: 6NQ#-000206-6001
Specification: M6x16
Price: 2,00 € : 2,00 €
02
P/N (SKU): 9AWA-101302-0E800
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: CORAL BLUE
Price: 4,00 € : 4,00 €
-+
02
P/N (SKU): 9AWA-101302-0RE00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: TRUE TIMBER CAMO
Price: 31,00 € : 31,00 €
-+
02
P/N (SKU): 9AWA-101302-0Y600
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: CRYSTAL ORANGE
Price: 12,00 € : 12,00 €
-+
02
P/N (SKU): 9AWA-101302-0B300
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: PEARL BLACK
Price: 7,00 € : 7,00 €
-+
02
P/N (SKU): 9AWA-101302-0BM00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: NEBULA BLACK
Price: 31,00 € : 31,00 €
-+
02
P/N (SKU): 9AWA-101302-0VF00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: MERCURY SILVER
Price: 31,00 € : 31,00 €
-+
02
P/N (SKU): 9AWA-101302-0EC00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: ROYAL BLUE
Price: 31,00 € : 31,00 €
-+
03
P/N (SKU): 9AWA-101301-10000
Part Name: RH HAND GUARD COVER
Effective: 2021-02-26
Alternative parts:
Price: 10,00 € : 10,00 €
-+
04
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 9AWA-101303-10000
Part Name: RH HANDGUARD LEVER
Effective: 2021-02-26
Alternative parts:
Price: 6,50 € : 6,50 €
-+
06
P/N (SKU): 30102-060025700
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 30102-060025810
Specification: M6x25
Price: 1,50 € : 1,50 €
06
P/N (SKU): 30102-060022810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M6x22@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 8060-100001
Part Name: LH HAND GRIP
Effective: 2021-02-26
Alternative parts: 9DQV-100005-3000
Price: 7,50 € : 7,50 €
-+
08
P/N (SKU): 9AWA-101230-10000
Part Name: BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 12,00 € : 12,00 €
-+
09
P/N (SKU): 30224-060800
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 30224-060810
Price: 3,50 € : 3,50 €
09
P/N (SKU): 30224-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 9CR6-101204-10000
Part Name: PRESS COVER, BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
11
P/N (SKU): 9AWA-101203-20000
Part Name: HANDGUARD LEVER, LH
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
12
P/N (SKU): 9CRB-160700
Part Name: DIFFERENTIAL RH SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 9CRB-160700-00002
Specification: ORDINARY
Price: 49,00 € : 49,00 €
-+
12
P/N (SKU): 9CRB-160700-10000
Part Name: DIFFERENTIAL RH SWITCH ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 57,00 € : 57,00 €
-+
12
P/N (SKU): 9CRB-160700-00002
Part Name: DIFFERENTIAL RH SWITCH ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 34,79 € : 34,79 €
-+
13
P/N (SKU): 9CR6-101100
Part Name: HANDLEBAR ASSY
Effective: 2021-02-26
Alternative parts: 9CR6-101100-10000
Price: 56,00 € : 56,00 €
13
P/N (SKU): 9CR6-101100-10000
Part Name: HANDLEBAR ASSY
Effective: 2021-02-26
Alternative parts: 9DSV-101100-6K00-0BU00
Price: 47,00 € : 47,00 €
14
P/N (SKU): 9CR6-101202-10000
Part Name: SEAT, BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
15
P/N (SKU): 30212-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 7020-200300
Part Name: REAR VIEW MIRROR, RH
Effective: 2021-02-26
Alternative parts: 9AY0-200300
Price: 17,00 € : 17,00 €
17
P/N (SKU): 9CR6-101001
Part Name: TOP COVER, HANDLEBAR
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
18
P/N (SKU): 9CR6-190001
Part Name: CFMOTO LOGO
Effective: 2021-02-26
Alternative parts:
Specification: SMALL
Price: 7,00 € : 7,00 €
-+
19
P/N (SKU): 9CR6-080400
Part Name: REAR VIEW MIRROR BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 7,50 € : 7,50 €
-+
20
P/N (SKU): 7020-200200
Part Name: LH REARVIEW MIRROR ASSY
Effective: 2021-02-26
Alternative parts: 9AY0-200200
Price: 17,00 € : 17,00 €
21
P/N (SKU): 9CR6-160600-10000
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG@HEDALIGHT A
Price: 48,00 € : 48,00 €
-+
21
P/N (SKU): 9CS0-160600
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Remarks: ORDINARY PLUG
Alternative parts:
Specification: STANDARD
Price: 0,00 € : 0,00 €
-+
22
P/N (SKU): 9AWA-101201-10000
Part Name: HAND GUARD, LH
Effective: 2021-02-26
Alternative parts:
Price: 10,00 € : 10,00 €
-+
23
P/N (SKU): 9AWA-101202-0B300
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: PEARL BLACK
Price: 5,00 € : 5,00 €
-+
23
P/N (SKU): 9AWA-101202-0E800
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: CORAL BLUE
Price: 7,00 € : 7,00 €
-+
23
P/N (SKU): 9AWA-101202-0RE00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: TRUE TIMBER CAMO
Price: 31,00 € : 31,00 €
-+
23
P/N (SKU): 9AWA-101202-0Y600
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: CRYSTAL ORANGE
Price: 12,00 € : 12,00 €
-+
23
P/N (SKU): 9AWA-101202-0BM00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: NEBULA BLACK
Price: 31,00 € : 31,00 €
-+
23
P/N (SKU): 9AWA-101202-0VF00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: MERCURY SILVER
Price: 31,00 € : 31,00 €
-+
23
P/N (SKU): 9AWA-101202-0EC00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: ROYAL BLUE
Price: 31,00 € : 31,00 €
-+
24
P/N (SKU): 9CR6-105000
Part Name: THROTTLE CABLE
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
25
P/N (SKU): A000-040703
Part Name: INNER HEX SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M6x20
Price: 2,00 € : 2,00 €
-+
26
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30305-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ8
Price: 1,50 € : 1,50 €
-+
