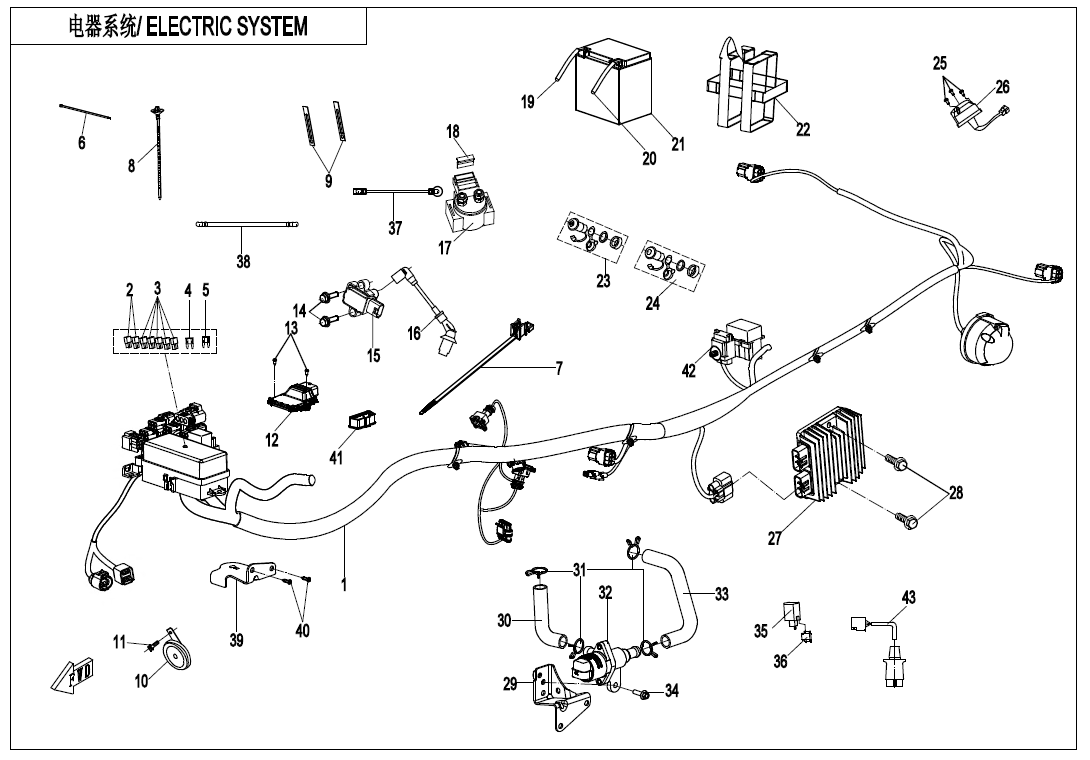

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 9DS#-150100-6303
Part Name: MAIN CABLE
Remarks: WITH TURNING LIGHT
Price: 509,00 € : 509,00 €
-+
01
P/N (SKU): 9DS#-150100-6102
Part Name: MAIN CABLE
Remarks: WITHOUT TURNING LIGHT
Price: 477,00 € : 477,00 €
-+
01
P/N (SKU): 9DS#-150100-6101
Part Name: MAIN CABLE
Remarks: WITHOUT TURNING LIGHT
Alternative parts: 9DS#-150100-6102
Price: 470,00 € : 470,00 €
01
P/N (SKU): 9DS#-150100-6302
Part Name: MAIN CABLE
Remarks: WITH TURNING LIGHT
Alternative parts: 9DS#-150100-6303
Price: 509,00 € : 509,00 €
02
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Price: 7,00 € : 7,00 €
-+
03
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Price: 7,50 € : 7,50 €
-+
04
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Alternative parts: 806A-151303
Specification: 15A
Price: 1,50 € : 1,50 €
05
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Specification: 10A
Price: 2,50 € : 2,50 €
-+
06
P/N (SKU): 8010-150003
Part Name: TIE BAND
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG4.7x194
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 7030-150005
Part Name: TIE BAND
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Price: 11,00 € : 11,00 €
-+
11
P/N (SKU): 30006-080014810
Part Name: BOLT M8x14
Specification: M8x14
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0GS0-174000-10000
Part Name: ECU
Specification: NA
Price: 211,00 € : 211,00 €
-+
12
P/N (SKU): 0GS0-174000
Part Name: ECU
Specification: FOR EU 168 ONLY
Price: 335,00 € : 335,00 €
-+
13
P/N (SKU): 30105-060016410
Part Name: SCREW M6x16
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30006-060025810
Part Name: BOLT M6x25
Specification: M6x25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Price: 41,00 € : 41,00 €
-+
16
P/N (SKU): 0GR0-178000
Part Name: HIGH-TENSION CABLE
Price: 16,00 € : 16,00 €
-+
17
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Price: 25,00 € : 25,00 €
-+
18
P/N (SKU): 5BY4-151301
Part Name: 30A FUSE
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 9DS#-150210-6000
Part Name: NEGATIVE WIRE, BATTERY
Price: 16,00 € : 16,00 €
-+
20
P/N (SKU): 9DS#-150230-6001
Part Name: POSITIVE WIRE, BATTERY
Price: 31,00 € : 31,00 €
-+
21
P/N (SKU): 31023004
Part Name: GEL BATTERY
Price: 272,00 € : 272,00 €
-+
22
P/N (SKU): 9060-152100
Part Name: BELT, BATTERY
Price: 4,00 € : 4,00 €
-+
23
P/N (SKU): 9GQ0-150600
Part Name: OUTPUT SEAT, USB
Alternative parts: 9GQ0-150600-10000
Price: 17,00 € : 17,00 €
-+
24
P/N (SKU): 9GQ0-150500
Part Name: OUTPUT SEAT, POWER
Alternative parts: 9GQ0-150500-10000
Price: 14,00 € : 14,00 €
-+
25
P/N (SKU): 30105-050030410
Part Name: SCREW M5x30
Specification: M5x30
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 7020-150800
Part Name: POWER SOCKET, TRAILER
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
27
P/N (SKU): 0800-177000-30000
Part Name: REGULATOR
Price: 137,00 € : 137,00 €
-+
28
P/N (SKU): 30006-060030810
Part Name: BOLT M6x30
Specification: M6x30
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9GQA-030010-20000
Part Name: BRACKET, STEPPER MOTOR
Price: 4,50 € : 4,50 €
-+
30
P/N (SKU): 9GQA-001002
Part Name: EXHAUST PIPE, STEPPER MOTOR SEAT
Price: 12,00 € : 12,00 €
-+
31
P/N (SKU): 30601-118010
Part Name: CLAMP A18
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR
Price: 90,00 € : 90,00 €
-+
33
P/N (SKU): 9GQA-001001
Part Name: INLET PIPE, STEPPER MOTOR SEAT
Price: 18,00 € : 18,00 €
-+
34
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Specification: M6x12
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 9DS#-150340-6000
Part Name: FLASHER
Price: 18,00 € : 18,00 €
-+
36
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 9DS#-150220-6001
Part Name: CABLE, STARTER MOTOR
Price: 21,00 € : 21,00 €
-+
38
P/N (SKU): 9DS#-150250-6000
Part Name: NEGATIVE CABLE, STARTER MOTOR
Price: 15,00 € : 15,00 €
-+
39
P/N (SKU): 9DS#-030501-6000
Part Name: MOUNTING PLATE,FUSE BOX
Price: 4,00 € : 4,00 €
-+
40
P/N (SKU): 30110-420130010
Part Name: SELF-TAPPING SCREW ST4.2x13
Alternative parts: 30110-421130010
Specification: ST4.2x13
Price: 1,50 € : 1,50 €
-+
41
P/N (SKU): 5BY0-150304
Part Name: CAP, DIAGNOSIS CONNECTOR
Price: 9,50 € : 9,50 €
-+
42
P/N (SKU): 9CR6-103501
Part Name: FUSE 40A
Specification: 40A
Price: 4,00 € : 4,00 €
-+
43
P/N (SKU): 9010-151020
Part Name: JOINT SEAT, TRAILER POWER
Price: 16,00 € : 16,00 €
-+
