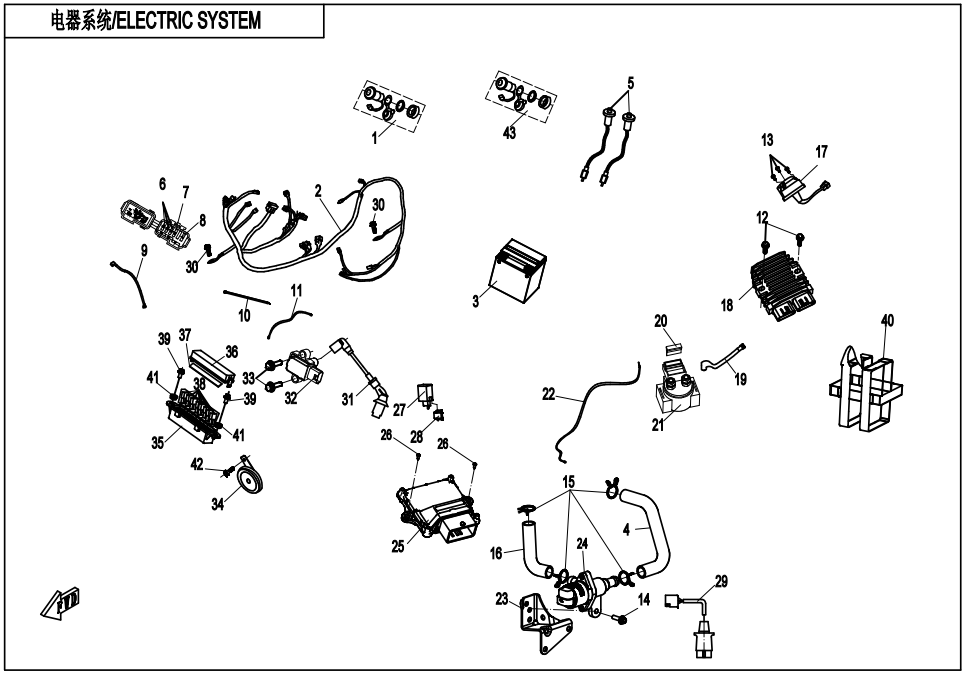

ELECTRIC SYSTEM - F15-1-V3

ELECTRIC SYSTEM - F15-1-V3

No.

01
P/N (SKU): 9GQ0-150500
Part Name: OUTPUT SEAT, POWER
Effective: 2021-02-26
Alternative parts: 9GQ0-150500-10000
Price: 14,00 € : 14,00 €
-+
02
P/N (SKU): 9CS0-150100-80000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: null
Specification: 167
Price: 372,00 € : 372,00 €
03
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: null
Specification: DYNAVOLT,12V 32Ah
Price: 272,00 € : 272,00 €
04
P/N (SKU): 9GQA-001001
Part Name: STEPPER MOTOR INLET PIPE
Effective: 2021-02-26
Alternative parts: 9GQA-001001-00001/9GQV-001001-9000
Price: 18,00 € : 18,00 €
-+
05
P/N (SKU): A010-170300-2000
Part Name: ADJUSTING BUTTON, CLOCK
Effective: 2021-02-26
Alternative parts: null
Price: 9,00 € : 9,00 €
-+
06
P/N (SKU): 806A-151303
Part Name: FUSE
Effective: 2021-02-26
Alternative parts: 806A-151305
Specification: 15A
Price: 4,00 € : 4,00 €
07
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts: null
Specification: 10A
Price: 2,50 € : 2,50 €
-+
08
P/N (SKU): 8080-151301
Part Name: FUSE 5A
Effective: 2021-02-26
Alternative parts: null
Specification: 5A
Price: 1,50 € : 1,50 €
09
P/N (SKU): 9CS0-150210
Part Name: STARTER MOTOR NEGATIVE CABLE
Effective: 2021-02-26
Alternative parts: null
Price: 12,00 € : 12,00 €
10
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
11
P/N (SKU): 9CS0-150220
Part Name: BATTERY NEGATIVE WIRE
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
12
P/N (SKU): 30006-060030810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 30105-050030410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2021-02-26
Alternative parts: null
Specification: M5x30
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 30601-117010
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2021-02-26
Alternative parts: null
Specification: A17
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9GQA-001002
Part Name: STEPPER MOTOR EXHAUST PIPE
Effective: 2021-02-26
Alternative parts: 9GQV-001002-9000
Price: 12,00 € : 12,00 €
17
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
18
P/N (SKU): 0800-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: 0800-177000-10000
Specification: HIGH POWER, JAPANESE
Price: 274,00 € : 274,00 €
18
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: null
Specification: 330W
Price: 104,00 € : 104,00 €
-+
18
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: null
Specification: HIGH POWER, CHINESE
Price: 165,00 € : 165,00 €
-+
19
P/N (SKU): 9CR6-150230
Part Name: BATTERY POSITIVE WIRE
Effective: 2021-02-26
Alternative parts: 7020-150230
Price: 16,00 € : 16,00 €
20
P/N (SKU): 9010-150301
Part Name: FUSE
Effective: 2021-02-26
Alternative parts: null
Specification: 22A
Price: 2,00 € : 2,00 €
21
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 25,00 € : 25,00 €
-+
22
P/N (SKU): 9CR6-150220
Part Name: CABLE,STARTING MOTOR
Effective: 2021-02-26
Alternative parts: null
Price: 25,00 € : 25,00 €
-+
23
P/N (SKU): 9GQA-030010-20000
Part Name: STEPPER MOTOR BRACKET ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
24
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 90,00 € : 90,00 €
-+
25
P/N (SKU): 0GS0-174000-20000
Part Name: ECU ASSY
Effective: 2021-02-26
Remarks: SPEED LIMIT 60km/h
Alternative parts: 0GS0-174000-E0000
Specification: MSE6.0
Price: 300,00 € : 300,00 €
-+
25
P/N (SKU): 0GS0-174000-E0000
Part Name: ECU ASSY
Effective: 2021-02-26
Remarks: SPEED LIMIT 60km/h
Alternative parts: null
Specification: MSE6.0
Price: 190,00 € : 190,00 €
26
P/N (SKU): 30110-480160010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: ST4.
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 6NT1-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts: null
Price: 20,00 € : 20,00 €
-+
28
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
29
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
-+
30
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
31
P/N (SKU): 0GR0-178000
Part Name: HIGH-TENSION CABLE
Effective: 2021-02-26
Alternative parts: 0GR0-178000-10000
Price: 16,00 € : 16,00 €
32
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts: null
Price: 41,00 € : 41,00 €
-+
33
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts: EG4V-150600-1000
Price: 11,00 € : 11,00 €
35
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Effective: 2021-02-26
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
36
P/N (SKU): 7020-040412-10000
Part Name: COVER,RELAY BOX
Effective: 2021-02-26
Alternative parts: null
Price: 5,00 € : 5,00 €
-+
37
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER, RELAY BOX COVER
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
38
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
39
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2021-02-26
Alternative parts: null
Price: 4,00 € : 4,00 €
-+
41
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 30006-080014810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 9GQ0-150600
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2021-02-26
Alternative parts: 9GQ0-150600-10000
Price: 17,00 € : 17,00 €
-+
