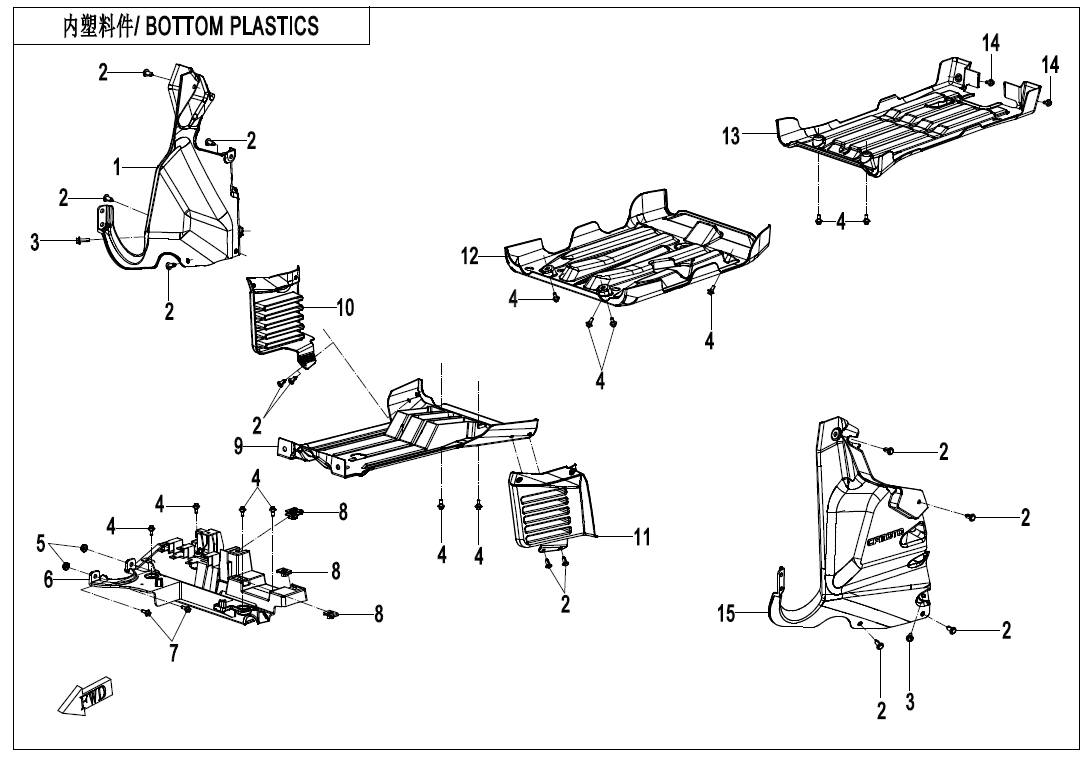

BOTTOM PLASTICS - F04-7

BOTTOM PLASTICS - F04-7

No.

01
P/N (SKU): 9DS#-044012-6001
Part Name: FRONT RH INNER FENDER
Effective: 2021-02-26
Alternative parts: 9DSV-044012-6K00
Price: 18,00 € : 18,00 €
02
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
03
P/N (SKU): 30006-060020870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: BLACK ZINC-PLATED
Price: 2,00 € : 2,00 €
-+
04
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2021-02-26
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 30202-060110
Part Name: HEXAGON NUTS FLANGE
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMI
Price: 1,50 € : 1,50 €
06
P/N (SKU): 9DS#-044054-6001
Part Name: ELECTRICAL BRACKET
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
07
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2021-02-26
Specification: M6
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 9DS#-044021-6001
Part Name: FRONT PANEL, ENGINE
Effective: 2021-02-26
Alternative parts: 9DSV-044021-6002
Price: 38,00 € : 38,00 €
-+
10
P/N (SKU): 9DS#-042087-6000
Part Name: FRONT RH INNER LOWER FENDER
Effective: 2021-02-26
Alternative parts: 9DSV-042087-6601
Price: 15,00 € : 15,00 €
11
P/N (SKU): 9DS#-042086-6000
Part Name: FRONT LH INNER LOWER FENDER
Effective: 2021-02-26
Alternative parts: 9DSV-042086-6601
Price: 14,00 € : 14,00 €
12
P/N (SKU): 9DR8-044022-10000
Part Name: MIDDLE PANEL, ENGINE
Effective: 2021-02-26
Alternative parts: 9DR8-044022-20000
Price: 28,00 € : 28,00 €
-+
13
P/N (SKU): 9DS#-044023-6001
Part Name: REAR PANEL, ENGINE
Effective: 2021-02-26
Price: 44,00 € : 44,00 €
-+
14
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
15
P/N (SKU): 9DS#-044011-6002
Part Name: FRONT INNER FENDER
Effective: 2021-02-26
Alternative parts: 9DSV-044011-6K00
Price: 18,00 € : 18,00 €
-+
