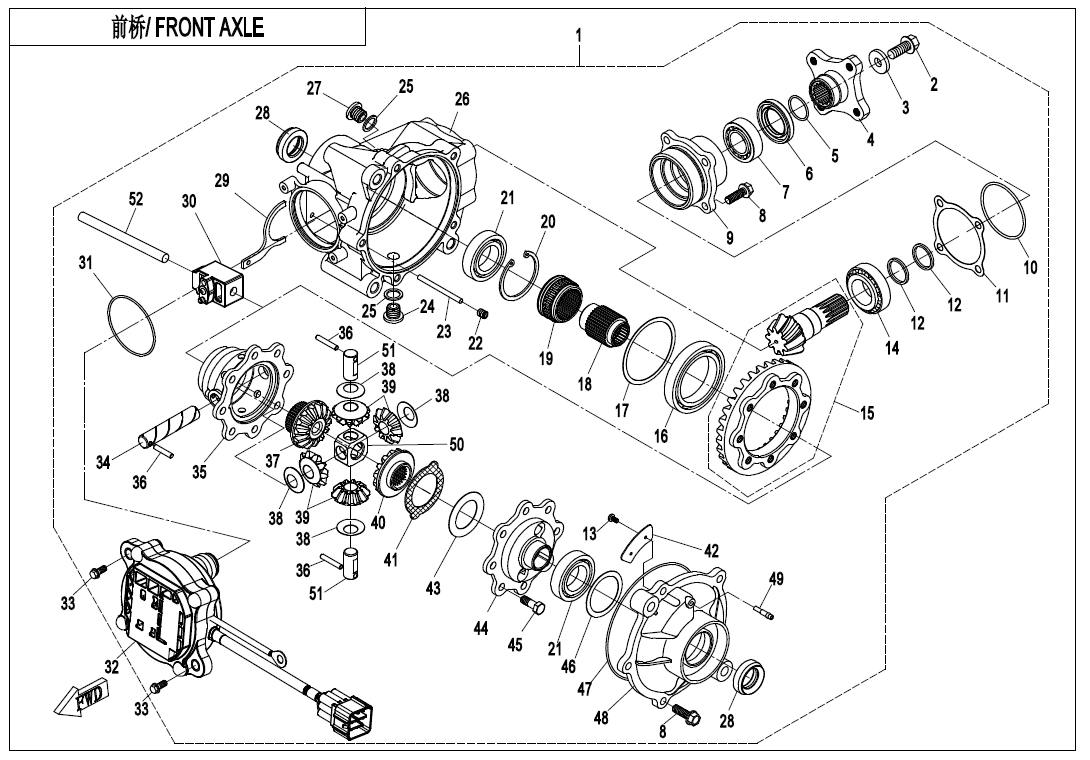

FRONT AXLE - F31 | 2020, ATV, CF600ATR-2L | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): Q830-310000-50000

Part Name: FRONT GEAR CASE ASSY

Alternative parts: Q830-310000-50001

Price: 855,00 € : 855,00 €

02

P/N (SKU): 0GR0-062203

Part Name: BOLT M10x1.25x20

Specification: M10x1.25x20

Price: 2,00 € : 2,00 €

03

P/N (SKU): 0GR0-062204

Part Name: WASHER 10x27.5x4

Specification: 10x27.5x4

Price: 2,50 € : 2,50 €

04

P/N (SKU): Q850-331002

Part Name: COUPLER

Price: 38,00 € : 38,00 €

05

P/N (SKU): 0800-062205

Part Name: O-SEAL RING 25x2

Specification: 25x2

Price: 2,00 € : 2,00 €

06

P/N (SKU): 0800-062204

Part Name: OIL SEAL 35x50x7

Specification: 35x50x7

Price: 6,50 € : 6,50 €

07

P/N (SKU): 30409-02500

Part Name: BEARING

Specification: 33005(25x47x17)

Price: 19,00 € : 19,00 €

08

P/N (SKU): 0110-060011-0010

Part Name: BOLT M8x28

Specification: M8x28

Price: 2,00 € : 2,00 €

09

P/N (SKU): Q830-311002-00001

Part Name: BEARING SEAT

Price: 21,00 € : 21,00 €

10

P/N (SKU): Q830-310006-10000

Part Name: O-RING 55x2.5

Specification: 55x2.5

Price: 3,00 € : 3,00 €

11

P/N (SKU): Q830-310023-00100

Part Name: ADJUSTING WASHER

Specification: t=0.20

Price: 2,00 € : 2,00 €

11

P/N (SKU): Q830-310023-00200

Part Name: ADJUSTING WASHER

Specification: t=0.30

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00200

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.20

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00700

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.46

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00900

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.50

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01100

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.70

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00300

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.30

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00400

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.40

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00500

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.42

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00600

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.44

Price: 1,50 € : 1,50 €

12

P/N (SKU): Q830-311003-01000

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.60

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00100

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.10

Price: 1,50 € : 1,50 €

12

P/N (SKU): Q830-311003-00800

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.48

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01200

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.80

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01300

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.90

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01400

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=3.00

Price: 2,00 € : 2,00 €

13

P/N (SKU): 30105-040008410

Part Name: SCREW M4x8

Specification: M4x8

Price: 2,00 € : 2,00 €

14

P/N (SKU): 30409-03000

Part Name: BEARING

Specification: 32006(30x55x17)

Price: 17,00 € : 17,00 €

15

P/N (SKU): Q830-3100B0

Part Name: BEVEL GEAR ASSY, FRONT GEAR CASE

Price: 119,00 € : 119,00 €

16

P/N (SKU): 30400-05500

Part Name: BEARING

Specification: 61911(55x80x13)

Price: 24,00 € : 24,00 €

17

P/N (SKU): Q830-310015-00200

Part Name: ADJUSTING WASHER 79.5x68

Specification: t=0.20

Price: 2,00 € : 2,00 €

17

P/N (SKU): Q830-310015-00100

Part Name: ADJUSTING WASHER 79.5x68

Specification: t=0.10

Price: 2,00 € : 2,00 €

17

P/N (SKU): Q830-310015-00300

Part Name: ADJUSTING WASHER 79.5x68

Specification: t=0.30

Price: 2,00 € : 2,00 €

17

P/N (SKU): Q830-310015-00400

Part Name: ADJUSTING WASHER 79.5x68

Specification: t=0.40

Price: 2,00 € : 2,00 €

17

P/N (SKU): Q830-310015-00500

Part Name: ADJUSTING WASHER 79.5x68

Specification: t=0.50

Price: 2,00 € : 2,00 €

17

P/N (SKU): Q830-310015-00600

Part Name: ADJUSTING WASHER 79.5x68

Specification: t=1.00

Price: 2,00 € : 2,00 €

18

P/N (SKU): Q830-310014

Part Name: DRIVE CLUTCH COVER

Price: 19,00 € : 19,00 €

19

P/N (SKU): Q830-310013

Part Name: SPLINE BUSHING

Price: 16,00 € : 16,00 €

20

P/N (SKU): 30800-05505

Part Name: CIRCLIP FOR HOLE 55

Specification: 55

Price: 2,50 € : 2,50 €

21

P/N (SKU): 30400-03001

Part Name: BEARING 30x55x13

Specification: 6006

Price: 10,00 € : 10,00 €

22

P/N (SKU): 30130-080010810

Part Name: SCREW M8x10

Specification: M8x10

Price: 1,50 € : 1,50 €

23

P/N (SKU): Q830-310003

Part Name: PIN SHAFT

Price: 3,50 € : 3,50 €

24

P/N (SKU): 0180-332100

Part Name: OIL DRAIN BOLT M14x1.25x12, MAGNETIC

Specification: M14x1.25x12

Price: 5,50 € : 5,50 €

25

P/N (SKU): 0180-011006

Part Name: GASKET 14

Specification: 14

Price: 1,50 € : 1,50 €

26

P/N (SKU): Q830-310007-10002

Part Name: FRONT GEAR CASE

Price: 78,00 € : 78,00 €

27

P/N (SKU): 0180-021008-0010

Part Name: BOLT M14x1.25x12

Specification: M14x1.25x12

Price: 4,50 € : 4,50 €

28

P/N (SKU): 0180-311001

Part Name: OIL SEAL 24x38x8

Specification: 24x38x8

Price: 4,50 € : 4,50 €

29

P/N (SKU): Q830-310005-10001

Part Name: FORK

Alternative parts: Q830-310005-10000

Price: 19,00 € : 19,00 €

30

P/N (SKU): Q890-310010

Part Name: BLOCK ASSY.

Price: 24,00 € : 24,00 €

31

P/N (SKU): Q830-310012-10000

Part Name: O-RING 67.5x2

Price: 2,50 € : 2,50 €

32

P/N (SKU): Q890-314000

Part Name: MOTOR ASSY, FRONT GEAR CASE

Price: 165,00 € : 165,00 €

33

P/N (SKU): 0010-023008-0010

Part Name: BOLT M6x18

Specification: M6x18

Price: 1,50 € : 1,50 €

34

P/N (SKU): 0180-313002-10000

Part Name: CENTER GEAR SHAFT, DIFFERENTIAL

Price: 6,00 € : 6,00 €

35

P/N (SKU): Q830-313003-10000

Part Name: FRONT DIFFERENTIAL CASE

Price: 51,00 € : 51,00 €

36

P/N (SKU): 30906-0503000

Part Name: PIN

Specification: 5x30

Price: 1,50 € : 1,50 €

37

P/N (SKU): Q830-313004

Part Name: GEAR, CV SHAFT

Price: 47,00 € : 47,00 €

38

P/N (SKU): 0181-313011

Part Name: WEARING RING

Price: 2,00 € : 2,00 €

39

P/N (SKU): 0180-313003-00004

Part Name: CENTRAL GEAR, DIFFERENTIAL

Specification: SURFACE PEENING TREATMENT, THE INNER HOLE TOLERANCE INCREASING

Price: 12,00 € : 12,00 €

40

P/N (SKU): 0180-313006-00001

Part Name: DRIVEN GEAR, DIFFERENTIAL

Price: 24,00 € : 24,00 €

41

P/N (SKU): 0180-313009-0010

Part Name: GASKET

Price: 4,50 € : 4,50 €

42

P/N (SKU): Q830-310022

Part Name: OIL GUARD

Price: 2,00 € : 2,00 €

43

P/N (SKU): 0180-313010-0002

Part Name: ADJUST GASKET

Specification: ADJUST GASKET 57x40x0.3

Price: 2,50 € : 2,50 €

43

P/N (SKU): 0180-313010-0004

Part Name: ADJUST GASKET

Specification: ADJUST GASKET 57x40x0.5

Price: 1,50 € : 1,50 €

43

P/N (SKU): 0180-313010

Part Name: ADJUST GASKET

Specification: ADJUSTING WASHER 57x40x0.1

Price: 2,00 € : 2,00 €

43

P/N (SKU): 0180-313010-0001

Part Name: ADJUST GASKET

Specification: ADJUST GASKET57x40x0.2

Price: 2,00 € : 2,00 €

43

P/N (SKU): 0180-313010-0005

Part Name: ADJUST GASKET

Specification: ADJUST GASKET57x40x1.0

Price: 1,50 € : 1,50 €

43

P/N (SKU): 0180-313010-0003

Part Name: ADJUST GASKET

Specification: ADJUST GASKET57x40x0.4

Price: 1,50 € : 1,50 €

44

P/N (SKU): Q830-313001-00001

Part Name: MOUNTING PLATE

Price: 35,00 € : 35,00 €

45

P/N (SKU): 9010-290001

Part Name: BOLT M8x1x22

Specification: M8x1x22

Price: 2,00 € : 2,00 €

46

P/N (SKU): Q830-310009-00200

Part Name: ADJUSTING WASHER 54.5x43

Specification: t=0.20

Price: 1,50 € : 1,50 €

46

P/N (SKU): Q830-310009-00400

Part Name: ADJUSTING WASHER 54.5x43

Specification: t=0.40

Price: 1,50 € : 1,50 €

46

P/N (SKU): Q830-310009-00100

Part Name: ADJUSTING WASHER 54.5x43

Specification: t=0.10

Price: 1,50 € : 1,50 €

46

P/N (SKU): Q830-310009-00300

Part Name: ADJUSTING WASHER 54.5x43

Specification: t=0.30

Price: 1,50 € : 1,50 €

46

P/N (SKU): Q830-310009-00500

Part Name: ADJUSTING WASHER 54.5x43

Specification: t=0.50

Price: 1,50 € : 1,50 €

46

P/N (SKU): Q830-310009-00600

Part Name: ADJUSTING WASHER 54.5x43

Specification: t=1.00

Price: 1,50 € : 1,50 €

47

P/N (SKU): Q830-310011

Part Name: O-SEAL RING 130x2

Price: 3,50 € : 3,50 €

48

P/N (SKU): Q830-310008-00003

Part Name: FRONT GEAR CASE COVER

Price: 34,00 € : 34,00 €

49

P/N (SKU): 0180-311004-0020

Part Name: JOINT, BREATHER HOSE

Price: 1,50 € : 1,50 €

50

P/N (SKU): Q820-333008

Part Name: CROSS BUSHING

Price: 11,00 € : 11,00 €

51

P/N (SKU): Q800-313001

Part Name: PLANET GEAR SHAFT, SHORT

Price: 4,50 € : 4,50 €

52

P/N (SKU): 30913-0300550

Part Name: PIN SHAFT

Price: 1,50 € : 1,50 €
