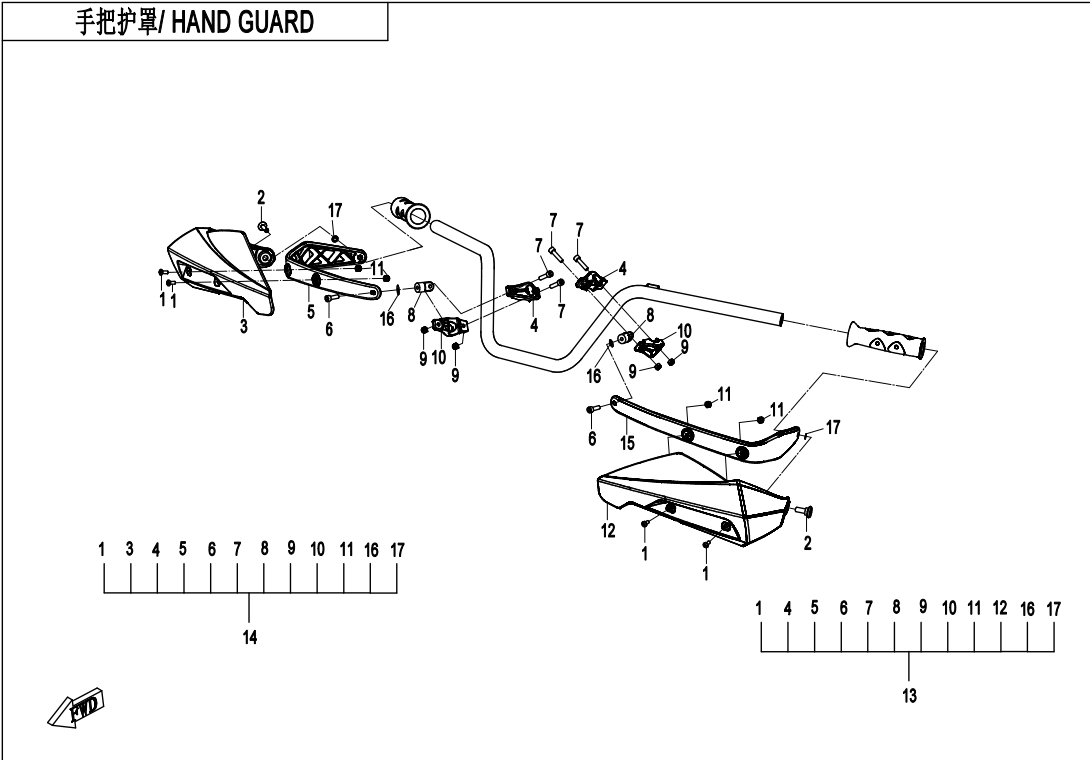

HAND GUARD - F10-3-V3

No.

01
P/N (SKU): A010-120003
Part Name: BOLT M6x16
Alternative parts: 6NQ#-000206-6001
Specification: M6x16
Price: 0,95 € : 0,95 €
02
P/N (SKU): 9010-080003
Part Name: BOLT, FRONT BRAKE DISC
Alternative parts: A000-080001
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 9CR6-101221-10000
Part Name: HAND GUARD, RH
Alternative parts:
Price: 8,80 € : 8,80 €
-+
04
P/N (SKU): 9CR6-101202-10000
Part Name: SEAT, BRACKET
Alternative parts:
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 9CR6-101202-10000
Part Name: SEAT, BRACKET
Alternative parts:
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 9CR6-101222-10000
Part Name: HANDGUARD LEVER, RH
Alternative parts:
Price: 5,50 € : 5,50 €
-+
05
P/N (SKU): 9CR6-101222
Part Name: HANDGUARD LEVER,RH
Price: 5,50 € : 5,50 €
06
P/N (SKU): A000-040703
Part Name: INNER HEX SCREW
Alternative parts:
Specification: M6x20
Price: 0,95 € : 0,95 €
-+
07
P/N (SKU): 30102-060020700
Part Name: SCREW M6x20
Alternative parts: 30102-060020810
Specification: M6x20
Price: 1,50 € : 1,50 €
07
P/N (SKU): 30102-060025700
Part Name: SCREW M6x25
Alternative parts: 30102-060025810
Specification: M6x25
Price: 0,95 € : 0,95 €
08
P/N (SKU): 9CR6-101203-10000
Part Name: CONNECTOR, BRACKET
Alternative parts:
Price: 1,25 € : 1,25 €
-+
09
P/N (SKU): 30224-060800
Part Name: NUT
Alternative parts:
Price: 1,85 € : 1,85 €
-+
10
P/N (SKU): 9CR6-101204-10000
Part Name: PRESS COVER, BRACKET
Alternative parts:
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9CR6-101204-10000
Part Name: PRESS COVER, BRACKET
Alternative parts:
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 30212-060830
Part Name: NUT M6
Alternative parts: 30212-060810
Specification: M6
Price: 0,55 € : 0,55 €
11
P/N (SKU): 30202-060110
Part Name: NUT M6
Alternative parts: 30204-060810
Specification: M6
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 9CR6-101211-10000
Part Name: HAND GUARD, LH
Alternative parts:
Price: 8,80 € : 8,80 €
-+
13
P/N (SKU): 9CR6-101210-20000
Part Name: LH HAND GUARD ASSY
Alternative parts:
Price: 22,70 € : 22,70 €
-+
14
P/N (SKU): 9CR6-101220-20000
Part Name: RH HAND GUARD ASSY
Alternative parts:
Price: 22,70 € : 22,70 €
-+
15
P/N (SKU): 9CR6-101212-10000
Part Name: HANDGUARD LEVER
Price: 5,50 € : 5,50 €
15
P/N (SKU): 9CR6-101212-20000
Part Name: HANDGUARD LEVER, LH
Alternative parts:
Price: 5,50 € : 5,50 €
-+
16
P/N (SKU): 30305-060112
Part Name: WASHER
Alternative parts:
Specification: 6
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 30305-080112
Part Name: WASHER
Alternative parts:
Specification: 8
Price: 0,55 € : 0,55 €
-+
