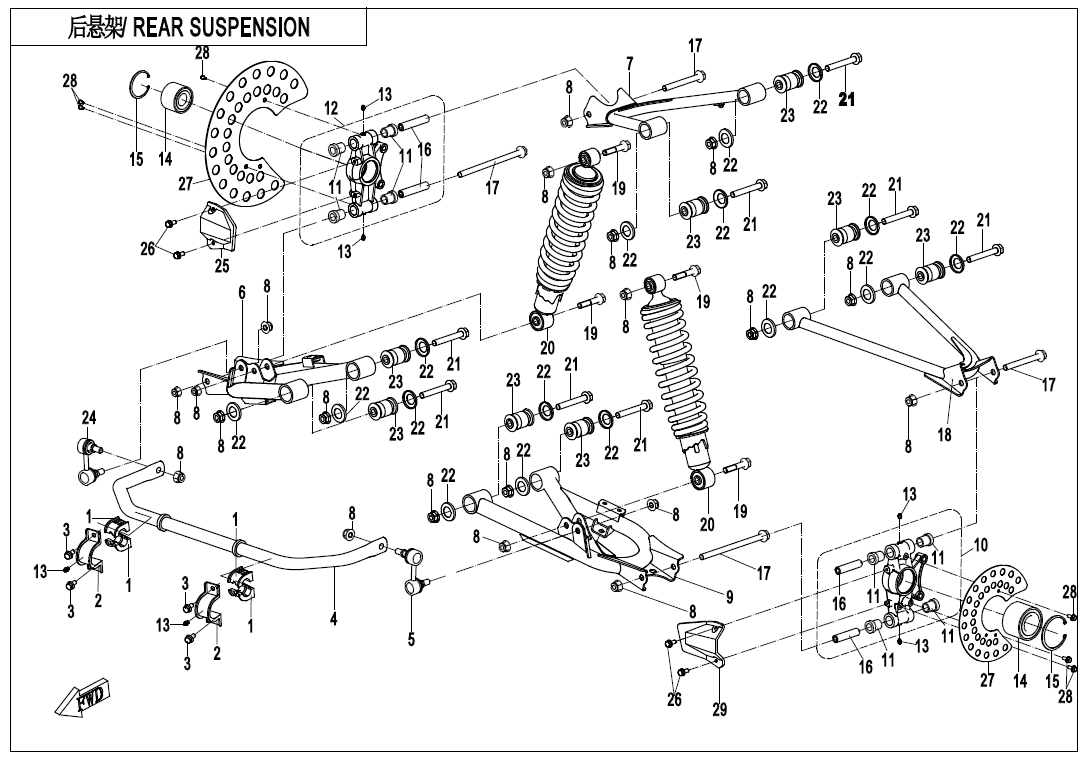

REAR SUSPENSION - F06-V3

REAR SUSPENSION - F06-V3

No.

01
P/N (SKU): 9GQ0-060003
Part Name: SUPPORTER, SWAY BAR
Alternative parts:
Price: 2,20 € : 2,20 €
-+
02
P/N (SKU): 9GQ0-060601-00001
Part Name: COVER, SWAY BAR
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 30006-080012810
Part Name: BOLT M8x12
Alternative parts:
Specification: M8x12
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 9GQ0-060610-10000
Part Name: REAR SWAY BAR ASSY
Alternative parts:
Price: 40,70 € : 40,70 €
-+
05
P/N (SKU): 9010-060700-1000
Part Name: BALL PIN, LH
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
05
P/N (SKU): 9010-060700-20000
Part Name: BALL PIN, LH
Alternative parts:
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
06
P/N (SKU): 9GQ0-060410-00001
Part Name: REAR LOWER SWING ARM, RH
Alternative parts: 9GQ0-060410-00002
Price: 37,00 € : 37,00 €
06
P/N (SKU): 9GQ0-060410-00002
Part Name: REAR LOWER SWING ARM,RH
Alternative parts:
Price: 54,60 € : 54,60 €
-+
07
P/N (SKU): 9GQ0-060310
Part Name: REAR UPPER SWING ARM, RH
Alternative parts:
Price: 56,00 € : 56,00 €
-+
08
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25
Alternative parts:
Specification: M10x1.25
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 9GQ0-060210-00001
Part Name: REAR LOWER SWING ARM, LH
Alternative parts: 9GQ0-060210-00002
Price: 37,00 € : 37,00 €
09
P/N (SKU): 9GQ0-060210-00002
Part Name: REAR LOWER SWING ARM,LH
Alternative parts:
Price: 54,60 € : 54,60 €
-+
10
P/N (SKU): 7020-0607A0
Part Name: LH REAR BEARING CARRIER ASSY,
Alternative parts:
Price: 82,10 € : 82,10 €
-+
11
P/N (SKU): 9060-050003
Part Name: SHORT BUSHING, SWING ARM
Alternative parts:
Price: 5,10 € : 5,10 €
-+
12
P/N (SKU): 7020-0608A0
Part Name: RH REAR BEARING CARRIER ASSY
Alternative parts:
Price: 73,60 € : 73,60 €
-+
13
P/N (SKU): 3120100
Part Name: RESERVOIR
Alternative parts:
Price: 0,95 € : 0,95 €
-+
14
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Alternative parts: 9GQ0-050710
Specification: 30
Price: 31,30 € : 31,30 €
15
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE 55
Alternative parts:
Specification: 55
Price: 2,05 € : 2,05 €
-+
16
P/N (SKU): 7020-060702
Part Name: MIDDLE SPACER, REAR BEARING CARRIER
Alternative parts: 7020-060702-00001
Price: 5,60 € : 5,60 €
16
P/N (SKU): 7020-060702-00001
Part Name: MIDDLE SPACER, REAR BEARING CARRIER
Alternative parts:
Price: 2,60 € : 2,60 €
-+
17
P/N (SKU): 30006-102100810
Part Name: BOLT M10x1.25x100
Alternative parts:
Specification: M10x1.25x100
Price: 1,25 € : 1,25 €
-+
18
P/N (SKU): 9GQ0-060110
Part Name: REAR UPPER SWING ARM, LH
Alternative parts:
Price: 56,00 € : 56,00 €
-+
19
P/N (SKU): 30006-102055810
Part Name: BOLT M10x1.25x55
Alternative parts:
Specification: M10x1.25x55
Price: 0,95 € : 0,95 €
-+
20
P/N (SKU): 9GQ0-060500
Part Name: REAR SHOCK ABSORBER
Alternative parts:
Price: 99,70 € : 99,70 €
-+
21
P/N (SKU): 30006-102070810
Part Name: BOLT M10x1.25x70
Alternative parts:
Specification: M10x1.25x70
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 9010-050003
Part Name: CAP, CUSHION SLEEVE
Alternative parts:
Price: 1,65 € : 1,65 €
-+
23
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE
Alternative parts:
Price: 3,70 € : 3,70 €
-+
24
P/N (SKU): 9010-060800-1000
Part Name: BALL PIN, RH
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
24
P/N (SKU): 9010-060800-20000
Part Name: BALL PIN, RH
Alternative parts:
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
25
P/N (SKU): 9GQ0-044046
Part Name: RH FENDER, REAR SUSPENSION
Alternative parts:
Price: 2,60 € : 2,60 €
-+
26
P/N (SKU): 30006-060016810
Part Name: BOLT M6x16
Alternative parts: 30006-060016870
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 7020-060003
Part Name: GUARD, REAR BEARING CARRIER
Alternative parts:
Price: 7,00 € : 7,00 €
-+
28
P/N (SKU): 30006-060010810
Part Name: BOLT M6x10
Alternative parts:
Specification: GB5789 M6x10 TRIVALENT CHROMIUM 8.8
Price: 1,25 € : 1,25 €
-+
29
P/N (SKU): 9GQ0-044045
Part Name: LH FENDER, REAR SUSPENSION
Alternative parts:
Price: 2,60 € : 2,60 €
-+
