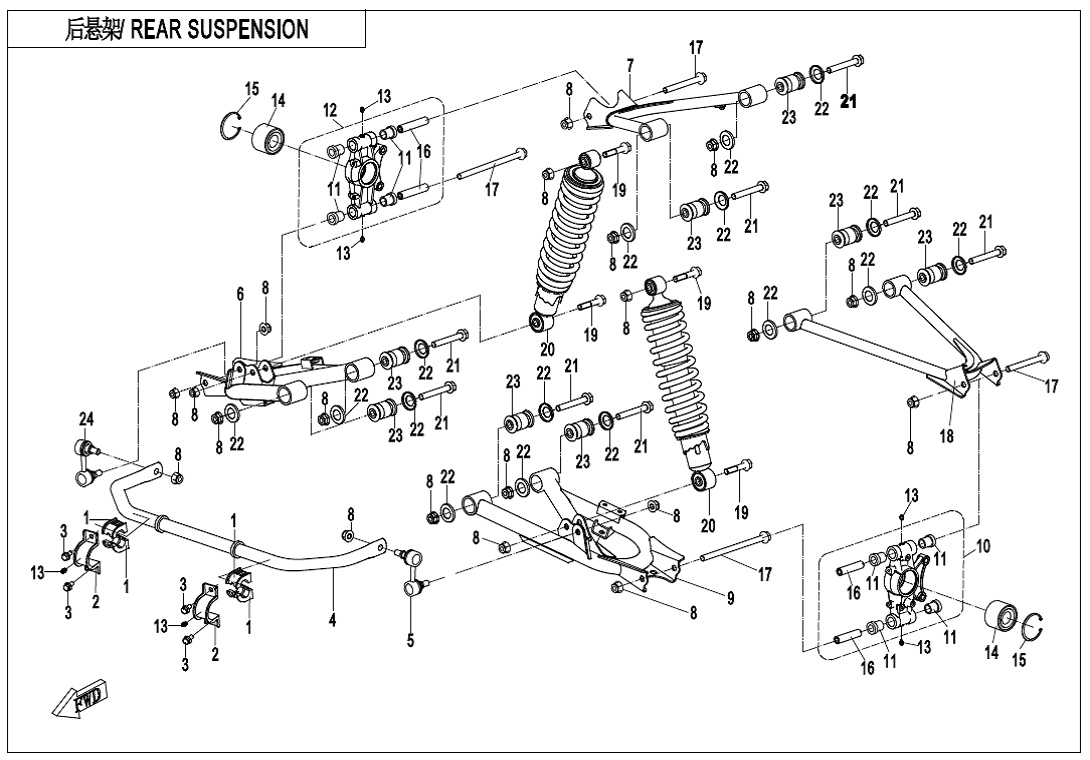

REAR SUSPENSION - F06-V2 | 2020, ATV, CF500ATR-2S | CFMOTO

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 9GQ0-060003

Part Name: SUPPORTER, SWAY BAR

Alternative parts:

Price: 2,70 € : 2,70 €

02

P/N (SKU): 9GQ0-060601-00001

Part Name: COVER, SWAY BAR

Alternative parts:

Price: 2,10 € : 2,10 €

03

P/N (SKU): 30006-080012810

Part Name: BOLT M8x12

Alternative parts:

Specification: M8x12

Price: 1,00 € : 1,00 €

04

P/N (SKU): 9GQ0-060610-10000

Part Name: REAR SWAY BAR ASSY

Alternative parts:

Price: 42,16 € : 42,16 €

05

P/N (SKU): 9010-060700-1000

Part Name: BALL PIN, LH

Alternative parts: 9010-060700-20000

Specification: SOMIC

Price: 75,06 € : 75,06 €

05

P/N (SKU): 9010-060700-20000

Part Name: BALL PIN, LH

Alternative parts:

Specification: CCVI

Price: 27,50 € : 27,50 €

06

P/N (SKU): 9GQ0-060410-00001

Part Name: REAR LOWER SWING ARM, RH

Alternative parts: 9GQ0-060410-00002

Price: 37,00 € : 37,00 €

07

P/N (SKU): 9GQ0-060310

Part Name: REAR UPPER SWING ARM, RH

Alternative parts:

Price: 56,00 € : 56,00 €

08

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Alternative parts:

Specification: M10x1.25

Price: 1,00 € : 1,00 €

09

P/N (SKU): 9GQ0-060210-00001

Part Name: REAR LOWER SWING ARM, LH

Alternative parts: 9GQ0-060210-00002

Price: 37,00 € : 37,00 €

10

P/N (SKU): 7020-0607A0

Part Name: LH REAR BEARING CARRIER ASSY,

Alternative parts:

Price: 82,10 € : 82,10 €

11

P/N (SKU): 9060-050003

Part Name: SHORT BUSHING, SWING ARM

Alternative parts:

Price: 5,10 € : 5,10 €

12

P/N (SKU): 7020-0608A0

Part Name: RH REAR BEARING CARRIER ASSY

Alternative parts:

Price: 73,60 € : 73,60 €

13

P/N (SKU): 3120100

Part Name: RESERVOIR

Alternative parts:

Price: 1,00 € : 1,00 €

14

P/N (SKU): 30499-03080

Part Name: BEARING, HUB

Alternative parts: 9GQ0-050710

Specification: 30

Price: 31,30 € : 31,30 €

15

P/N (SKU): 30800-05505

Part Name: CIRCLIP FOR HOLE 55

Alternative parts:

Specification: 55

Price: 2,10 € : 2,10 €

16

P/N (SKU): 7020-060702

Part Name: MIDDLE SPACER, REAR BEARING CARRIER

Alternative parts: 7020-060702-00001

Price: 5,60 € : 5,60 €

17

P/N (SKU): 30006-102100810

Part Name: BOLT M10x1.25x100

Alternative parts:

Specification: M10x1.25x100

Price: 1,60 € : 1,60 €

18

P/N (SKU): 9GQ0-060110

Part Name: REAR UPPER SWING ARM, LH

Alternative parts:

Price: 56,00 € : 56,00 €

19

P/N (SKU): 30006-102055810

Part Name: BOLT M10x1.25x55

Alternative parts:

Specification: M10x1.25x55

Price: 1,60 € : 1,60 €

20

P/N (SKU): 9GQ0-060500

Part Name: REAR SHOCK ABSORBER

Alternative parts:

Price: 99,70 € : 99,70 €

21

P/N (SKU): 30006-102070810

Part Name: BOLT M10x1.25x70

Alternative parts:

Specification: M10x1.25x70

Price: 1,00 € : 1,00 €

22

P/N (SKU): 9010-050003

Part Name: CAP, CUSHION SLEEVE

Alternative parts:

Price: 1,70 € : 1,70 €

23

P/N (SKU): 9010-050500

Part Name: CUSHION SLEEVE

Alternative parts:

Price: 3,70 € : 3,70 €

24

P/N (SKU): 9010-060800-1000

Part Name: BALL PIN, RH

Alternative parts: 9010-060800-20000

Specification: SOMIC

Price: 27,50 € : 27,50 €

24

P/N (SKU): 9010-060800-20000

Part Name: BALL PIN, RH

Alternative parts:

Specification: CCVI

Price: 27,50 € : 27,50 €
