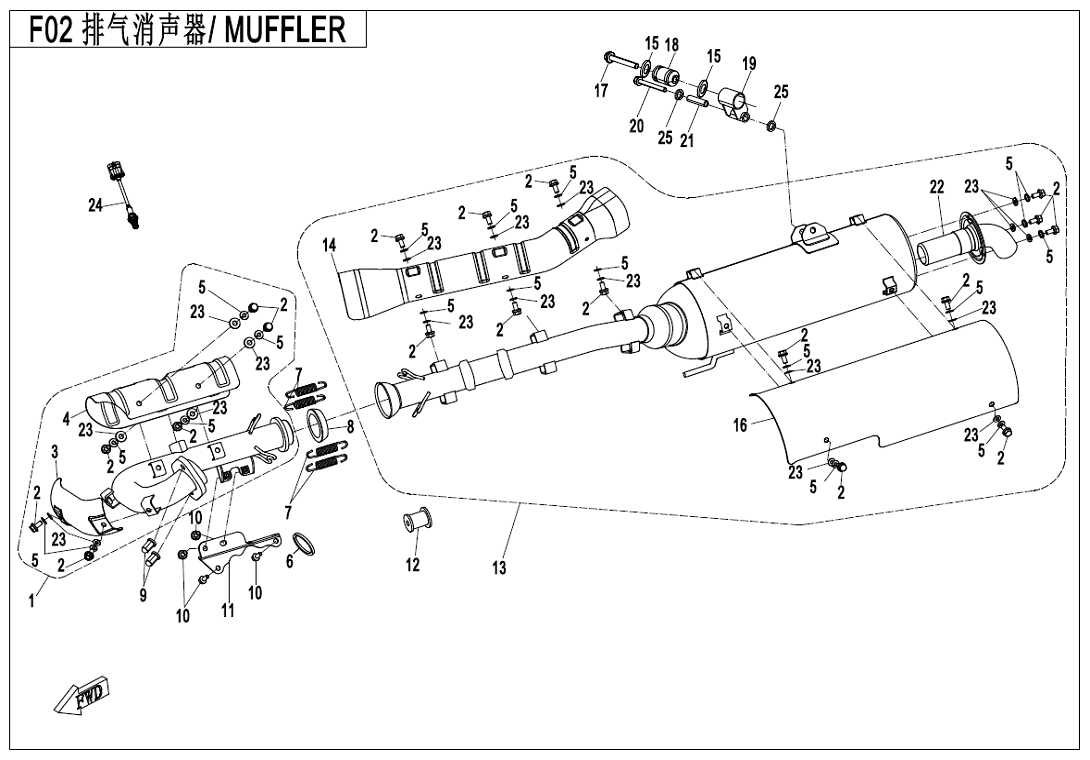

MUFFLER - F02-V2

MUFFLER - F02-V2

No.

01
P/N (SKU): 9GQ0-021100-00001
Part Name: EXHAUST PIPE ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 56,00 € : 56,00 €
02
P/N (SKU): 30000-060010700
Part Name: HEXAGON HEAD BOLTS WITH FULL THREAD
Effective: 2021-02-26
Alternative parts: 30000-060012820
Specification: M6x10
Price: 1,50 € : 1,50 €
03
P/N (SKU): 9GQ0-021101
Part Name: FRONT HEAT INSULDATOR, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts: 9GQ0-021100-00001
Price: 12,00 € : 12,00 €
04
P/N (SKU): 9GQ0-021102
Part Name: HEAT INSULATOR, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts: 9GQ0-021100-00001
Price: 12,00 € : 12,00 €
05
P/N (SKU): 30306-060800
Part Name: PLAIN WASHERS
Effective: 2021-02-26
Alternative parts: null
Specification: φ6
Price: 2,00 € : 2,00 €
06
P/N (SKU): 0800-022300
Part Name: EXHAUST PIPE GASKET ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
07
P/N (SKU): 9CR6-020002-00001
Part Name: DRAG SPRING,MUFFLER
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
08
P/N (SKU): 7030-021001
Part Name: SMALL GRAPHITE RING
Effective: 2021-02-26
Alternative parts: 9AWA-021003-00001/9AWA-021003-00002
Price: 10,00 € : 10,00 €
08
P/N (SKU): 9AWA-021003-00001
Part Name: SMALL GRAPHITE RING
Effective: 2021-02-26
Alternative parts: 9AWA-021003-00002
Price: 12,00 € : 12,00 €
09
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2021-02-26
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9GQ0-020001-00002
Part Name: EXHAUST PIPE SUPPORT PLATE
Effective: 2021-02-26
Alternative parts: 9GQ0-020001-00003
Price: 4,00 € : 4,00 €
12
P/N (SKU): 9GQ0-020002
Part Name: RUBBER BUSHING, MUFFLER
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
13
P/N (SKU): 9GQA-021200
Part Name: MUFFLER ASSY
Effective: 2021-02-26
Alternative parts: 9GQA-021200-10000
Price: 142,00 € : 142,00 €
14
P/N (SKU): 9GQ0-021202-10000
Part Name: FRONT HEAT INSULATOR, REAR END
Effective: 2021-02-26
Alternative parts: null
Price: 20,00 € : 20,00 €
-+
15
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2021-02-26
Alternative parts: 9DSV-050900-6K00
Price: 2,00 € : 2,00 €
16
P/N (SKU): 9GQ0-021201-10000
Part Name: HEAT INSULATOR, MUFFLER BODY
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
17
P/N (SKU): 30006-102070810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M10x1.25x70@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
19
P/N (SKU): 7020-022000-00001
Part Name: MOUNT ASSY, MUFFLER
Effective: 2021-02-26
Alternative parts: 9CR6-020003+9CR6-020020
Price: 9,50 € : 9,50 €
19
P/N (SKU): 9CR6-020020
Part Name: MOUNT ASSY, MUFFLER
Effective: 2021-02-26
Alternative parts: 9CR6-020020-00001
Price: 9,50 € : 9,50 €
-+
20
P/N (SKU): 30006-080065810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M8x65
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 7020-020001
Part Name: MUFFLER LINER
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
22
P/N (SKU): 9GQ0-021320
Part Name: SPARK ARRESTOR
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
23
P/N (SKU): 30303-060900
Part Name: SPRING COIL SPRING LOCK WASHERS
Effective: 2021-02-26
Alternative parts: 30303-060112
Specification: 6
Price: 1,50 € : 1,50 €
24
P/N (SKU): 018B-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Alternative parts: null
Price: 112,00 € : 112,00 €
-+
25
P/N (SKU): 9CR6-020003
Part Name: WIRE WASHER
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
