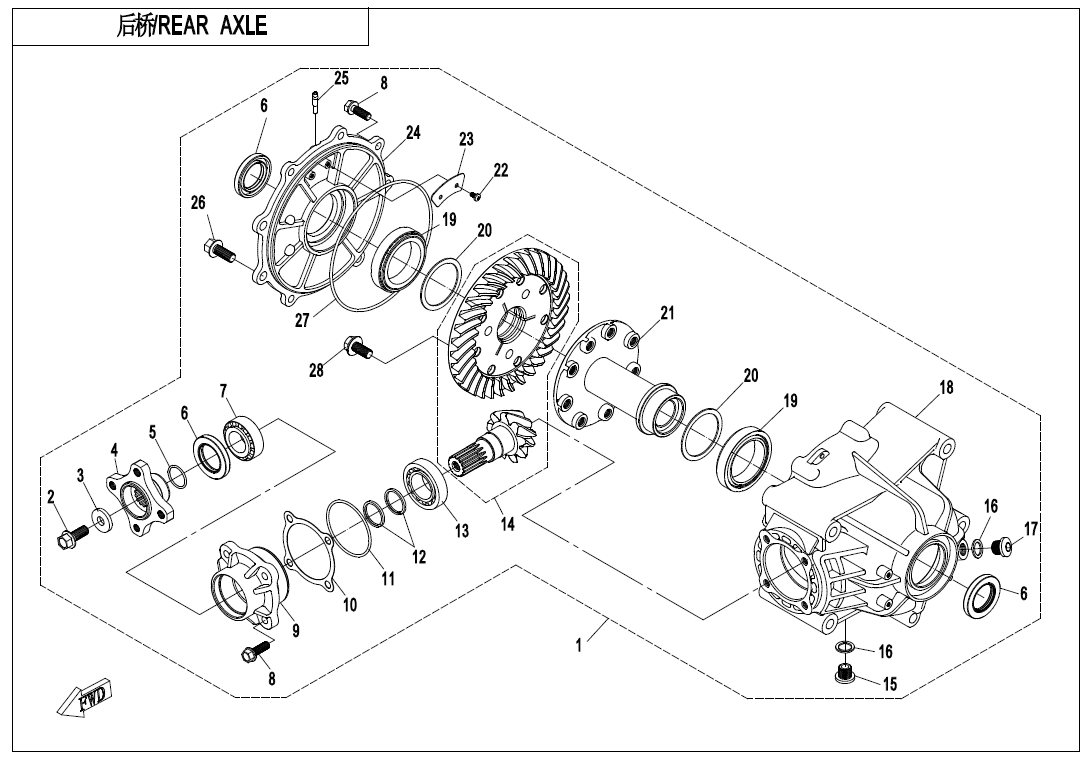

REAR AXLE(NO DIFFERENTIAL) - F33-C | 2020, ATV, CF1000ATR |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): Q850-330000-20000

Part Name: Q850 REAR GEAR CASE

Alternative parts: Q850-330000-20001

Price: 620,00 € : 620,00 €

02

P/N (SKU): 0GR0-062203

Part Name: BOLT M10x1.25x20

Specification: M10x1.25x20

Price: 2,00 € : 2,00 €

03

P/N (SKU): 0GR0-062204

Part Name: WASHER 10x27.5x4

Specification: 10x27.5x4

Price: 2,50 € : 2,50 €

04

P/N (SKU): Q850-331002

Part Name: COUPLER

Price: 38,00 € : 38,00 €

05

P/N (SKU): 0800-062205

Part Name: O-SEAL RING 25x2

Specification: 25x2

Price: 2,00 € : 2,00 €

06

P/N (SKU): 0800-062204

Part Name: OIL SEAL 35x50x7

Specification: 35x50x7

Price: 6,50 € : 6,50 €

07

P/N (SKU): 30409-02500

Part Name: BEARING

Specification: 33005(25x47x17)

Price: 19,00 € : 19,00 €

08

P/N (SKU): 0110-060011-0010

Part Name: BOLT M8x28

Specification: M8x28

Price: 2,00 € : 2,00 €

09

P/N (SKU): Q830-311002-00001

Part Name: BEARING SEAT

Price: 21,00 € : 21,00 €

10

P/N (SKU): Q830-310023-00200

Part Name: ADJUSTING WASHER

Specification: t=0.30

Price: 2,00 € : 2,00 €

10

P/N (SKU): Q830-310023-00100

Part Name: ADJUSTING WASHER

Specification: t=0.20

Price: 2,00 € : 2,00 €

11

P/N (SKU): Q830-310006-10000

Part Name: O-RING 55x2.5

Specification: 55x2.5

Price: 3,00 € : 3,00 €

12

P/N (SKU): Q830-311003-01200

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.80

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01300

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.90

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01400

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=3.00

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00100

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.10

Price: 1,50 € : 1,50 €

12

P/N (SKU): Q830-311003-00800

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.48

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01000

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.60

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00200

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.20

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00700

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.46

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00900

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.50

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01100

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.70

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00300

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.30

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00400

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.40

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00500

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.42

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00600

Part Name: ADJUSTING WASHER 32x25.4

Specification: t=2.44

Price: 1,50 € : 1,50 €

13

P/N (SKU): 30409-03000

Part Name: BEARING

Specification: 32006(30x55x17)

Price: 17,00 € : 17,00 €

14

P/N (SKU): Q850-3300A0-00001

Part Name: BEVEL GEAR ASSY., REAR GEAR CASE

Price: 142,00 € : 142,00 €

14

P/N (SKU): Q850-3300A0

Part Name: BEVEL GEAR ASSY REAR ALXE

Alternative parts: Q850-3300A0-00001

Price: 142,00 € : 142,00 €

15

P/N (SKU): 0180-332100

Part Name: OIL DRAIN BOLT M14x1.25x12, MAGNETIC

Specification: M14x1.25x12

Price: 5,50 € : 5,50 €

16

P/N (SKU): 0180-011006

Part Name: GASKET 14

Specification: 14

Price: 1,50 € : 1,50 €

17

P/N (SKU): 0180-021008-0010

Part Name: BOLT M14x1.25x12

Specification: M14x1.25x12

Price: 4,50 € : 4,50 €

18

P/N (SKU): Q850-330001-00001

Part Name: CASE, REAR GEAR CASE

Price: 106,00 € : 106,00 €

19

P/N (SKU): 30409-05000

Part Name: BEARING

Price: 48,00 € : 48,00 €

20

P/N (SKU): Q820-330003-00300

Part Name: ADJUSTING WASHER 61x50.5

Specification: t=0.50

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00500

Part Name: ADJUSTING WASHER 61x50.5

Specification: t=0.92

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00900

Part Name: ADJUSTING WASHER 61x50.5

Specification: t=1.00

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00700

Part Name: ADJUSTING WASHER 61x50.5

Specification: t=0.96

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00800

Part Name: ADJUSTING WASHER 61x50.5

Specification: t=0.98

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00600

Part Name: ADJUSTING WASHER 61x50.5

Specification: t=0.94

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00400

Part Name: ADJUSTING WASHER 61x50.5

Specification: t=0.90

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00200

Part Name: ADJUSTING WASHER 61x50.5

Specification: t=0.30

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00100

Part Name: ADJUSTING WASHER 61x50.5

Specification: t=0.10

Price: 2,00 € : 2,00 €

21

P/N (SKU): Q850-330003

Part Name: MOUNTING BASE

Alternative parts: Q850-330003-00001

Price: 50,00 € : 50,00 €

21

P/N (SKU): Q850-330003-00001

Part Name: MOUNTING BASE

Price: 60,00 € : 60,00 €

22

P/N (SKU): 30105-040008410

Part Name: SCREW M4x8

Specification: M4x8

Price: 2,00 € : 2,00 €

23

P/N (SKU): Q830-310022

Part Name: OIL GUARD

Price: 2,00 € : 2,00 €

24

P/N (SKU): Q850-330002

Part Name: COVER, REAR GEAR CASE CASE

Alternative parts: Q850-330002-00001

Price: 23,00 € : 23,00 €

25

P/N (SKU): 0180-311004-0020

Part Name: JOINT, BREATHER HOSE

Price: 1,50 € : 1,50 €

26

P/N (SKU): 0180-330004-0010

Part Name: BOLT M10x1.25x25

Specification: M10x1.25x25

Price: 2,00 € : 2,00 €

27

P/N (SKU): 0180-334002

Part Name: O-SEAL RING 151x3

Specification: 151x3

Price: 3,50 € : 3,50 €

28

P/N (SKU): 0181-313100-0010

Part Name: BOLT M10x1.25x22

Specification: M10x1.25x22

Price: 1,50 € : 1,50 €
