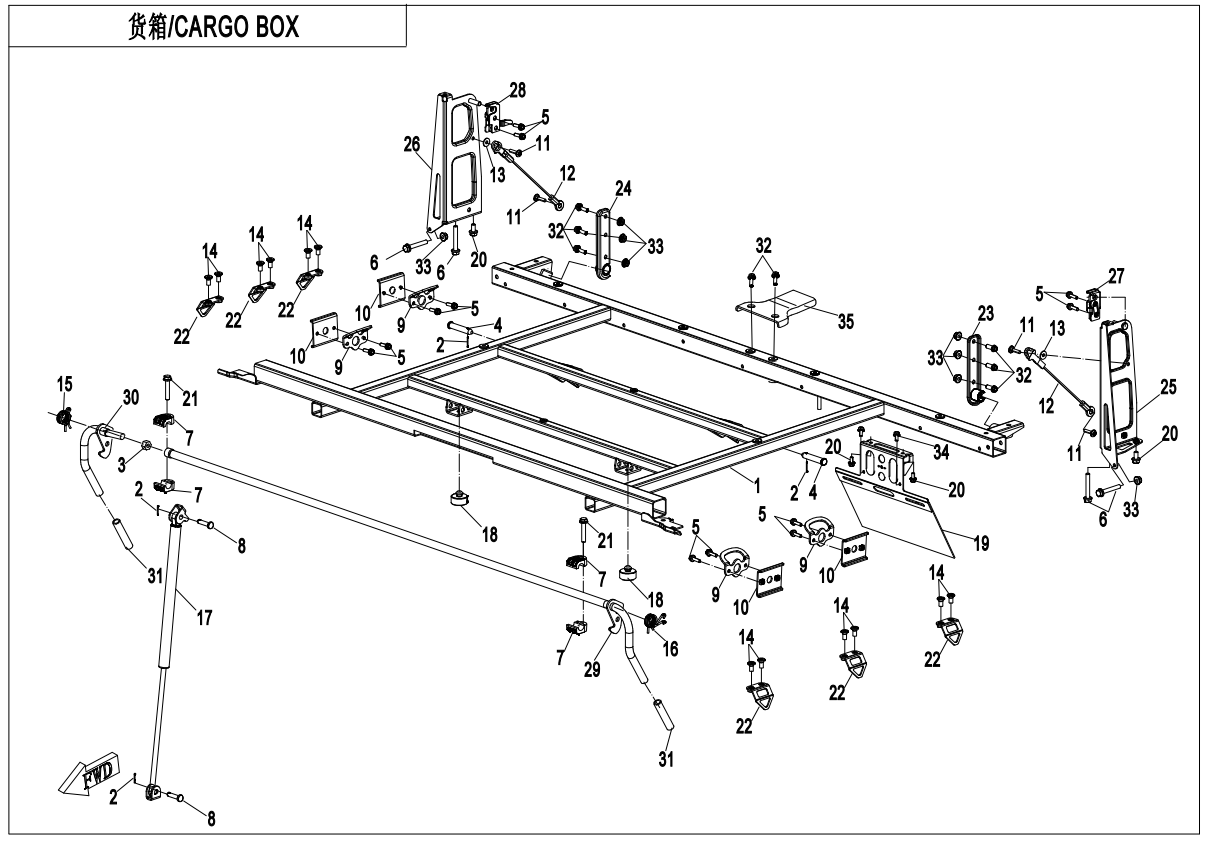

CARGO BOX - F22-2-V3 | 2019, UTV, CF1000UTR-3

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 5HY0-221000-10000

Part Name: BASE FRAME ASSY

Effective: 2021-02-26

Alternative parts: 5HY#-221000-1000

Price: 137,60 € : 137,60 €

P/N (SKU): 5HY0-220008

Part Name: R TYPE PIN SHAFT

Effective: 2021-02-26

Alternative parts: 5HY#-220008-1000

Price: 1,50 € : 1,50 €

P/N (SKU): 30211-123810

Part Name: NUT M12x1.5

Effective: 2021-02-26

Alternative parts:

Specification: M12x1.5

Price: 1,25 € : 1,25 €

P/N (SKU): 9030-220011-00001

Part Name: PIN SAHFT, ROTATION

Effective: 2021-02-26

Alternative parts:

Specification: COLOR ZINC

Price: 1,50 € : 1,50 €

P/N (SKU): 30006-060020810

Part Name: BOLT

Effective: 2021-02-26

Alternative parts: 30006-060020870

Specification: M6Ã20

Price: 0,55 € : 0,55 €

P/N (SKU): 30006-080055810

Part Name: BOLT

Effective: 2021-02-26

Alternative parts:

Specification: M8Ã55

Price: 0,95 € : 0,95 €

P/N (SKU): 7030-221123

Part Name: COLLAR, ROTATE SHAFT

Effective: 2021-02-26

Alternative parts:

Price: 1,25 € : 1,25 €

P/N (SKU): 7030-222251

Part Name: PIN SHAFT, GAS SPRING

Effective: 2021-02-26

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 9030-220004

Part Name: HOOK, BAND

Effective: 2021-02-26

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 7030-221140

Part Name: MOUNTING BRACKET, HOOK

Effective: 2021-02-26

Alternative parts:

Price: 4,80 € : 4,80 €

P/N (SKU): 7030-010508

Part Name: TAIL BOX CABLE BOLT

Effective: 2021-02-26

Alternative parts:

Price: 3,70 € : 3,70 €

P/N (SKU): 7030-010500-10000

Part Name: TAIL BOX FIXING CABLE

Effective: 2021-02-26

Alternative parts:

Price: 11,00 € : 11,00 €

P/N (SKU): 30305-060112

Part Name: WASHER

Effective: 2021-02-26

Alternative parts:

Specification: Ï6

Price: 0,55 € : 0,55 €

P/N (SKU): 7030-220113

Part Name: BOLT M8x20

Effective: 2021-02-26

Alternative parts:

Specification: M8x20

Price: 0,95 € : 0,95 €

P/N (SKU): 5HY0-220007

Part Name: RH TORSIONAL SPRING

Effective: 2021-02-26

Alternative parts: 5HYV-220007-1P00

Price: 0,55 € : 0,55 €

P/N (SKU): 5HY0-220006

Part Name: TORSIONAL SPRING, LH

Effective: 2021-02-26

Alternative parts: 5HYV-220006-1P00

Price: 0,55 € : 0,55 €

P/N (SKU): 5HY0-222080-20000

Part Name: AIR SPRING

Effective: 2021-02-26

Alternative parts:

Price: 20,20 € : 20,20 €

P/N (SKU): 5HY0-220004

Part Name: RUBBER MAT

Effective: 2021-02-26

Alternative parts:

Price: 1,25 € : 1,25 €

P/N (SKU): 5HY0-220001

Part Name: BRACKET, REAR LICENCE

Effective: 2021-02-26

Alternative parts: 5HY0-220001-10000

Price: 28,60 € : 28,60 €

P/N (SKU): 5HY0-220001-20000

Part Name: BRACKET, REAR LICENSE

Effective: 2021-02-26

Alternative parts:

Price: 12,50 € : 12,50 €

P/N (SKU): 30006-060016810

Part Name: BOLT

Effective: 2021-02-26

Alternative parts:

Specification: M6Ã16

Price: 0,55 € : 0,55 €

P/N (SKU): 30006-080045810

Part Name: BOLT

Effective: 2021-02-26

Alternative parts:

Specification: M8Ã45

Price: 0,95 € : 0,95 €

P/N (SKU): 5HY0-222010

Part Name: CARGO BOX HOOK ASSY

Effective: 2021-02-26

Alternative parts:

Price: 12,50 € : 12,50 €

P/N (SKU): 5HY0-222020

Part Name: CARGO BOX DOOR LH BRACKET ASSY

Effective: 2021-02-26

Alternative parts:

Price: 26,40 € : 26,40 €

P/N (SKU): 5HY0-222030-10000

Part Name: RH BRACKET, CARGO BOX DOOR

Effective: 2021-02-26

Alternative parts:

Price: 7,70 € : 7,70 €

P/N (SKU): 5HY0-222040

Part Name: LEFT PROTECTION PLATE

Effective: 2021-02-26

Alternative parts:

Price: 39,90 € : 39,90 €

P/N (SKU): 5HY0-222050

Part Name: RIGHT PROTECTION PLATE

Effective: 2021-02-26

Alternative parts:

Price: 39,90 € : 39,90 €

P/N (SKU): 5HY0-222060

Part Name: LOCK, LH REAR DOOR

Effective: 2021-02-26

Alternative parts:

Price: 12,50 € : 12,50 €

P/N (SKU): 5HY0-222070

Part Name: REAR RH DOOR LOCK

Effective: 2021-02-26

Alternative parts:

Price: 12,50 € : 12,50 €

P/N (SKU): 5HY0-222110

Part Name: LH ROTATION SHAFT ASSY

Effective: 2021-02-26

Alternative parts:

Price: 37,00 € : 37,00 €

P/N (SKU): 5HY0-222120

Part Name: RH ROTATION SHAFT ASSY

Effective: 2021-02-26

Alternative parts:

Price: 28,60 € : 28,60 €

P/N (SKU): 7030-220104

Part Name: SLEEVE, ROTATE

Effective: 2021-02-26

Alternative parts:

Price: 1,25 € : 1,25 €

P/N (SKU): 30006-080020810

Part Name: BOLT

Effective: 2021-02-26

Alternative parts:

Specification: M8Ã20

Price: 0,85 € : 0,85 €

P/N (SKU): 30204-080810

Part Name: LOCK NUT

Effective: 2021-02-26

Alternative parts:

Specification: M8

Price: 0,85 € : 0,85 €

P/N (SKU): 30202-050110

Part Name: NUT

Effective: 2021-02-26

Alternative parts:

Specification: M5

Price: 0,95 € : 0,95 €

P/N (SKU): 5HY0-220009

Part Name: CARGO BOX DOOR LIMIT PLATE

Effective: 2021-02-26

Alternative parts:

Price: 2,95 € : 2,95 €
