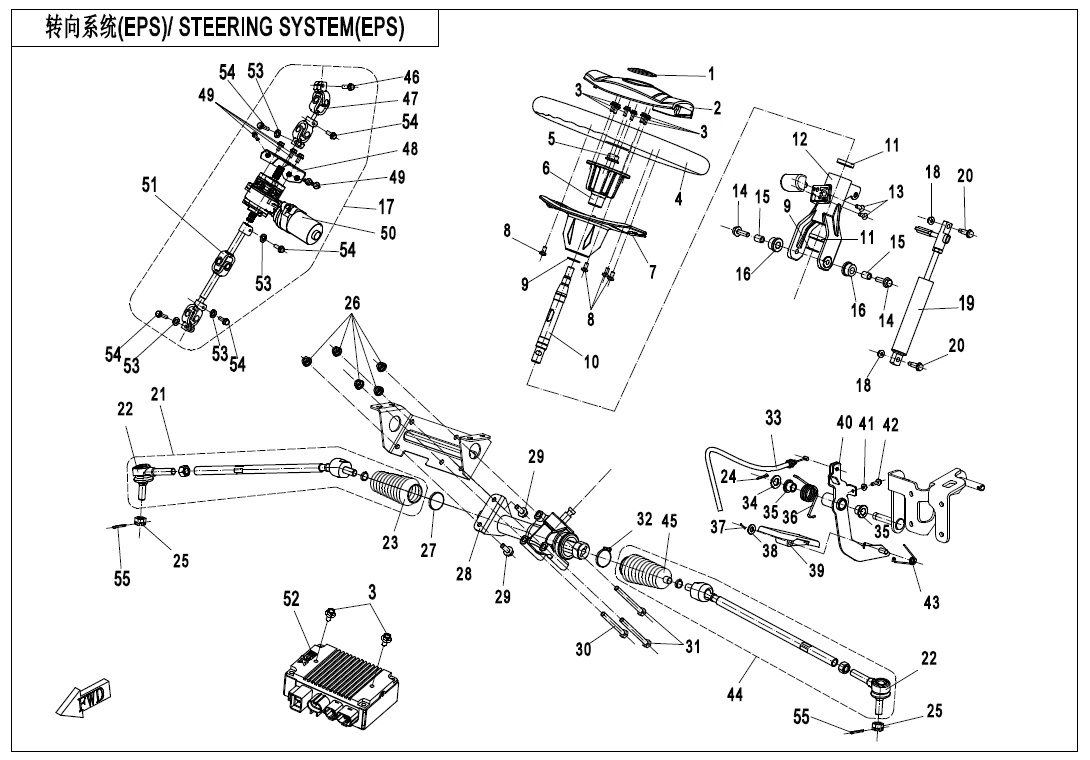

STEERING SYSTEM(EPS) - F10-B-V3

STEERING SYSTEM(EPS) - F10-B-V3

No.

01
P/N (SKU): 9060-190001
Part Name: CFMOTO LOGO 58x49
Effective: 2021-02-26
Alternative parts:
Specification: 58x49
Price: 15,30 € : 15,30 €
-+
02
P/N (SKU): 7030-102002
Part Name: UPPER DECO COVER, STEERING WHEEL
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
03
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 7030-102100
Part Name: STEERING WHEEL
Effective: 2021-02-26
Alternative parts:
Price: 54,20 € : 54,20 €
-+
05
P/N (SKU): 30204-122810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M12×1.25
Price: 1,05 € : 1,05 €
-+
06
P/N (SKU): 7030-100002
Part Name: FIXED SEAT, STEERING WHEEL
Effective: 2021-02-26
Alternative parts:
Price: 22,70 € : 22,70 €
-+
07
P/N (SKU): 7000-102003
Part Name: LOWER DECO COVER, STEERING WHEEL
Effective: 2021-02-26
Alternative parts:
Price: 2,95 € : 2,95 €
-+
08
P/N (SKU): 30112-060012410
Part Name: SCREW ASSY M6x12
Effective: 2021-02-26
Alternative parts:
Specification: M6x12
Price: 0,95 € : 0,95 €
-+
09
P/N (SKU): 30801-02005
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 20
Price: 1,05 € : 1,05 €
-+
10
P/N (SKU): 7000-100001
Part Name: STEERING COLUMN
Effective: 2021-02-26
Alternative parts:
Price: 22,70 € : 22,70 €
-+
11
P/N (SKU): 30400-02005
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6804Z
Price: 5,50 € : 5,50 €
-+
12
P/N (SKU): 9060-101008-00001
Part Name: MOUNING BRACKET, STEERING WHEEL
Effective: 2021-02-26
Alternative parts: 5HYV-101008-1H00
Price: 38,50 € : 38,50 €
-+
13
P/N (SKU): 30107-060012410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M6×12
Price: 0,95 € : 0,95 €
-+
14
P/N (SKU): 30006-080028810
Part Name: BOLT M8x28
Effective: 2021-02-26
Alternative parts:
Specification: M8x28
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 9060-100008-00001
Part Name: METAL BUSHING, STEERING COLUMN
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
16
P/N (SKU): 9060-100009
Part Name: NYLON BUSHING, STEERING COLUMN
Effective: 2021-02-26
Alternative parts:
Price: 4,40 € : 4,40 €
-+
17
P/N (SKU): 7000-103000
Part Name: EPS KITS
Effective: 2021-02-26
Alternative parts:
Price: 680,50 € : 680,50 €
-+
18
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,05 € : 1,05 €
-+
19
P/N (SKU): 9060-102000-00001
Part Name: GAS SPRING
Effective: 2021-02-26
Alternative parts:
Price: 30,40 € : 30,40 €
-+
20
P/N (SKU): 9060-102002-00001
Part Name: AIR SPRING UPPER FIXED BOLT
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
21
P/N (SKU): 7000-104200-30000
Part Name: RH STEERING ROD ASSY
Effective: 2021-02-26
Alternative parts:
Price: 65,00 € : 65,00 €
-+
22
P/N (SKU): 9060-101170
Part Name: STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts:
Specification: CCVI
Price: 26,00 € : 26,00 €
-+
22
P/N (SKU): 9030-101170
Part Name: STEERING KNUCKLE ASSY
Effective: 2021-02-26
Alternative parts: 9060-101170
Specification: SOMIC
Price: 16,80 € : 16,80 €
23
P/N (SKU): 9060-104001
Part Name: RH SLEEVE, TIE-ROD
Effective: 2021-02-26
Alternative parts: 9060-104001-10000
Specification: SOMIC
Price: 8,05 € : 8,05 €
23
P/N (SKU): 9060-104001-10000
Part Name: JACKET OF JOINT-R
Effective: 2021-02-26
Alternative parts:
Specification: CCVI
Price: 10,65 € : 10,65 €
-+
24
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: φ3.2×22
Price: 0,55 € : 0,55 €
-+
25
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25
Price: 1,25 € : 1,25 €
-+
26
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 0,85 € : 0,85 €
-+
27
P/N (SKU): 8010-150003
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
28
P/N (SKU): 9060-104060
Part Name: STEERING MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 98,90 € : 98,90 €
-+
29
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×20
Price: 0,85 € : 0,85 €
-+
30
P/N (SKU): 30019-080075810
Part Name: BOLT M8x75
Effective: 2021-02-26
Alternative parts:
Specification: M8x75
Price: 0,95 € : 0,95 €
-+
31
P/N (SKU): 30019-080090810
Part Name: BOLT M8x90
Effective: 2021-02-26
Alternative parts:
Specification: M8x90
Price: 0,95 € : 0,95 €
-+
32
P/N (SKU): 9010-020007
Part Name: A-TYPE SCREW CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: 50-70
Price: 2,65 € : 2,65 €
-+
33
P/N (SKU): 7000-105020
Part Name: THROTTLE CABLE
Effective: 2021-02-26
Alternative parts: 7000-105020-10000
Price: 8,10 € : 8,10 €
33
P/N (SKU): 7000-105020-10000
Part Name: THROTTLE CABLE
Effective: 2021-02-26
Alternative parts: 5BWV-105020-1400
Price: 10,25 € : 10,25 €
34
P/N (SKU): 30306-120112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ12
Price: 0,55 € : 0,55 €
-+
35
P/N (SKU): 9060-105002
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
36
P/N (SKU): 9060-105001
Part Name: TORSION SPRING, THROTTLE
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
37
P/N (SKU): 30903-0202010
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: 2x20
Price: 0,95 € : 0,95 €
-+
38
P/N (SKU): 30306-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ8
Price: 0,55 € : 0,55 €
-+
39
P/N (SKU): 9060-105004
Part Name: THROTTLE PEDAL
Effective: 2021-02-26
Alternative parts:
Price: 2,60 € : 2,60 €
-+
40
P/N (SKU): 9060-105010-1B000
Part Name: THROTTLE PEDAL ASSY
Effective: 2021-02-26
Alternative parts:
Specification: BLACK
Price: 14,00 € : 14,00 €
-+
40
P/N (SKU): 9060-105010-2B000
Part Name: THROTTLE PEDAL ASSY
Effective: 2021-02-26
Alternative parts:
Specification: BLACK
Price: 15,80 € : 15,80 €
-+
41
P/N (SKU): 30202-050110
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M5
Price: 0,95 € : 0,95 €
-+
42
P/N (SKU): 30006-050020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M5×20
Price: 0,55 € : 0,55 €
-+
43
P/N (SKU): 9060-105003
Part Name: TORSION SPRING, FOOT PEDAL
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
44
P/N (SKU): 7000-104100-30000
Part Name: LH STEERING ROD ASSY
Effective: 2021-02-26
Alternative parts:
Price: 63,70 € : 63,70 €
-+
45
P/N (SKU): 9060-104002
Part Name: LH SLEEVE, TIE-ROD
Effective: 2021-02-26
Alternative parts: 9060-104002-10000
Specification: SOMIC
Price: 8,05 € : 8,05 €
45
P/N (SKU): 9060-104002-10000
Part Name: JACKET OF JOINT-L
Effective: 2021-02-26
Alternative parts:
Specification: CCVI
Price: 10,65 € : 10,65 €
-+
46
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×25
Price: 0,55 € : 0,55 €
-+
47
P/N (SKU): 7000-103100
Part Name: UNIVERSAL JOINT, UPPER
Effective: 2021-02-26
Alternative parts:
Price: 63,00 € : 63,00 €
-+
48
P/N (SKU): 7000-103350
Part Name: BRACKET, EPS
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
49
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×16
Price: 0,55 € : 0,55 €
-+
50
P/N (SKU): 7030-106200-00001
Part Name: EPS ASSY
Effective: 2021-02-26
Alternative parts:
Price: 596,90 € : 596,90 €
-+
51
P/N (SKU): 7000-103200
Part Name: UNIVERSAL SHAFT, LOWER
Effective: 2021-02-26
Alternative parts:
Price: 66,50 € : 66,50 €
-+
52
P/N (SKU): 7030-150800
Part Name: EPS CONTROLLER
Effective: 2021-02-26
Alternative parts:
Price: 301,40 € : 301,40 €
-+
53
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ8
Price: 0,55 € : 0,55 €
-+
54
P/N (SKU): 30004-080030810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 9CR6-102003
Specification: M8x30
Price: 0,55 € : 0,55 €
55
P/N (SKU): 30903-0252010
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: 2.5x20
Price: 0,55 € : 0,55 €
-+
