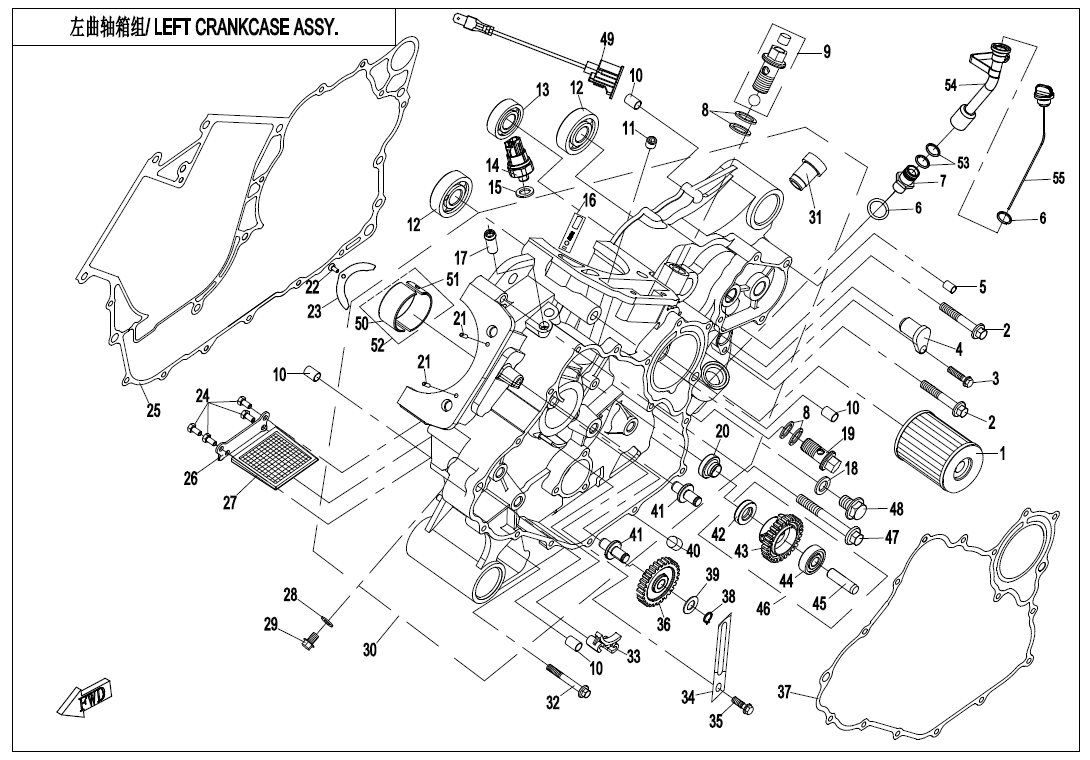

LEFT CRANKCASE ASSY.(ONLY FOR RUSSIA) - E01-1-B-V4

LEFT CRANKCASE ASSY.(ONLY FOR RUSSIA) - E01-1-B-V4

No.

01
P/N (SKU): 0800-011300-00030
Part Name: OIL FILTER, ENGINE
Effective: 2021-02-26
Alternative parts: 0800-011300-0004
Specification: FOR RUSSIA ONLY , DONGGUAN FULVSHENG
Price: 10,00 € : 10,00 €
02
P/N (SKU): 0040-012006-0010
Part Name: BOLT M8x50
Effective: 2021-02-26
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Effective: 2021-02-26
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0130-011400
Part Name: PLUG, SEAL
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2021-02-26
Specification: 8X14
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 0110-013030
Part Name: O-RING
Effective: 2021-02-26
Specification: 18x3.55
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0800-014430
Part Name: CONNECTOR, OIL DIPSTICK
Effective: 2021-02-26
Price: 3,00 € : 3,00 €
-+
08
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-02-26
Specification: 14
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0800-011500
Part Name: JOINT BOLT ASSY
Effective: 2021-02-26
Price: 3,50 € : 3,50 €
-+
10
P/N (SKU): 0010-021005
Part Name: DOWEL PIN
Effective: 2021-02-26
Specification: 10x14
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 0800-011013
Part Name: RESTRICTION PLUG
Effective: 2021-02-26
Alternative parts: 0800-011013-00001
Price: 1,50 € : 1,50 €
12
P/N (SKU): 30400-01701
Part Name: BEARING
Effective: 2021-02-26
Specification: 6303
Price: 8,00 € : 8,00 €
-+
13
P/N (SKU): 30400-01704
Part Name: DEEP GROOVE BALL BEARING
Effective: 2021-02-26
Specification: 10
Price: 13,00 € : 13,00 €
-+
14
P/N (SKU): 0800-012400
Part Name: OIL PRESSURE SWITCH
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
15
P/N (SKU): 0010-060010
Part Name: WASHER 10
Effective: 2021-02-26
Specification: 10
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0800-011400
Part Name: NOZZLE VALVE ASSY
Effective: 2021-02-26
Alternative parts: 0800-011400-00001
Price: 9,00 € : 9,00 €
-+
17
P/N (SKU): 0010-013006-0010
Part Name: BREATHER HOSE JOINT
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
18
P/N (SKU): 0010-021014
Part Name: WASHER 12
Effective: 2021-02-26
Specification: 12
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 0180-011007-0010
Part Name: BOLT M14x1.5x32
Effective: 2021-02-26
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,50 € : 2,50 €
-+
20
P/N (SKU): 0800-011105
Part Name: BREATHER SEAT
Effective: 2021-02-26
Price: 4,00 € : 4,00 €
-+
21
P/N (SKU): 30406-00500
Part Name: NEEDLE ROLLERS
Effective: 2021-02-26
Specification: P5x11.8
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 30122-040010850
Part Name: HEXAGON SOCKET COUNTERSUNK HEAD SCREWS
Effective: 2021-02-26
Specification: M4x10@BLACK OXIDATION
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 0800-011003
Part Name: THRUST WASHER, CRANKCASE
Effective: 2021-02-26
Price: 7,00 € : 7,00 €
-+
24
P/N (SKU): 0180-014004-00100
Part Name: LEAD HOLDER BOLT
Effective: 2021-02-26
Alternative parts: 0180-014004-00001
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
25
P/N (SKU): 0800-011001
Part Name: GASKET, CRANKCASE
Effective: 2021-02-26
Alternative parts: 0800-011001-10000
Price: 26,00 € : 26,00 €
25
P/N (SKU): 0800-011001-10000
Part Name: GASKET, CRANKCASE
Effective: 2021-02-26
Price: 9,50 € : 9,50 €
-+
26
P/N (SKU): 0800-011008-1000
Part Name: PLATE, OIL STRAINER
Effective: 2021-02-26
Specification: NEW STATUS
Price: 2,50 € : 2,50 €
-+
27
P/N (SKU): 0800-011009
Part Name: OIL STRAINER
Effective: 2021-02-26
Price: 3,50 € : 3,50 €
-+
28
P/N (SKU): 0010-023305
Part Name: WASHER 8.5
Effective: 2021-02-26
Specification: 8.5
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 0180-332002-0010
Part Name: FLANGE BOLT
Effective: 2021-02-26
Specification: M8x12.5@@GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 0800-011100-20040
Part Name: LH CRANKCASE ASSY
Effective: 2021-02-26
Specification: GROUP B/FOR BLUE BEARING SLEEVE, ONLY FOR RUSSIA
Price: 253,00 € : 253,00 €
-+
30
P/N (SKU): 0800-011100-20030
Part Name: LH CRANKCASE ASSY
Effective: 2021-02-26
Specification: GROUP A/FOR RED BEARING SLEEVE, ONLY FOR RUSSIA
Price: 279,00 € : 279,00 €
-+
30
P/N (SKU): 0800-011100-30030
Part Name: LH CRANKCASE ASSY
Effective: 2021-02-26
Specification: GROUP A_FOR RED BEARING SLEEVE_ONLY FOR RUSSIA
Price: 305,00 € : 305,00 €
-+
30
P/N (SKU): 0800-011100-30040
Part Name: LH CRANKCASE ASSY
Effective: 2021-02-26
Specification: GROUP B_FOR BLUE BEARING SLEEVE_ONLY FOR RUSSIA
Price: 305,00 € : 305,00 €
-+
31
P/N (SKU): 0800-011106
Part Name: GEARSHIFT LIMIT SLEEVE
Effective: 2021-02-26
Price: 5,00 € : 5,00 €
-+
32
P/N (SKU): 0010-021018-0010
Part Name: BOLT M6x55
Effective: 2021-02-26
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 0800-011007
Part Name: CHAIN GUARD
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
34
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2021-02-26
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2021-02-26
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
36
P/N (SKU): 0800-011004
Part Name: BREATHER IDLE GEAR
Effective: 2021-02-26
Price: 3,00 € : 3,00 €
-+
37
P/N (SKU): 0800-011002
Part Name: GASKET, LH CRANKCASE COVER
Effective: 2021-02-26
Price: 8,50 € : 8,50 €
-+
38
P/N (SKU): 30801-01005
Part Name: CIRCLIP FOR SHAFT
Effective: 2021-02-26
Specification: 10
Price: 1,50 € : 1,50 €
-+
39
P/N (SKU): 0800-011005
Part Name: WASHER 10
Effective: 2021-02-26
Specification: 10
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): 0800-011006
Part Name: SCREW PLUG
Effective: 2021-02-26
Alternative parts: 0800-011006-00001
Price: 2,00 € : 2,00 €
41
P/N (SKU): 0800-011104
Part Name: BREATHER IDLE GEAR SHAFT
Effective: 2021-02-26
Price: 7,00 € : 7,00 €
-+
42
P/N (SKU): 0800-011203
Part Name: OIL SEAL
Effective: 2021-02-26
Specification: 15x26x6
Price: 3,50 € : 3,50 €
-+
43
P/N (SKU): 0800-011201
Part Name: BREATHER GEAR
Effective: 2021-02-26
Price: 3,50 € : 3,50 €
-+
44
P/N (SKU): 30400-01003
Part Name: DEEP GROOVE BALL BEARING
Effective: 2021-02-26
Specification: 10
Price: 4,50 € : 4,50 €
-+
45
P/N (SKU): 0800-011202
Part Name: BREATHER SHAFT
Effective: 2021-02-26
Price: 3,50 € : 3,50 €
-+
46
P/N (SKU): 0800-011200
Part Name: BREATHER ASSY
Effective: 2021-02-26
Price: 12,00 € : 12,00 €
-+
47
P/N (SKU): 0130-011109-0010
Part Name: BOLT M8x60
Effective: 2021-02-26
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
48
P/N (SKU): 0180-011500
Part Name: MAGNETIC DRAIN BOLT
Effective: 2021-02-26
Alternative parts: 0NYV-073001-3000
Specification: M12x1.5
Price: 3,50 € : 3,50 €
-+
49
P/N (SKU): 0800-012401
Part Name: OIL PRESSURE SWITCH ADAPTOR CABLE
Effective: 2021-02-26
Price: 14,00 € : 14,00 €
-+
50
P/N (SKU): 0800-011102-0001
Part Name: PLAIN BEARING 1
Effective: 2021-02-26
Alternative parts: 0800-011102-00011
Specification: RED@THIN
Price: 8,50 € : 8,50 €
50
P/N (SKU): 0800-011102-0002
Part Name: PLAIN BEARING 1
Effective: 2021-02-26
Alternative parts: 0800-011102-00021
Specification: BLUE@THICK
Price: 8,50 € : 8,50 €
51
P/N (SKU): 0800-011103-0001
Part Name: PLAIN BEARING 2
Effective: 2021-02-26
Alternative parts: 0800-011103-00011
Specification: RED@THIN
Price: 10,00 € : 10,00 €
-+
51
P/N (SKU): 0800-011103-0002
Part Name: PLAIN BEARING 2
Effective: 2021-02-26
Alternative parts: 0800-011103-00021
Specification: BLUE@THICK
Price: 7,50 € : 7,50 €
52
P/N (SKU): 0800-0111A0
Part Name: PLAIN BEARING KIT, MAIN SHAFT
Effective: 2021-02-26
Specification: RED
Price: 25,00 € : 25,00 €
-+
52
P/N (SKU): 0800-0111B0
Part Name: PLAIN BEARING KIT, MAIN SHAFT
Effective: 2021-02-26
Alternative parts: 0800-0111B0-00001
Specification: BLUE
Price: 25,00 € : 25,00 €
-+
53
P/N (SKU): 0700-024001
Part Name: O-RING
Effective: 2021-02-26
Specification: 19x2
Price: 1,50 € : 1,50 €
-+
54
P/N (SKU): 0800-014420
Part Name: OIL DIPSTICK
Effective: 2021-02-26
Price: 15,00 € : 15,00 €
-+
55
P/N (SKU): 0800-014440
Part Name: OIL DIPSTICK
Effective: 2021-02-26
Alternative parts: 0800-014440-10000
Price: 3,50 € : 3,50 €
