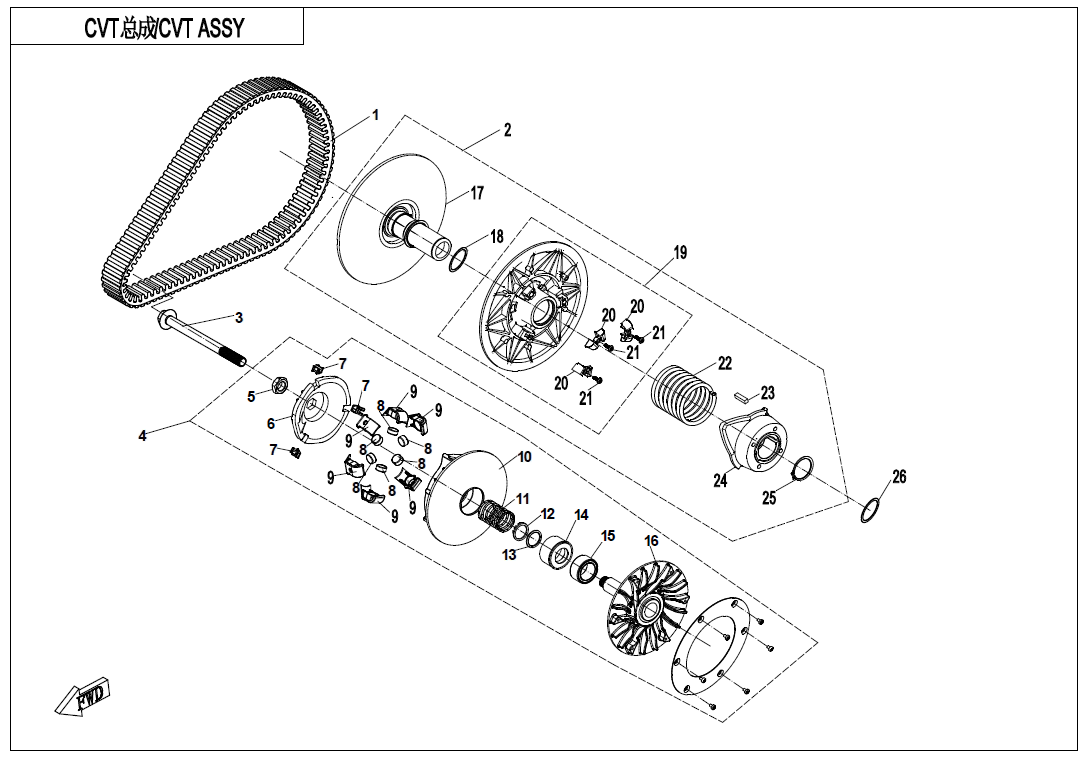

CVT ASSY(SPEED LIMITED) - E05-A-V2

CVT ASSY(SPEED LIMITED) - E05-A-V2

No.

01
P/N (SKU): 0JWA-055000-10000
Part Name: TOOTHED DRIVE BELT
Effective: 2021-02-26
Alternative parts:
Specification: MITSUBOSHI
Price: 202,00 € : 202,00 €
-+
02
P/N (SKU): 0JYA-052000
Part Name: DRIVEN PULLEY ASSY
Effective: 2021-02-26
Alternative parts:
Price: 402,00 € : 402,00 €
-+
03
P/N (SKU): 0JY0-050001-00001
Part Name: DRIVE PULLEY BOLT
Effective: 2021-02-26
Alternative parts:
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 5,50 € : 5,50 €
-+
04
P/N (SKU): 0JWA-051000-00002
Part Name: DRIVE PULLEY ASSY
Effective: 2021-02-26
Alternative parts: 0JWA-051000-00003
Price: 852,00 € : 852,00 €
05
P/N (SKU): 0JYA-051013-10000
Part Name: NUT, DRIVE PULLEY
Effective: 2021-02-26
Alternative parts: 0JYA-051013-10001
Specification: CVtech
Price: 80,00 € : 80,00 €
-+
06
P/N (SKU): 0JYA-051006-10000
Part Name: THRUST COLLAR
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 327,00 € : 327,00 €
-+
07
P/N (SKU): 0JYA-051004-10000
Part Name: THRUST DISC NYLON PARTS
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
08
P/N (SKU): 0GR0-051004-20000
Part Name: WEIGHT ROLLER
Effective: 2021-02-26
Alternative parts:
Specification: 16g
Price: 9,00 € : 9,00 €
-+
09
P/N (SKU): 0GR0-051005
Part Name: NYLON PROTECTOR, WEIGHT ROLLER
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 20,00 € : 20,00 €
-+
10
P/N (SKU): 0JYA-051100
Part Name: MOVING PLATE ASSY, DRIVE PULLEY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 346,00 € : 346,00 €
-+
11
P/N (SKU): 0JY0-051002
Part Name: SPRING,DRIVE PULLEY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 47,00 € : 47,00 €
-+
12
P/N (SKU): 0GR0-051009-10000
Part Name: NYLON WASHER
Effective: 2021-02-26
Alternative parts:
Price: 15,00 € : 15,00 €
-+
13
P/N (SKU): 0GR0-051011
Part Name: STEEL WASHER
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
14
P/N (SKU): 0GR0-051001
Part Name: SPRING SEAT
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 60,00 € : 60,00 €
-+
15
P/N (SKU): 0GR0-051400-10000
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Price: 159,00 € : 159,00 €
-+
16
P/N (SKU): 0JWA-051200
Part Name: DRIVE FIXED PULLEY ASSY
Effective: 2021-02-26
Alternative parts:
Price: 529,00 € : 529,00 €
-+
17
P/N (SKU): 0GR0-052100
Part Name: DRIVEN FIXED PULLEY ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 384,00 € : 384,00 €
-+
18
P/N (SKU): 0JYA-052007
Part Name: NYLON WASHER
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
19
P/N (SKU): 0GR0-0522A0
Part Name: SLIDING FLANGE ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 324,00 € : 324,00 €
-+
20
P/N (SKU): 0GR0-052005
Part Name: NYLON BLOCK
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
21
P/N (SKU): 0GR0-052006
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 4,50 € : 4,50 €
-+
22
P/N (SKU): 0GR0-052001
Part Name: SPRING, DRIVEN PULLEY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 80,00 € : 80,00 €
-+
23
P/N (SKU): 0GR0-052003
Part Name: TAPER KEY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 4,00 € : 4,00 €
-+
24
P/N (SKU): 0GR0-052002
Part Name: CAM PLATE
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 97,00 € : 97,00 €
-+
25
P/N (SKU): 0GR0-052004
Part Name: CIRCLIP
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
26
P/N (SKU): 0GR0-050001-00001
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Alternative parts: 0GR0-050001-00002
Price: 1,50 € : 1,50 €
