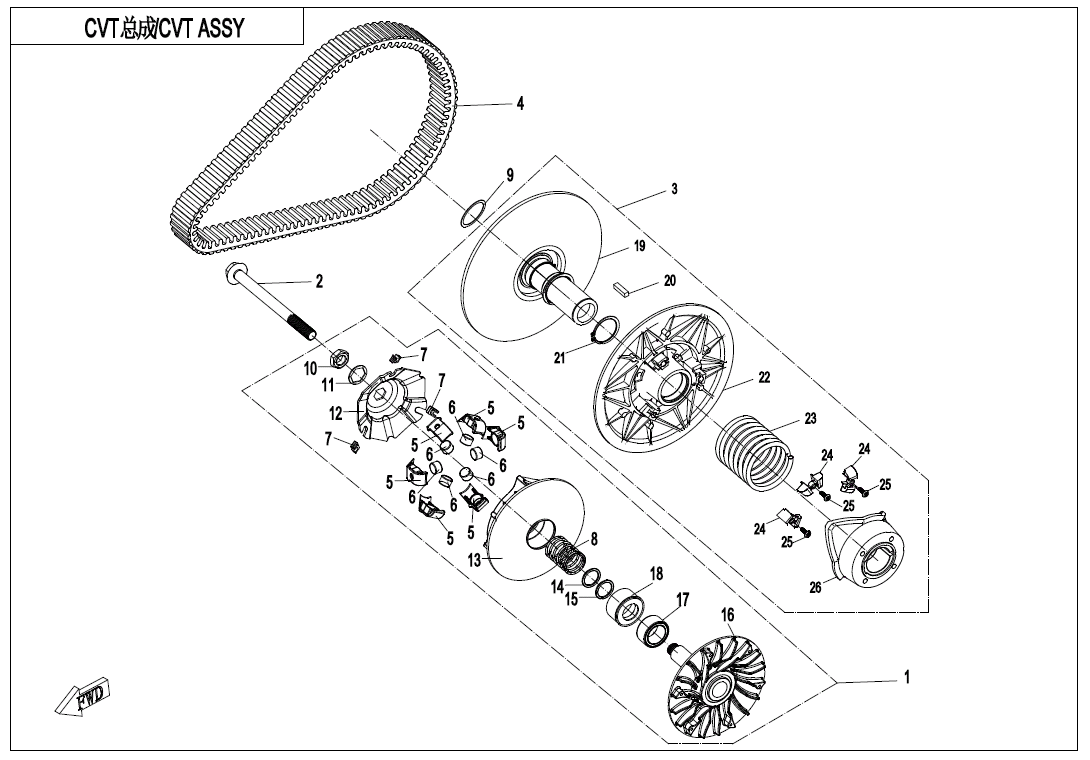

CVT ASSY - E05-V2

CVT ASSY - E05-V2

No.

01
P/N (SKU): 0GRB-051000-10041
Part Name: DRIVE PULLEY ASSY
Effective: 2021-02-26
Alternative parts: 0GRB-051000-20040
Specification: 16g WEIGHT ROLLER
Price: 692,00 € : 692,00 €
02
P/N (SKU): 0JY0-050001-00001
Part Name: DRIVE PULLEY BOLT
Effective: 2021-02-26
Alternative parts:
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 5,50 € : 5,50 €
-+
03
P/N (SKU): 0GR0-052000
Part Name: DRIVEN PULLEY ASSY
Effective: 2021-02-26
Alternative parts:
Price: 402,00 € : 402,00 €
-+
04
P/N (SKU): 0180-055000-0004
Part Name: TOOTHED DRIVE BELT
Effective: 2021-02-26
Alternative parts:
Specification: MITSUBOSHI
Price: 206,00 € : 206,00 €
-+
04
P/N (SKU): 0180-055000-0003
Part Name: TOOTHED DRIVE BELT
Effective: 2021-02-26
Alternative parts:
Specification: BANDO
Price: 221,00 € : 221,00 €
-+
04
P/N (SKU): 0180-055000-0005
Part Name: TOOTHED DRIVE BELT
Effective: 2021-02-26
Alternative parts: 0180-055000-0003
Specification: CARLISLE
Price: 192,00 € : 192,00 €
05
P/N (SKU): 0GR0-051005
Part Name: NYLON PROTECTOR, WEIGHT ROLLER
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 20,00 € : 20,00 €
-+
06
P/N (SKU): 0GR0-051004-20000
Part Name: WEIGHT ROLLER
Effective: 2021-02-26
Alternative parts:
Specification: 16g
Price: 9,00 € : 9,00 €
-+
07
P/N (SKU): 0GR0-051006
Part Name: NYLON SLIDER
Effective: 2021-02-26
Alternative parts:
Price: 19,00 € : 19,00 €
-+
08
P/N (SKU): 0GR0-051003-20000
Part Name: SPRING, DRIVE PULLEY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 36,00 € : 36,00 €
-+
09
P/N (SKU): 0GR0-050001-00001
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Alternative parts: 0GR0-050001-00002
Price: 1,50 € : 1,50 €
10
P/N (SKU): 0GR0-051008-00010
Part Name: NUT, DRIVE PULLEY
Effective: 2021-02-26
Alternative parts:
Specification: LEFT-HAND THREAD
Price: 17,00 € : 17,00 €
-+
11
P/N (SKU): 0GR0-051007
Part Name: HEXAGONAL BORE WASHER
Effective: 2021-02-26
Alternative parts:
Price: 23,00 € : 23,00 €
-+
12
P/N (SKU): 0GR0-051002
Part Name: RAMP PLATE
Effective: 2021-02-26
Alternative parts: 0GR0-051002-00001
Price: 92,00 € : 92,00 €
-+
13
P/N (SKU): 0GR0-051100
Part Name: PRIMARY LOOSE PULLEY ASSY
Effective: 2021-02-26
Alternative parts: 0JYA-051100
Price: 310,00 € : 310,00 €
14
P/N (SKU): 0GR0-051011
Part Name: STEEL WASHER
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
15
P/N (SKU): 0GR0-051009-10000
Part Name: NYLON WASHER
Effective: 2021-02-26
Alternative parts:
Price: 15,00 € : 15,00 €
-+
16
P/N (SKU): 0GR0-051200-20010
Part Name: DRIVE PULLEY FIXED SHEAVE ASSY
Effective: 2021-02-26
Remarks: WITH ANTI-CLOCKWISE NUT
Alternative parts:
Specification: WITH ANTI-CLOCKWISE ROTATION SCREW THREAD
Price: 485,00 € : 485,00 €
-+
17
P/N (SKU): 0GR0-051400-10000
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Price: 159,00 € : 159,00 €
-+
18
P/N (SKU): 0GR0-051001
Part Name: SPRING SEAT
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 60,00 € : 60,00 €
-+
19
P/N (SKU): 0GR0-052100
Part Name: DRIVEN FIXED PULLEY ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 384,00 € : 384,00 €
-+
20
P/N (SKU): 0GR0-052003
Part Name: TAPER KEY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 4,00 € : 4,00 €
-+
21
P/N (SKU): 0GR0-052004
Part Name: CIRCLIP
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
22
P/N (SKU): 0GR0-052200
Part Name: DRIVEN SLIDING PULLEY ASSY
Effective: 2021-02-26
Alternative parts:
Price: 240,00 € : 240,00 €
-+
23
P/N (SKU): 0GR0-052001
Part Name: SPRING, DRIVEN PULLEY
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 80,00 € : 80,00 €
-+
24
P/N (SKU): 0GR0-052005
Part Name: NYLON BLOCK
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
25
P/N (SKU): 0GR0-052006
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 4,50 € : 4,50 €
-+
26
P/N (SKU): 0GR0-052002
Part Name: CAM PLATE
Effective: 2021-02-26
Alternative parts:
Specification: CVtech
Price: 97,00 € : 97,00 €
-+
