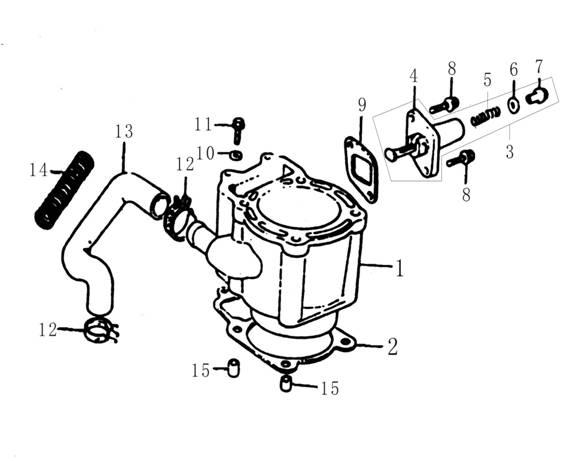

CYLINDER BODY - E02-4

CYLINDER BODY - E02-4

No.

01
P/N (SKU): 0110-023100
Part Name: CYLINDER ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 110,00 € : 110,00 €
-+
02
P/N (SKU): 0110-023002-0B00
Part Name: GASKET, CYLINDER
Effective: 2021-02-26
Alternative parts: null
Specification: BLACK
Price: 0,91 € : 0,91 €
03
P/N (SKU): 0010-0233B0
Part Name: TENSIONER ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 7,15 € : 7,15 €
04
P/N (SKU): 0010-023300
Part Name: TENSIONER ASSY
Effective: 2021-02-26
Alternative parts: 0010-0233B0
Price: 6,05 € : 6,05 €
05
P/N (SKU): 0010-023306
Part Name: SPRING, TENSIONER
Effective: 2021-02-26
Alternative parts: null
Price: 0,91 € : 0,91 €
06
P/N (SKU): 0010-023305
Part Name: WASHER 8.5
Effective: 2021-02-26
Alternative parts: null
Specification: 8.5
Price: 1,50 € : 1,50 €
07
P/N (SKU): 0010-023307-0030
Part Name: BOLT, SPRING SEAT
Effective: 2021-02-26
Alternative parts: 0010-023307-0010
Price: 0,91 € : 0,91 €
08
P/N (SKU): 0010-023008-0010
Part Name: BOLT M6x18
Effective: 2021-02-26
Alternative parts: 0010-023008-00001
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
09
P/N (SKU): 0010-023004-0B00
Part Name: GASKET, TENSIONER
Effective: 2021-02-26
Alternative parts: null
Specification: BLACK
Price: 0,91 € : 0,91 €
10
P/N (SKU): 30300-060122
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: 6
Price: 0,91 € : 0,91 €
11
P/N (SKU): 0010-080013-0030
Part Name: BOLT M6x22
Effective: 2021-02-26
Alternative parts: 0010-080013-0010
Specification: M6x22
Price: 1,50 € : 1,50 €
12
P/N (SKU): 30601-224050
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts: null
Specification: B24
Price: 0,91 € : 0,91 €
13
P/N (SKU): 0110-023007
Part Name: WATER OUTLET PIPE
Effective: 2021-02-26
Alternative parts: null
Price: 4,80 € : 4,80 €
14
P/N (SKU): 0110-023009
Part Name: JACKET, WATER HOSE
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0010-021005
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts: null
Specification: 10x14
Price: 1,50 € : 1,50 €
-+
