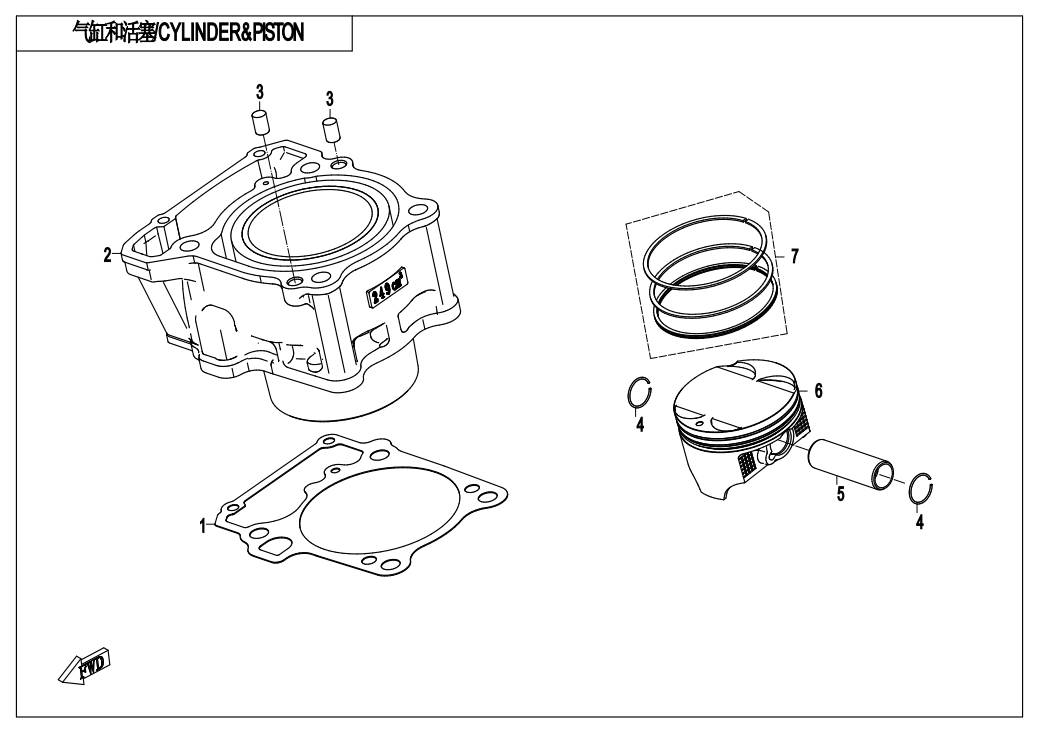

CYLINDER @^ PISTON - E02-3

CYLINDER @^ PISTON - E02-3

No.

01
P/N (SKU): 0DM0-023001
Part Name: CYLINDER SEAL GASKET
Effective: 2021-02-26
Alternative parts: 0DM0-023001-10000
Price: 2,00 € : 2,00 €
02
P/N (SKU): 0DM0-023100-0B210
Part Name: CYLINDER BODY ASSY
Effective: 2021-02-26
Remarks: Use with 0DM0-040007-00010
Alternative parts: 0DM0-023100-0B211
Specification: MATTE BLACK@MARK 1
Price: 87,00 € : 87,00 €
02
P/N (SKU): 0DM0-023100-0B220
Part Name: CYLINDER BODY ASSY
Effective: 2021-02-26
Remarks: Use with 0DM0-040007-00020
Alternative parts: 0DM0-023100-0B221
Specification: MATTE BLACK@MARK 2
Price: 87,00 € : 87,00 €
03
P/N (SKU): 30410-00800
Part Name: ROLLER
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0110-040006-0050
Part Name: CIRCLIP, PISTON PIN
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 0DM0-040008
Part Name: PISTON PIN
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
06
P/N (SKU): 0DM0-040007-00010
Part Name: PISTON (I)
Effective: 2021-02-26
Remarks: Use with 0DM0-023100-0B210
Alternative parts: 0DM0-040007-00011
Price: 31,00 € : 31,00 €
06
P/N (SKU): 0DM0-040007-00020
Part Name: PISTON (II)
Effective: 2021-02-26
Remarks: Use with 0DM0-023100-0B220
Alternative parts: 0DM0-040007-00021
Price: 31,00 € : 31,00 €
07
P/N (SKU): 0DM0-040100
Part Name: PISTON RING ASSY
Effective: 2021-02-26
Alternative parts:
Price: 20,00 € : 20,00 €
-+
