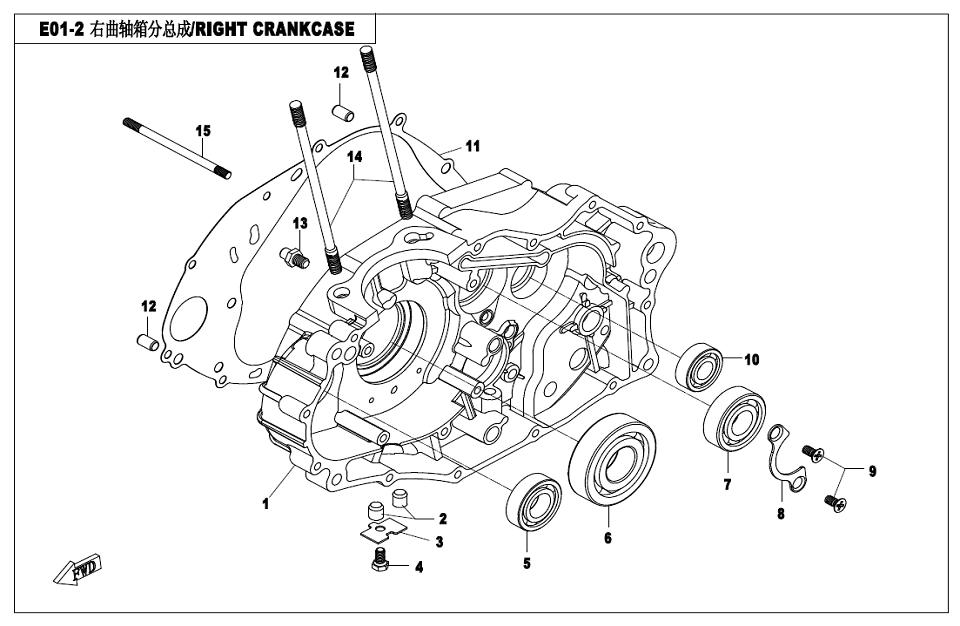

RIGHT CRANKCASE ASSY - E01-2

RIGHT CRANKCASE ASSY - E01-2

No.

01
P/N (SKU): 0A80-012100-0B20
Part Name: RH CRANKCASE ASSY
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 100,10 € : 100,10 €
-+
02
P/N (SKU): 0A70-012007
Part Name: PLUG
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
03
P/N (SKU): 0A70-012006
Part Name: PRESS PLATE, OIL PASSAGE
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 30004-060012820
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts:
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 30400-02008
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 20×42×12
Price: 18,00 € : 18,00 €
-+
06
P/N (SKU): 30400-02801
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 28x52x12
Price: 19,10 € : 19,10 €
-+
07
P/N (SKU): 30400-02000
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 20×47×14
Price: 4,40 € : 4,40 €
-+
08
P/N (SKU): 0A70-012002
Part Name: PRESS TOOL. BEARING
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 30107-060012410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M6×12
Price: 0,95 € : 0,95 €
-+
10
P/N (SKU): 30400-01503
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 15×35×11
Price: 3,30 € : 3,30 €
-+
11
P/N (SKU): 0A80-012005
Part Name: GASKET, RH SIDE COVER
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
12
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts:
Specification: 8X14
Price: 1,05 € : 1,05 €
-+
13
P/N (SKU): 0A70-012001-00001
Part Name: LIMIT BOLT
Effective: 2021-02-26
Alternative parts: 0A70-012001-00003
Price: 0,95 € : 0,95 €
14
P/N (SKU): 0A70-012004-00001
Part Name: CYLINDER STUD M8x175
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
15
P/N (SKU): 0A70-012003-00001
Part Name: STUD M6x99
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
