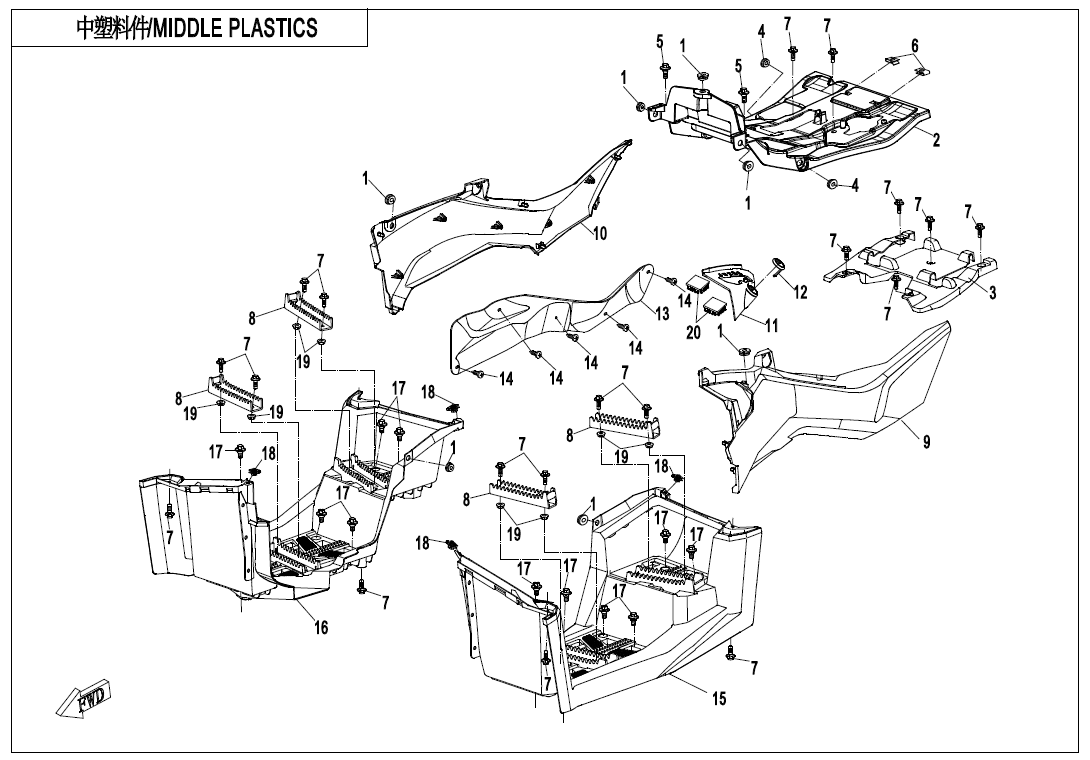

MIDDLE PLASTICS-CRYSTAL ORANGE - F04-3-C-V1 | 2019, ATV,

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 5BY0-040010

Part Name: RUBBER SLEEVE

Alternative parts:

Price: 2,00 € : 2,00 €

02

P/N (SKU): 9AWA-042011

Part Name: HEAT INSULATION, SEAT

Alternative parts:

Price: 35,00 € : 35,00 €

03

P/N (SKU): 9AWA-042012-10000

Part Name: REAR SEAT BASE

Alternative parts:

Price: 24,00 € : 24,00 €

03

P/N (SKU): 9AWA-042012-20000

Part Name: REAR SEAT BASE

Alternative parts:

Price: 27,00 € : 27,00 €

04

P/N (SKU): 7020-040209

Part Name: FIXING RUBBER BUSHING

Alternative parts:

Price: 3,50 € : 3,50 €

05

P/N (SKU): 8010-000005

Part Name: BOLT M6x17

Alternative parts: 8010-000005-1000

Specification: M6x17

Price: 1,50 € : 1,50 €

06

P/N (SKU): 8010-000002

Part Name: CLAMP ST4.2

Alternative parts:

Specification: ST4.2

Price: 1,50 € : 1,50 €

07

P/N (SKU): 30006-060016810

Part Name: BOLT

Alternative parts:

Specification: M6x16

Price: 1,50 € : 1,50 €

08

P/N (SKU): 9CR6-042040-20000

Part Name: ANTIBASE ASSY

Alternative parts:

Price: 18,00 € : 18,00 €

09

P/N (SKU): 9AWA-042021-0Y600

Part Name: SIDE COVER, LH

Alternative parts: 9AWA-042021-1Y600

Specification: CRYSTAL ORANGE

Price: 48,00 € : 48,00 €

10

P/N (SKU): 9AWA-042022-0Y600

Part Name: SIDE COVER, RH

Alternative parts:

Specification: CRYSTAL ORANGE

Price: 44,00 € : 44,00 €

11

P/N (SKU): 9AWA-042023-0Y600

Part Name: DECO COVER, GEARSHIFT

Alternative parts: 9AWA-042023-2Y600

Specification: CRYSTAL ORANGE

Price: 19,00 € : 19,00 €

12

P/N (SKU): 9AWA-042026

Part Name: CAP, LOCK

Alternative parts:

Price: 1,50 € : 1,50 €

13

P/N (SKU): 9AWA-042027

Part Name: HEAT INSULATOR,RH SIDE COVER

Alternative parts:

Price: 27,00 € : 27,00 €

14

P/N (SKU): 30110-420160010

Part Name: SELF-TAPPING SCREW

Alternative parts:

Specification: ST4.2x16

Price: 1,50 € : 1,50 €

15

P/N (SKU): 9AWA-042031

Part Name: FOOTREST PEDAL, LH

Alternative parts:

Price: 78,00 € : 78,00 €

16

P/N (SKU): 9AWA-042032

Part Name: FOOTREST PEDAL, RH

Alternative parts:

Price: 78,00 € : 78,00 €

17

P/N (SKU): 8010-000004

Part Name: BOLT M6x14

Alternative parts:

Specification: M6x14

Price: 1,50 € : 1,50 €

18

P/N (SKU): 8030-040800

Part Name: NUT CLIP M6

Alternative parts: 8030-040800-00001

Specification: M6

Price: 1,50 € : 1,50 €

19

P/N (SKU): 30204-060810

Part Name: NUT

Alternative parts:

Specification: M6

Price: 1,50 € : 1,50 €

20

P/N (SKU): 6NT1-041510

Part Name: BUCKLE ASSY

Alternative parts:

Price: 2,50 € : 2,50 €
