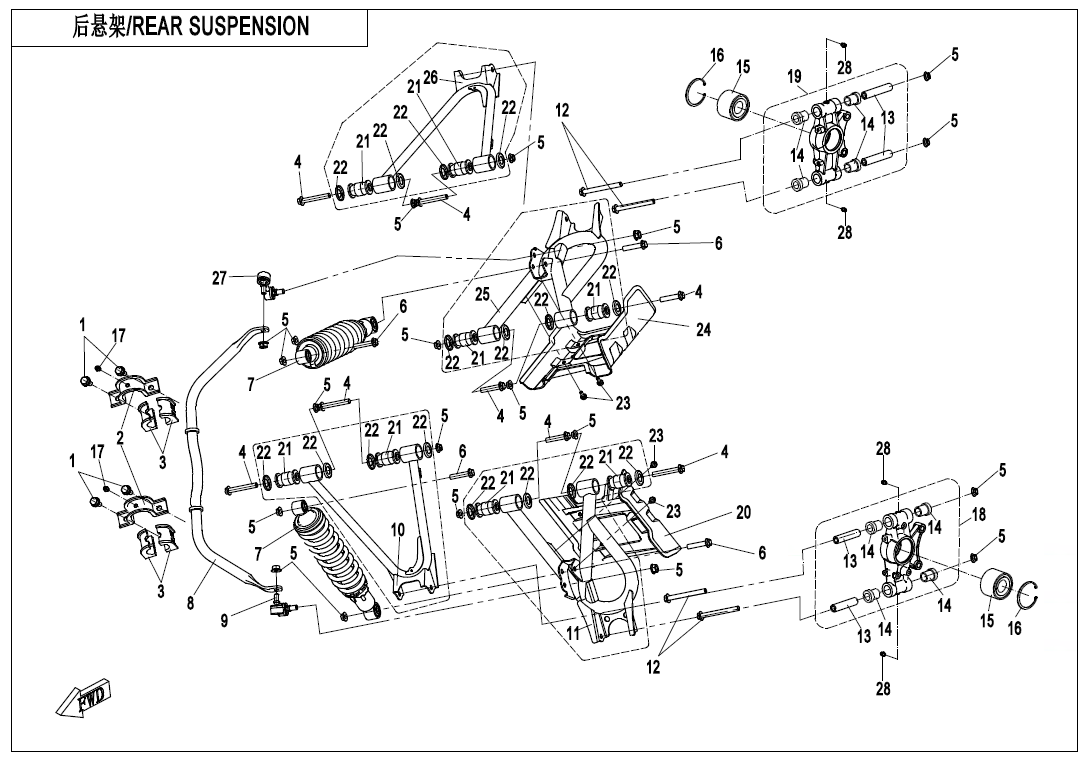

REAR SUSPENSION - F06-V2

REAR SUSPENSION - F06-V2

No.

01
P/N (SKU): 30006-080012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×12
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 9GQ0-060601-00001
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 9GQ0-060003
Part Name: SUPPORTER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
04
P/N (SKU): 30006-102070810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×70
Price: 0,95 € : 0,95 €
-+
05
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 30006-102050810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×50
Price: 0,95 € : 0,95 €
-+
07
P/N (SKU): 9010-060600-7000
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts: 9010-060600-1000
Specification: TuoPu@ORDINARY
Price: 69,00 € : 69,00 €
07
P/N (SKU): 9010-060600-10001
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: YiT@RED SPRING
Price: 147,50 € : 147,50 €
-+
07
P/N (SKU): 9010-060600
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: YiT
Price: 62,60 € : 62,60 €
-+
08
P/N (SKU): 9010-060500
Part Name: SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 61,00 € : 61,00 €
-+
09
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
09
P/N (SKU): 9010-060700-20000
Part Name: BALL PIN, LH
Effective: 2021-02-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
10
P/N (SKU): 9010-060300-10000
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9010-060300-20000
Price: 23,80 € : 23,80 €
10
P/N (SKU): 9010-060300-20000
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 26,80 € : 26,80 €
-+
11
P/N (SKU): 9010-060400-2B000
Part Name: REAR LOWER SWING ARM, LH
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 57,50 € : 57,50 €
-+
12
P/N (SKU): 30006-102100810
Part Name: BOLT M10x1.25x100
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x100
Price: 1,25 € : 1,25 €
-+
13
P/N (SKU): 7020-060702
Part Name: REAR WHEEL SHAFT CARRIER MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 7020-060702-00001
Price: 5,60 € : 5,60 €
13
P/N (SKU): 7020-060702-00001
Part Name: REAR WHEEL SHAFT BRACKET MIDDLE BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 2,60 € : 2,60 €
-+
14
P/N (SKU): 9060-050003
Part Name: SHORT BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 5,10 € : 5,10 €
-+
15
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 31,30 € : 31,30 €
15
P/N (SKU): 9GQ0-050710
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts:
Price: 31,30 € : 31,30 €
-+
16
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE
Effective: 2021-02-26
Alternative parts:
Specification: BLACK
Price: 2,05 € : 2,05 €
-+
17
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
18
P/N (SKU): 7020-0607A0
Part Name: LH REAR BEARING CARRIER ASSY,
Effective: 2021-02-26
Alternative parts:
Price: 82,10 € : 82,10 €
-+
19
P/N (SKU): 7020-0608A0
Part Name: REAR RH BEARING SEAT ASSY
Effective: 2021-02-26
Alternative parts:
Price: 73,60 € : 73,60 €
-+
20
P/N (SKU): 901B-040021-10000
Part Name: LH FENDER, REAR SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 11,80 € : 11,80 €
-+
21
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
22
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2021-02-26
Alternative parts: 9DSV-050900-6K00
Price: 1,65 € : 1,65 €
-+
23
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 901B-040022-10000
Part Name: REAR SUSPENSION FENDER, RH
Effective: 2021-02-26
Alternative parts:
Price: 11,80 € : 11,80 €
-+
25
P/N (SKU): 9010-060200-2B000
Part Name: REAR LOWER SWING ARM, RH
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 57,10 € : 57,10 €
-+
26
P/N (SKU): 9010-060100-10000
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9010-060100-20000
Price: 32,60 € : 32,60 €
26
P/N (SKU): 9010-060100-20000
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 26,40 € : 26,40 €
-+
27
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
27
P/N (SKU): 9010-060800-20000
Part Name: BALL PIN, RH
Effective: 2021-02-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
28
P/N (SKU): 3121400
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Specification: 90 DEGREE
Price: 0,95 € : 0,95 €
-+
