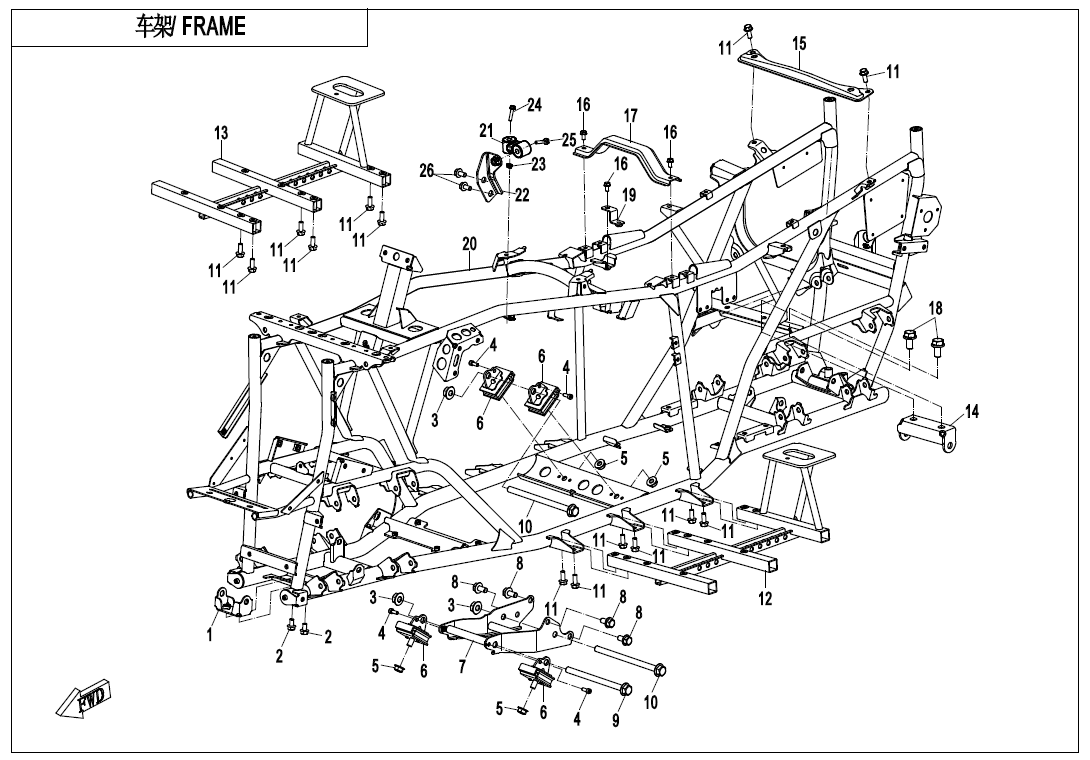

FRAME - F03-V1

FRAME - F03-V1

No.

01
P/N (SKU): 9010-037400
Part Name: BRACKET, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 9,20 € : 9,20 €
-+
02
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×14
Price: 1,00 € : 1,00 €
-+
03
P/N (SKU): 30204-122810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M12×1.25
Price: 1,00 € : 1,00 €
-+
04
P/N (SKU): 30102-060016810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,00 € : 1,00 €
-+
05
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25
Price: 1,00 € : 1,00 €
-+
06
P/N (SKU): 401B-000200-10000
Part Name: DAMPER
Effective: 2021-02-26
Alternative parts:
Price: 13,64 € : 13,64 €
-+
07
P/N (SKU): 9CR6-001100-20000
Part Name: FRONT BRACKET, ENGINE
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 25,50 € : 25,50 €
-+
08
P/N (SKU): 30006-100020810
Part Name: BOLT M10x20
Effective: 2021-02-26
Alternative parts: 30006-102020810
Specification: M10x20
Price: 1,80 € : 1,80 €
09
P/N (SKU): 30006-122170810
Part Name: BOLT M12x1.25x170
Effective: 2021-02-26
Alternative parts:
Specification: M12x1.25x170
Price: 3,50 € : 3,50 €
-+
10
P/N (SKU): 30006-122180810
Part Name: BOLT M12x1.25x180
Effective: 2021-02-26
Alternative parts:
Specification: M12x1.25x180
Price: 4,00 € : 4,00 €
-+
11
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×20
Price: 1,00 € : 1,00 €
-+
12
P/N (SKU): 9CR6-039100-10000
Part Name: BRACKET, LH FOOT PEDAL
Effective: 2021-02-26
Alternative parts:
Price: 42,80 € : 42,80 €
-+
13
P/N (SKU): 9CR6-039200-10000
Part Name: RH FOOT PEDAL BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 42,80 € : 42,80 €
-+
14
P/N (SKU): 9CR6-030120
Part Name: SUSPENSION BRACKET ASSY, REAR GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 2,40 € : 2,40 €
-+
15
P/N (SKU): 9010-030070
Part Name: SEAT BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 11,70 € : 11,70 €
-+
16
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,00 € : 1,00 €
17
P/N (SKU): 901A-030007
Part Name: TOP HOLDER ASSY, SEAT
Effective: 2021-02-26
Alternative parts:
Price: 6,80 € : 6,80 €
-+
18
P/N (SKU): 30006-102016810
Part Name: BOLT M10x1.25x16
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x16
Price: 1,80 € : 1,80 €
-+
19
P/N (SKU): 9DR8-035070
Part Name: AIR FILTER CONNECTING ASSY
Effective: 2021-02-26
Alternative parts: 9DR8-035070-10000
Specification: ELECTROPHORESIS BLACK
Price: 3,70 € : 3,70 €
19
P/N (SKU): 9DR8-035070-10000
Part Name: AIR FILTER CONNECTING ASSY
Effective: 2021-02-26
Alternative parts: 9DR8-035070-20000
Price: 7,20 € : 7,20 €
19
P/N (SKU): 9DR8-035070-20000
Part Name: AIR FILTER CONNECTING ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 7,20 € : 7,20 €
-+
20
P/N (SKU): 9CR6-031000-90000
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 9CR6-031000-A0000
Price: 907,40 € : 907,40 €
21
P/N (SKU): 7020-000160
Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 10,95 € : 10,95 €
-+
22
P/N (SKU): 9CR6-030140
Part Name: UPPER BRACKET ASSY, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
23
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,00 € : 1,00 €
-+
24
P/N (SKU): 30006-080040810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×40
Price: 1,80 € : 1,80 €
-+
25
P/N (SKU): 30006-080035810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×35
Price: 1,00 € : 1,00 €
-+
26
P/N (SKU): 30006-103020810
Part Name: BOLT M10x20
Effective: 2021-02-26
Alternative parts:
Specification: M10x20
Price: 1,80 € : 1,80 €
-+
