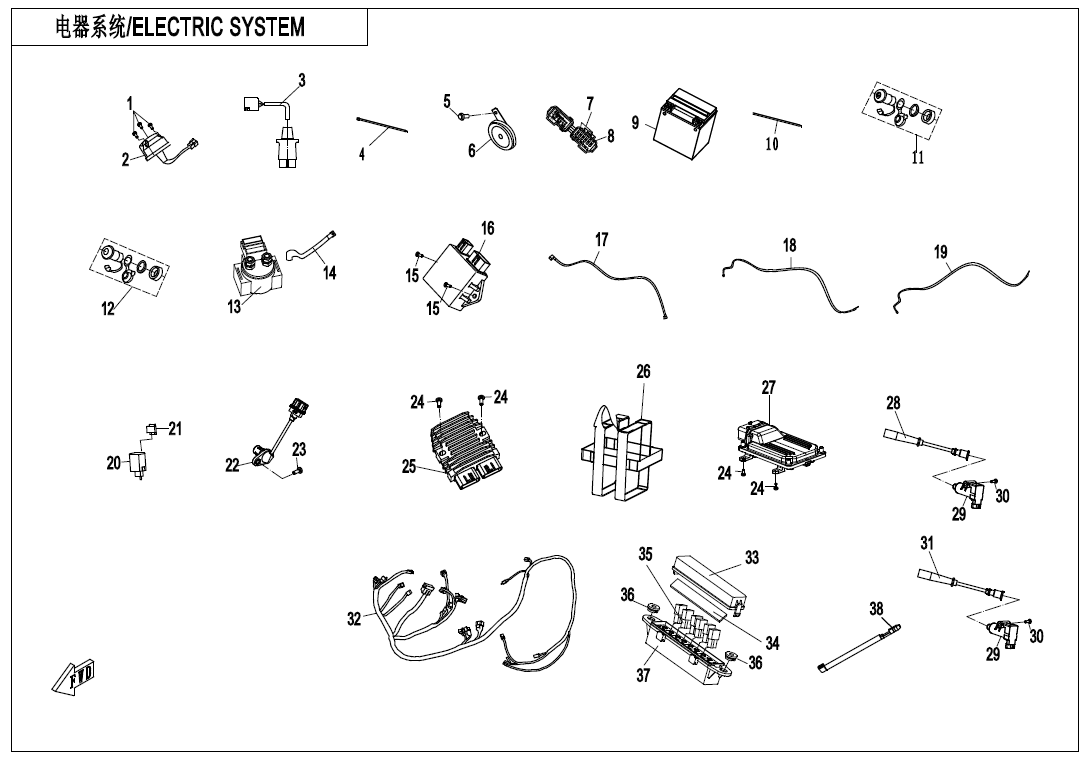

ELECTRIC SYSTEM - F15-1-V3

ELECTRIC SYSTEM - F15-1-V3

No.

01
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M5x30@COLOR ZINC TRIVALENT CHROMIUM
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 7020-150800-1000
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 20,20 € : 20,20 €
-+
02
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 12,10 € : 12,10 €
-+
03
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 13,20 € : 13,20 €
-+
04
P/N (SKU): 9010-150004
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×16
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
07
P/N (SKU): 806A-151303
Part Name: FUSE
Effective: 2021-02-26
Alternative parts: 806A-151305
Specification: 15A
Price: 3,70 € : 3,70 €
08
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts:
Specification: DYNAVOLT,12V30Ah
Price: 266,90 € : 266,90 €
-+
09
P/N (SKU): 31023002
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: YUASA, 12V30Ah
Price: 553,00 € : 553,00 €
09
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 155,00 € : 155,00 €
10
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
11
P/N (SKU): 9AWA-150600
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 20,50 € : 20,50 €
-+
11
P/N (SKU): 9GQ0-150600
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2021-02-26
Alternative parts: 9GQ0-150600-10000
Price: 14,30 € : 14,30 €
-+
12
P/N (SKU): 5HY0-150500-10000
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 19,10 € : 19,10 €
-+
12
P/N (SKU): 9GQ0-150500
Part Name: OUTPUT SEAT, POWER
Effective: 2021-02-26
Alternative parts: 9GQ0-150500-10000
Price: 10,65 € : 10,65 €
-+
13
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 24,40 € : 24,40 €
-+
14
P/N (SKU): 9AWA-150220
Part Name: CABLE,STARTING MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 24,90 € : 24,90 €
-+
15
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060020870
Specification: M6×20
Price: 0,55 € : 0,55 €
16
P/N (SKU): 9AWA-150880
Part Name: DRL CONTROLLER
Effective: 2021-02-26
Alternative parts:
Price: 28,20 € : 28,20 €
-+
17
P/N (SKU): 9AWA-150210-10000
Part Name: BATTERY POSITIVE WIRE
Effective: 2021-02-26
Alternative parts: 9AWA-150210-20000
Price: 10,65 € : 10,65 €
18
P/N (SKU): 9AWA-150230
Part Name: BATTERY NEGATIVE WIRE
Effective: 2021-02-26
Alternative parts:
Price: 19,10 € : 19,10 €
-+
19
P/N (SKU): 9AWA-150240-10000
Part Name: NEGATIVE CABLE, STARTER MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 18,30 € : 18,30 €
-+
20
P/N (SKU): 9AWA-150340-10000
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 8,80 € : 8,80 €
-+
21
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 7020-150400
Part Name: SPEED SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 32,50 € : 32,50 €
-+
23
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×30
Price: 0,55 € : 0,55 €
-+
25
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: HIGH POWER, CHINESE
Price: 161,70 € : 161,70 €
-+
25
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: 330W
Price: 102,20 € : 102,20 €
-+
26
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2021-02-26
Alternative parts:
Price: 2,95 € : 2,95 €
-+
27
P/N (SKU): 0JYA-174000-20000
Part Name: ECU
Effective: 2021-02-26
Alternative parts:
Specification: NA
Price: 324,90 € : 324,90 €
-+
27
P/N (SKU): 0JYA-174000
Part Name: ECU
Effective: 2021-02-26
Alternative parts:
Specification: 168
Price: 302,00 € : 302,00 €
-+
28
P/N (SKU): 0JYA-179000
Part Name: HIGH-TENSION CABLE
Effective: 2021-02-26
Alternative parts: 0JYA-179000-10000
Price: 16,20 € : 16,20 €
-+
29
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 35,60 € : 35,60 €
-+
30
P/N (SKU): 0010-080013-0010
Part Name: BOLT M6x22
Effective: 2021-02-26
Alternative parts:
Specification: M6x22
Price: 0,55 € : 0,55 €
-+
31
P/N (SKU): 0JY0-179100
Part Name: HIGH-TENSION CABLE
Effective: 2021-02-26
Alternative parts: 0JY0-179100-10000
Price: 15,10 € : 15,10 €
-+
32
P/N (SKU): 9AY0-150100-60000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts:
Price: 388,60 € : 388,60 €
-+
32
P/N (SKU): 9AY0-150100-70000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 486,80 € : 486,80 €
-+
33
P/N (SKU): 7020-040412-10000
Part Name: COVER,RELAY BOX
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
34
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER, RELAY BOX COVER
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
35
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 6,65 € : 6,65 €
-+
36
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
37
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Effective: 2021-02-26
Alternative parts:
Price: 7,15 € : 7,15 €
-+
38
P/N (SKU): 0JWA-012202-10000
Part Name: OIL PRESSURE SWITCH ADAPTOR CABLE
Effective: 2021-02-26
Alternative parts:
Price: 10,65 € : 10,65 €
-+
