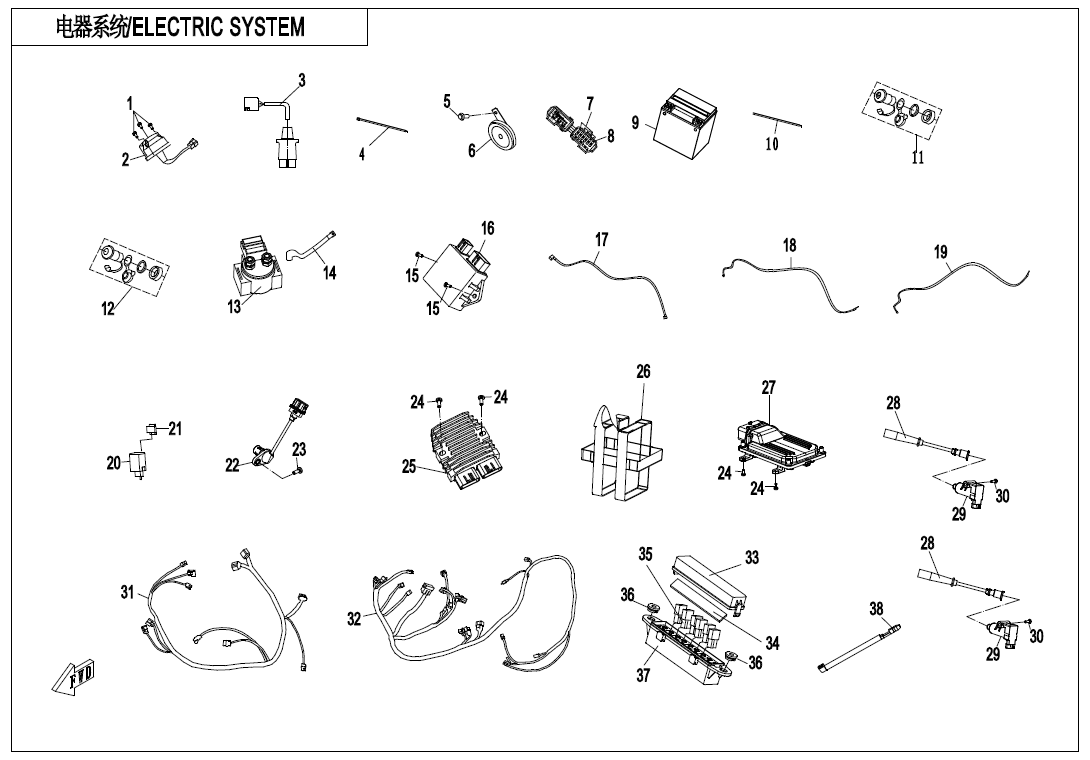

ELECTRIC SYSTEM - F15-1-V1

ELECTRIC SYSTEM - F15-1-V1

No.

01
P/N (SKU): 30105-050030410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2021-02-26
Specification: M5x30
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 7020-150800-1000
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Specification: SUMITOMO PLUG
Price: 21,00 € : 21,00 €
-+
02
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
03
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Price: 16,00 € : 16,00 €
-+
04
P/N (SKU): 9010-150004
Part Name: TIE BAND
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 30006-080016840
Part Name: BOLT M8x16
Effective: 2021-02-26
Alternative parts: 30006-080016810
Specification: MILITARY GREEN
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts: EG4V-150600-1000
Price: 11,00 € : 11,00 €
-+
07
P/N (SKU): 806A-151303
Part Name: FUSE
Effective: 2021-02-26
Alternative parts: 806A-151305
Specification: 15A
Price: 4,00 € : 4,00 €
08
P/N (SKU): 806A-151302
Part Name: 10A FUSE
Effective: 2021-02-26
Specification: 10A
Price: 2,50 € : 2,50 €
-+
09
P/N (SKU): 31023002
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004+5DYV-043055-3000
Specification: YUASA, 12V30Ah
Price: 563,00 € : 563,00 €
09
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 158,00 € : 158,00 €
09
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2021-02-26
Specification: DYNAVOLT,12V 32Ah
Price: 272,00 € : 272,00 €
-+
10
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9AWA-150600
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2021-02-26
Specification: SUMITOMO PLUG
Price: 21,00 € : 21,00 €
-+
11
P/N (SKU): 9GQ0-150600
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2021-02-26
Alternative parts: 9GQ0-150600-10000
Price: 17,00 € : 17,00 €
-+
12
P/N (SKU): 5HY0-150500-10000
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Specification: SUMITOMO PLUG
Price: 20,00 € : 20,00 €
-+
12
P/N (SKU): 9GQ0-150500
Part Name: OUTPUT SEAT, POWER
Effective: 2021-02-26
Alternative parts: 9GQ0-150500-10000
Price: 14,00 € : 14,00 €
-+
13
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2021-02-26
Price: 25,00 € : 25,00 €
-+
14
P/N (SKU): 9AWA-150220
Part Name: CABLE,STARTING MOTOR
Effective: 2021-02-26
Price: 26,00 € : 26,00 €
-+
15
P/N (SKU): 30006-060020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
16
P/N (SKU): 9AWA-150880
Part Name: DRL CONTROLLER
Effective: 2021-02-26
Price: 29,00 € : 29,00 €
-+
17
P/N (SKU): 9AWA-150210
Part Name: BATTERY POSITIVE WIRE
Effective: 2021-02-26
Alternative parts: 9AWA-150210-10000
Price: 21,00 € : 21,00 €
18
P/N (SKU): 9AWA-150230
Part Name: BATTERY NEGATIVE WIRE
Effective: 2021-02-26
Price: 20,00 € : 20,00 €
-+
19
P/N (SKU): 9AWA-150240
Part Name: NEGATIVE CABLE, STARTER MOTOR
Effective: 2021-02-26
Price: 21,00 € : 21,00 €
-+
20
P/N (SKU): 9AWA-150340-10000
Part Name: FLASHER
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
21
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 7020-150400
Part Name: SPEED SENSOR
Effective: 2021-02-26
Price: 34,00 € : 34,00 €
-+
23
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
24
P/N (SKU): 30006-060030810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Effective: 2021-02-26
Specification: HIGH POWER, CHINESE
Price: 165,00 € : 165,00 €
-+
25
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Specification: 330W
Price: 104,00 € : 104,00 €
-+
26
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2021-02-26
Price: 4,00 € : 4,00 €
-+
27
P/N (SKU): 0JYA-174000-20000
Part Name: ECU ASSY
Effective: 2021-02-26
Specification: NA@US6.0
Price: 331,00 € : 331,00 €
-+
27
P/N (SKU): 0JYA-174000
Part Name: ECU ASSY
Effective: 2021-02-26
Specification: 168@US6.0
Price: 307,00 € : 307,00 €
-+
28
P/N (SKU): 0JYA-179000
Part Name: HIGH-TENSION CABLE
Effective: 2021-02-26
Alternative parts: 0JYA-179000-10000
Price: 17,00 € : 17,00 €
-+
29
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Price: 41,00 € : 41,00 €
-+
30
P/N (SKU): 0010-080013-0010
Part Name: BOLT M6x22
Effective: 2021-02-26
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 9AY0-150200-20000
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Specification: SUMITOMO PLUG
Price: 132,00 € : 132,00 €
-+
31
P/N (SKU): 9AY0-150200-30000
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Specification: SUMITOMO PLUG
Price: 165,00 € : 165,00 €
-+
32
P/N (SKU): 9AY0-150100-20000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: 9AY0-150100-40000
Price: 256,00 € : 256,00 €
32
P/N (SKU): 9AY0-150100-30000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: 9AY0-150100-50000
Specification: SUMITOMO PLUG
Price: 405,00 € : 405,00 €
32
P/N (SKU): 9AY0-150100-40000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: 9AY0-150100-60000
Price: 258,00 € : 258,00 €
32
P/N (SKU): 9AY0-150100-50000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: 9AY0-150100-70000
Specification: SUMITOMO PLUG
Price: 407,00 € : 407,00 €
33
P/N (SKU): 7020-040412-10000
Part Name: COVER,RELAY BOX
Effective: 2021-02-26
Price: 5,00 € : 5,00 €
-+
34
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER, RELAY BOX COVER
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
35
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Price: 7,00 € : 7,00 €
-+
36
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Effective: 2021-02-26
Price: 7,50 € : 7,50 €
-+
38
P/N (SKU): 0JWA-012202-10000
Part Name: OIL PRESSURE SWITCH ADAPTOR CABLE
Effective: 2021-02-26
Price: 13,00 € : 13,00 €
-+
