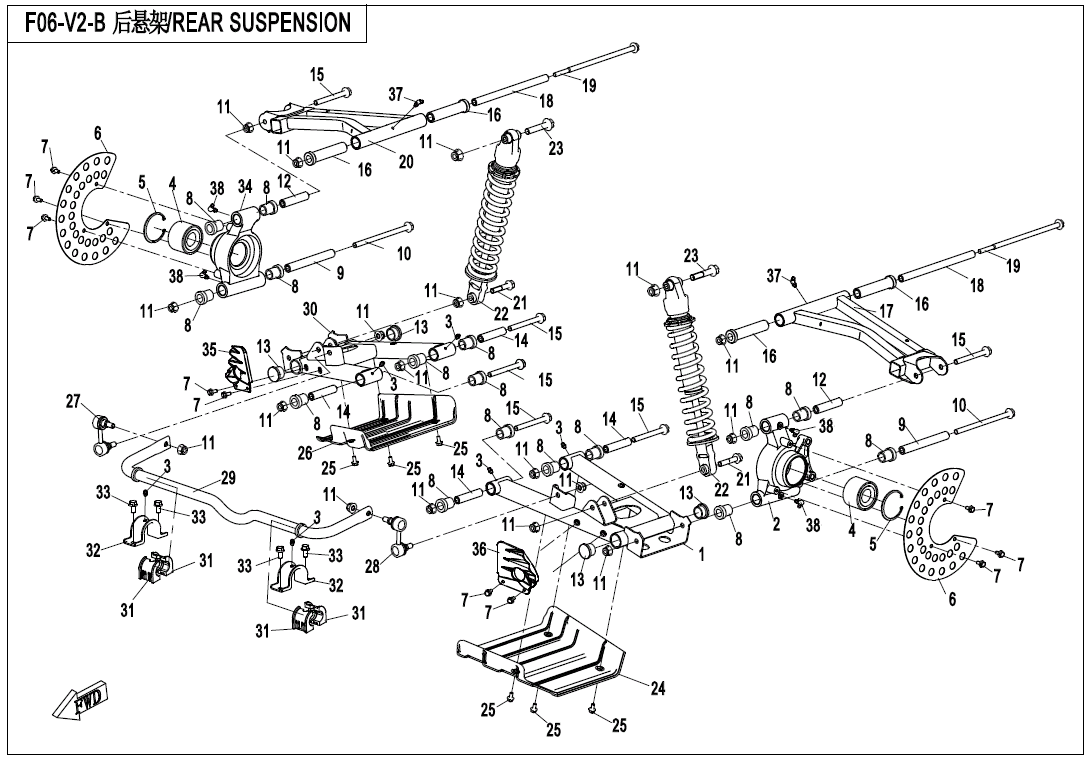

REAR SUSPENSION(2018 VERSION) - F06-V2-B

REAR SUSPENSION(2018 VERSION) - F06-V2-B

No.

01
P/N (SKU): 703A-060210
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 56,44 € : 56,44 €
-+
02
P/N (SKU): 5UWB-060701
Part Name: REAR LH WHEEL SHAFT SUPPORT
Effective: 2021-02-26
Alternative parts:
Price: 98,90 € : 98,90 €
-+
03
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
04
P/N (SKU): 30499-03081
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts:
Specification: DAC3063W
Price: 36,60 € : 36,60 €
-+
05
P/N (SKU): 30800-06300
Part Name: CIRCLIP FOR HOLE
Effective: 2021-02-26
Alternative parts:
Specification: 63
Price: 1,00 € : 1,00 €
-+
06
P/N (SKU): 5BWB-060003
Part Name: REAR BRAKE DISC GUARD
Effective: 2021-02-26
Alternative parts:
Price: 6,10 € : 6,10 €
-+
07
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,00 € : 1,00 €
08
P/N (SKU): 9060-050003
Part Name: SHORT BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 5,10 € : 5,10 €
-+
09
P/N (SKU): 9060-060702-10001
Part Name: REAR WHEEL SHAFT CARRIER LOWER MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 9060-060702-10002
Price: 5,50 € : 5,50 €
10
P/N (SKU): 9060-060704
Part Name: REAR WHEEL SHAFT BRACKET LOWER MOUNTING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 2,80 € : 2,80 €
-+
11
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25
Price: 1,00 € : 1,00 €
-+
12
P/N (SKU): 9060-060701-10001
Part Name: REAR WHEEL SHAFT CARRIER UPPER MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 9060-060701-10002
Price: 3,00 € : 3,00 €
13
P/N (SKU): 9060-060002
Part Name: REAR SUSPENSION PLUG
Effective: 2021-02-26
Alternative parts:
Price: 1,70 € : 1,70 €
-+
14
P/N (SKU): 9060-060201-00001
Part Name: REAR LOWER SWING ARM MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 9060-060201-00002
Price: 2,40 € : 2,40 €
15
P/N (SKU): 30001-102095110
Part Name: BOLT M10x1.25x95
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x95
Price: 2,30 € : 2,30 €
-+
16
P/N (SKU): 9060-050002
Part Name: LONG BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 9,70 € : 9,70 €
-+
17
P/N (SKU): 703A-060110-00001
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 703V-060110-2500
Specification: ELECTROPHORESIS BLACK
Price: 29,30 € : 29,30 €
18
P/N (SKU): 9060-060101-00001
Part Name: REAR UPPER SWING ARM MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 9060-060101-00002
Price: 4,50 € : 4,50 €
19
P/N (SKU): 4060-060101
Part Name: REAR SWING ARM MOUNTING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 4,70 € : 4,70 €
-+
20
P/N (SKU): 703A-060310-00001
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 703V-060310-2500
Specification: ELECTROPHORESIS BLACK
Price: 38,32 € : 38,32 €
21
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×55
Price: 1,60 € : 1,60 €
-+
22
P/N (SKU): 703A-060500
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: YITONG
Price: 122,00 € : 122,00 €
-+
23
P/N (SKU): 30006-102060810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×60
Price: 1,80 € : 1,80 €
-+
24
P/N (SKU): 7030-040741
Part Name: GUARD, LH REAR SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 7,70 € : 7,70 €
-+
25
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,00 € : 1,00 €
-+
26
P/N (SKU): 7030-040751
Part Name: REAR SWING ARM GUARD, RH
Effective: 2021-02-26
Alternative parts:
Price: 7,70 € : 7,70 €
-+
27
P/N (SKU): 9010-060800-20000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
27
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
28
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 75,06 € : 75,06 €
28
P/N (SKU): 9010-060700-20000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
29
P/N (SKU): 7030-060610
Part Name: REAR SWAY BAR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 39,60 € : 39,60 €
-+
30
P/N (SKU): 703A-060410
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 71,40 € : 71,40 €
-+
31
P/N (SKU): 7000-060003
Part Name: SWAY BAR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 3,40 € : 3,40 €
-+
32
P/N (SKU): 9030-060002
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 4,60 € : 4,60 €
-+
33
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
34
P/N (SKU): 5UWB-060801
Part Name: HOLDER, REAR RH WHEEL SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 98,90 € : 98,90 €
-+
35
P/N (SKU): 703A-060401
Part Name: FENDER, REAR RH SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
36
P/N (SKU): 703A-060201
Part Name: REAR LH SUSPENSION FENDER
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
37
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Specification: 45 DEGREE
Price: 1,00 € : 1,00 €
-+
38
P/N (SKU): 3121400
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Specification: 90 DEGREE
Price: 1,80 € : 1,80 €
-+
