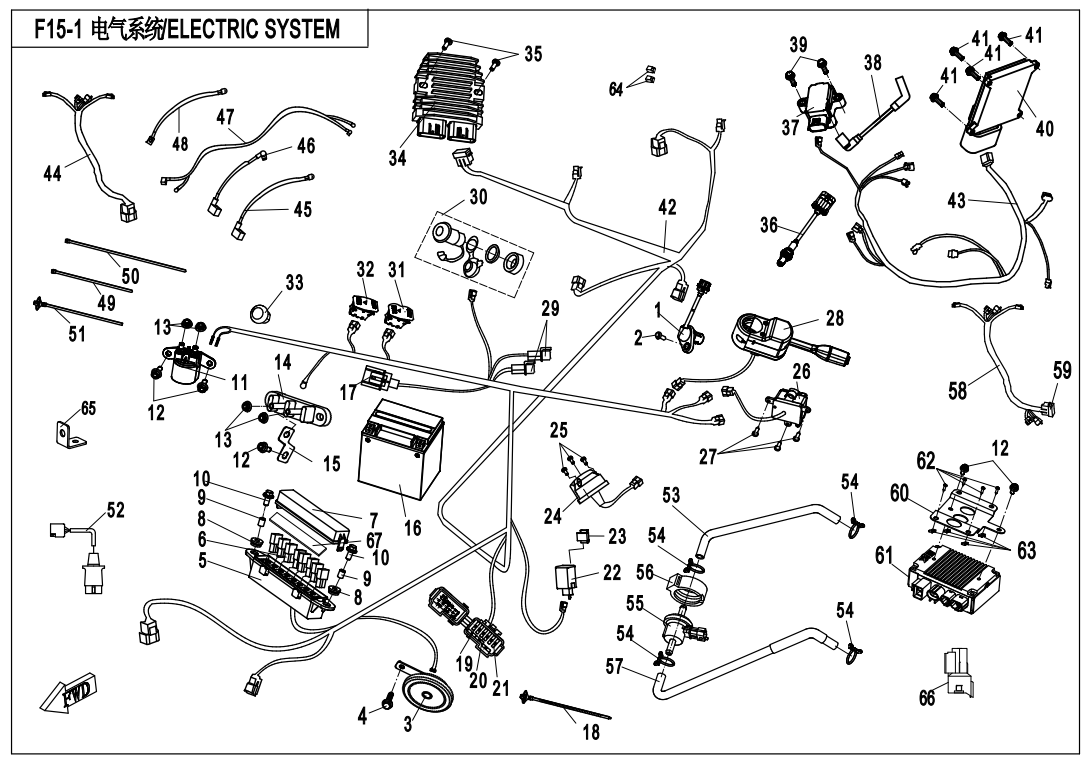

ELECTRIC SYSTEM - F15-1 | 2018, UTV, CF500UU

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 0GR0-011020

Part Name: SPEED SENSOR

Effective: 2021-02-26

Alternative parts:

Price: 35,60 € : 35,60 €

P/N (SKU): 0010-090005-0010

Part Name: BOLT M6x16

Effective: 2021-02-26

Alternative parts:

Specification: M6x16

Price: 0,55 € : 0,55 €

P/N (SKU): 6050-150500

Part Name: ELECTRIC HORN

Effective: 2021-02-26

Alternative parts:

Price: 7,00 € : 7,00 €

P/N (SKU): 30006-080014810

Part Name: BOLT

Effective: 2021-02-26

Alternative parts:

Specification: M8Ã14

Price: 0,55 € : 0,55 €

P/N (SKU): 7020-040411

Part Name: RELAY BOX

Effective: 2021-02-26

Alternative parts:

Price: 7,15 € : 7,15 €

P/N (SKU): 9010-150350

Part Name: AUXILIARY RELAY

Effective: 2021-02-26

Alternative parts:

Price: 6,65 € : 6,65 €

P/N (SKU): 7020-040412

Part Name: COVER, RELAY BOX

Effective: 2021-02-26

Alternative parts: 7020-040412-10000

Price: 6,10 € : 6,10 €

P/N (SKU): 7020-040412-10000

Part Name: COVER,RELAY BOX

Effective: 2021-02-26

Alternative parts:

Price: 3,70 € : 3,70 €

P/N (SKU): 0180-015003

Part Name: RUBBER BUSHING

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

P/N (SKU): 6090-040303

Part Name: BUSHING

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 30006-060016810

Part Name: BOLT

Effective: 2021-02-26

Alternative parts: 30006-060016870

Specification: M6Ã16

Price: 0,55 € : 0,55 €

P/N (SKU): 5270-150500

Part Name: STARTER RELAY

Effective: 2021-02-26

Alternative parts:

Price: 23,30 € : 23,30 €

P/N (SKU): 30006-060012810

Part Name: BOLT

Effective: 2021-02-26

Alternative parts: 30006-060012870

Specification: M6Ã12

Price: 0,55 € : 0,55 €

P/N (SKU): 30202-060110

Part Name: NUT

Effective: 2021-02-26

Alternative parts: 30204-060810

Specification: M6

Price: 0,55 € : 0,55 €

P/N (SKU): 7030-151611

Part Name: TERMINAL, CABLE

Effective: 2021-02-26

Alternative parts:

Price: 2,20 € : 2,20 €

P/N (SKU): 7030-151612

Part Name: GROUND CONNECTOR

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

P/N (SKU): 31023002

Part Name: BATTERY

Effective: 2021-02-26

Alternative parts: 31023004

Specification: YUASA, 12V30Ah

Price: 553,00 € : 553,00 €

P/N (SKU): 31023000

Part Name: BATTERY

Effective: 2021-02-26

Alternative parts: 31023004

Specification: DYNOVOLT, 12V30Ah

Price: 155,00 € : 155,00 €

P/N (SKU): 31023004

Part Name: BATTERY

Effective: 2021-02-26

Alternative parts:

Specification: DYNAVOLT,12V30Ah

Price: 266,90 € : 266,90 €

P/N (SKU): 7020-150111

Part Name: CHIP-TYPE FUSE 30A

Effective: 2021-02-26

Alternative parts:

Specification: 30A

Price: 2,60 € : 2,60 €

P/N (SKU): 7030-150005

Part Name: TIE BAND

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

P/N (SKU): 8080-151301

Part Name: FUSE 5A

Effective: 2021-02-26

Alternative parts:

Specification: 5A

Price: 0,55 € : 0,55 €

P/N (SKU): 806A-151302

Part Name: FUSE 10A

Effective: 2021-02-26

Alternative parts:

Specification: 10A

Price: 1,50 € : 1,50 €

P/N (SKU): 806A-151305

Part Name: FUSE 15A

Effective: 2021-02-26

Alternative parts: 806A-151303

Specification: 15A

Price: 0,55 € : 0,55 €

P/N (SKU): 4020-150340

Part Name: FLASHER

Effective: 2021-02-26

Alternative parts:

Price: 18,30 € : 18,30 €

P/N (SKU): 8010-150002

Part Name: CUSHION WASHER, FLASHER

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 7020-150800

Part Name: POWER SOCKET, TRAILER

Effective: 2021-02-26

Alternative parts:

Specification: ORDINARY

Price: 12,10 € : 12,10 €

P/N (SKU): 7020-150800-1000

Part Name: POWER SOCKET, TRAILER

Effective: 2021-02-26

Alternative parts:

Specification: SUMITOMO PLUG

Price: 20,20 € : 20,20 €

P/N (SKU): 9010-151010-1000

Part Name: POWER SOCKET, TRAILER

Effective: 2021-02-26

Alternative parts:

Specification: LOF

Price: 12,90 € : 12,90 €

P/N (SKU): 30105-050030410

Part Name: SCREW

Effective: 2021-02-26

Alternative parts:

Specification: M5Ã30

Price: 0,55 € : 0,55 €

P/N (SKU): 7030-160700-10000

Part Name: 2WD/4WD SWITCH ASSY

Effective: 2021-02-26

Alternative parts: 7030-160700-10002

Specification: SUMITOMO PLUG

Price: 33,70 € : 33,70 €

P/N (SKU): 7030-160700

Part Name: 2WD/4WD SWITCH ASSY

Effective: 2021-02-26

Alternative parts: 7030-160700-00002

Specification: ORDINARY

Price: 24,60 € : 24,60 €

P/N (SKU): 30110-480160010

Part Name: SELF-TAPPING SCREW

Effective: 2021-02-26

Alternative parts:

Specification: ST4.8Ã16

Price: 0,55 € : 0,55 €

P/N (SKU): 5UR0-160800-10000

Part Name: COMBINATION SWITCH

Effective: 2021-02-26

Alternative parts:

Specification: EURO;SUMITOMO PLUG

Price: 60,40 € : 60,40 €

P/N (SKU): 5UR0-160800

Part Name: COMBINATION SWITCH

Effective: 2021-02-26

Alternative parts:

Specification: EURO

Price: 52,00 € : 52,00 €

P/N (SKU): 7030-160800

Part Name: COMBINATION SWITCH

Effective: 2021-02-26

Alternative parts:

Specification: ORDINARY

Price: 54,00 € : 54,00 €

P/N (SKU): 7030-160800-10000

Part Name: COMBINATION SWITCH

Effective: 2021-02-26

Alternative parts:

Specification: SUMITOMO PLUG

Price: 60,40 € : 60,40 €

P/N (SKU): 6090-150500

Part Name: DIODE, STARTER

Effective: 2021-02-26

Alternative parts:

Price: 2,45 € : 2,45 €

P/N (SKU): 7020-150500-1000

Part Name: OUTPUT SEAT, POWER

Effective: 2021-02-26

Alternative parts:

Specification: SUMITOMO PLUG

Price: 17,30 € : 17,30 €

P/N (SKU): 7020-150500

Part Name: OUTPUT SEAT, POWER

Effective: 2021-02-26

Alternative parts:

Specification: ORDINARY

Price: 15,20 € : 15,20 €

P/N (SKU): 7030-151400

Part Name: OVERRIDING SWITCH

Effective: 2021-02-26

Alternative parts:

Price: 7,35 € : 7,35 €

P/N (SKU): 7030-151600

Part Name: HAZARD SWITCH

Effective: 2021-02-26

Alternative parts:

Price: 8,10 € : 8,10 €

P/N (SKU): 7030-170300

Part Name: BUTTON, CLOCK

Effective: 2021-02-26

Alternative parts:

Specification: WITHOUT WIRE

Price: 9,55 € : 9,55 €

P/N (SKU): 0800-177000

Part Name: REGULATOR

Effective: 2021-02-26

Alternative parts: 0800-177000-10000

Specification: HIGH POWER, JAPANESE

Price: 233,90 € : 233,90 €

P/N (SKU): 01AA-177000

Part Name: REGULATOR

Effective: 2021-02-26

Alternative parts:

Specification: 330W

Price: 102,20 € : 102,20 €

P/N (SKU): 0800-177000-10000

Part Name: REGULATOR

Effective: 2021-02-26

Alternative parts:

Specification: HIGH POWER, CHINESE

Price: 161,70 € : 161,70 €

P/N (SKU): 30006-060030810

Part Name: BOLT

Effective: 2021-02-26

Alternative parts:

Specification: M6Ã30

Price: 0,55 € : 0,55 €

P/N (SKU): 018B-176000

Part Name: OXYGEN SENSOR

Effective: 2021-02-26

Alternative parts:

Price: 109,80 € : 109,80 €

P/N (SKU): 018B-178000

Part Name: IGNITION COIL

Effective: 2021-02-26

Alternative parts:

Price: 35,60 € : 35,60 €

P/N (SKU): 0GRB-178000

Part Name: HIGH-TENSION CABLE

Effective: 2021-02-26

Alternative parts: 0GRB-178000-10000

Price: 15,30 € : 15,30 €

P/N (SKU): 30006-060025810

Part Name: BOLT

Effective: 2021-02-26

Alternative parts:

Specification: M6Ã25

Price: 0,55 € : 0,55 €

P/N (SKU): 0GRB-174000

Part Name: ECU

Effective: 2021-02-26

Alternative parts:

Specification: BOSCH MSE3.0

Price: 185,80 € : 185,80 €

P/N (SKU): 30105-050016410

Part Name: SCREW M5x16

Effective: 2021-02-26

Alternative parts:

Specification: M5x16

Price: 0,55 € : 0,55 €

P/N (SKU): 5UR0-150100-00002

Part Name: MAIN CABLE

Effective: 2021-02-26

Alternative parts:

Specification: EPS

Price: 223,00 € : 223,00 €

P/N (SKU): 5UR0-150100-20000

Part Name: MAIN CABLE

Effective: 2021-02-26

Alternative parts:

Specification: SUMITOMO

Price: 286,70 € : 286,70 €

P/N (SKU): 5UR0-150100-A0000

Part Name: MAIN CABLE

Effective: 2021-02-26

Alternative parts:

Specification: FOR LOF

Price: 234,00 € : 234,00 €

P/N (SKU): 5UR0-150200-10000

Part Name: AUXILIARY CABLE, EFI

Effective: 2021-02-26

Alternative parts:

Specification: SUMITOMO PLUG

Price: 114,40 € : 114,40 €

P/N (SKU): 5UR0-150200-00002

Part Name: AUXILIARY CABLE, EFI

Effective: 2021-02-26

Alternative parts:

Specification: ORDINARY

Price: 83,90 € : 83,90 €

P/N (SKU): 7030-150300

Part Name: AUXILIARY CABLE, TAIL LIGHT

Effective: 2021-02-26

Alternative parts:

Specification: ORDINARY STATE

Price: 18,00 € : 18,00 €

P/N (SKU): 7030-150300-A0000

Part Name: AUXILIARY CABLE, TAIL LIGHT

Effective: 2021-02-26

Alternative parts:

Specification: LOF

Price: 14,70 € : 14,70 €

P/N (SKU): 7030-150300-10000

Part Name: AUXILIARY CABLE, TAIL LIGHT

Effective: 2021-02-26

Alternative parts:

Specification: SUMITOMO PLUG

Price: 42,10 € : 42,10 €

P/N (SKU): 7030-150510

Part Name: POSITIVE CABLE, BATTERY

Effective: 2021-02-26

Alternative parts:

Price: 17,30 € : 17,30 €

P/N (SKU): 7030-150610

Part Name: NEGATIVE CABLE, BATTERY

Effective: 2021-02-26

Alternative parts:

Price: 11,80 € : 11,80 €

P/N (SKU): 7030-150520

Part Name: CABLE, STARTER MOTOR

Effective: 2021-02-26

Alternative parts:

Price: 80,90 € : 80,90 €

P/N (SKU): 7030-150530

Part Name: CABLE, STARTER RELAY

Effective: 2021-02-26

Alternative parts:

Price: 7,70 € : 7,70 €

P/N (SKU): 9010-150004

Part Name: TIE

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 8010-150003

Part Name: TIE

Effective: 2021-02-26

Alternative parts:

Specification: 5x250

Price: 1,25 € : 1,25 €

P/N (SKU): 801F-100101

Part Name: TIE BAND

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

P/N (SKU): 9010-151020

Part Name: ADAPTOR SEAT, TRAILER POWER

Effective: 2021-02-26

Alternative parts:

Price: 13,20 € : 13,20 €

P/N (SKU): 5UR0-000002

Part Name: OUTLET HOSE, IDLE VALVE

Effective: 2021-02-26

Alternative parts:

Price: 5,50 € : 5,50 €

P/N (SKU): 30601-112010

Part Name: CLAMP

Effective: 2021-02-26

Alternative parts:

Specification: A12

Price: 0,55 € : 0,55 €

P/N (SKU): 018B-172000

Part Name: AIR CONTROL VALVE, IDLE

Effective: 2021-02-26

Alternative parts: 6KJB-1550A0

Price: 61,50 € : 61,50 €

P/N (SKU): 901F-000005

Part Name: RUBBER SLEEVE, IDLE VALVE

Effective: 2021-02-26

Alternative parts:

Price: 1,25 € : 1,25 €

P/N (SKU): 5UR0-000001

Part Name: INLET HOSE, IDLE VALVE

Effective: 2021-02-26

Alternative parts:

Price: 7,35 € : 7,35 €

P/N (SKU): 7030-150400

Part Name: EPS CONTROL CABLE

Effective: 2021-02-26

Alternative parts:

Price: 43,20 € : 43,20 €

P/N (SKU): 9CR6-103501

Part Name: FUSE 40A

Effective: 2021-02-26

Alternative parts:

Specification: 40A

Price: 2,60 € : 2,60 €

P/N (SKU): 7030-106001

Part Name: BRACKET, EPS CONTROLLER

Effective: 2021-02-26

Alternative parts:

Price: 3,30 € : 3,30 €

P/N (SKU): 5UR0-150800

Part Name: EPS CONTROLLER

Effective: 2021-02-26

Alternative parts:

Price: 301,40 € : 301,40 €

P/N (SKU): 30110-480130010

Part Name: SELF-TAPPING SCREW

Effective: 2021-02-26

Alternative parts: 30110-481130010

Specification: ST4.8Ã13

Price: 0,95 € : 0,95 €

P/N (SKU): 8010-000002

Part Name: TOOL

Effective: 2021-02-26

Alternative parts:

Specification: ST4.2

Price: 0,55 € : 0,55 €

P/N (SKU): 905B-150103

Part Name: PLUG, PDA

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

P/N (SKU): 7020-038002

Part Name: FUSE BOX BRACKET

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

P/N (SKU): 5UR0-150001

Part Name: HEADLIGHT ADAPTER

Effective: 2021-02-26

Alternative parts:

Specification: CONNECTOR, HEADLIGHT LIGHT

Price: 2,95 € : 2,95 €

P/N (SKU): 7020-040414

Part Name: RUBBER WASHER, RELAY BOX COVER

Effective: 2021-02-26

Alternative parts:

Price: 1,25 € : 1,25 €

You are here

ELECTRIC SYSTEM - F15-1

No.

P/N (SKU)

Part Name

Price

Your price
